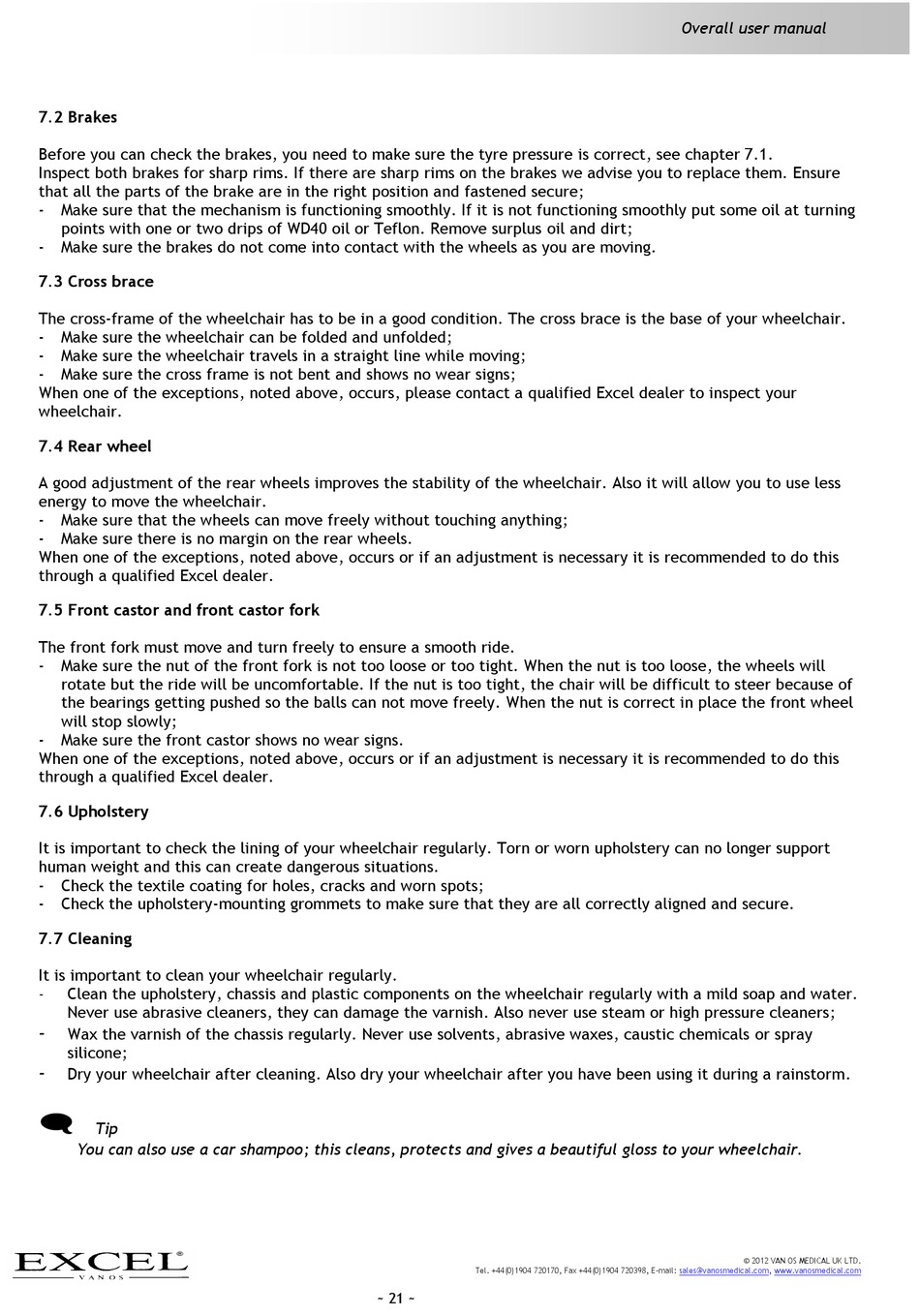

7.2 Brakes

Before you can check the brakes, you need to make sure the tyre pressure is correct, see chapter 7.1.
Inspect both brakes for sharp rims. If there are sharp rims on the brakes we advise you to replace them. Ensure
that all the parts of the brake are in the right position and fastened secure;
- Make sure that the mechanism is functioning smoothly. If it is not functioning smoothly put some oil at turning
points with one or two drips of WD40 oil or Teflon. Remove surplus oil and dirt;
- Make sure the brakes do not come into contact with the wheels as you are moving.

7.3 Cross brace

The cross-frame of the wheelchair has to be in a good condition. The cross brace is the base of your wheelchair.
- Make sure the wheelchair can be folded and unfolded;
- Make sure the wheelchair travels in a straight line while moving;
- Make sure the cross frame is not bent and shows no wear signs;
When one of the exceptions, noted above, occurs, please contact a qualified Excel dealer to inspect your
wheelchair.

7.4 Rear wheel

A good adjustment of the rear wheels improves the stability of the wheelchair. Also it will allow you to use less
energy to move the wheelchair.
- Make sure that the wheels can move freely without touching anything;
- Make sure there is no margin on the rear wheels.
When one of the exceptions, noted above, occurs or if an adjustment is necessary it is recommended to do this
through a qualified Excel dealer.

7.5 Front castor and front castor fork

The front fork must move and turn freely to ensure a smooth ride.
- Make sure the nut of the front fork is not too loose or too tight. When the nut is too loose, the wheels will
rotate but the ride will be uncomfortable. If the nut is too tight, the chair will be difficult to steer because of
the bearings getting pushed so the balls can not move freely. When the nut is correct in place the front wheel
will stop slowly;
- Make sure the front castor shows no wear signs.
When one of the exceptions, noted above, occurs or if an adjustment is necessary it is recommended to do this
through a qualified Excel dealer.

7.6 Upholstery

It is important to check the lining of your wheelchair regularly. Torn or worn upholstery can no longer support
human weight and this can create dangerous situations.
- Check the textile coating for holes, cracks and worn spots;
- Check the upholstery-mounting grommets to make sure that they are all correctly aligned and secure.

7.7 Cleaning

It is important to clean your wheelchair regularly.
- Clean the upholstery, chassis and plastic components on the wheelchair regularly with a mild soap and water.
Never use abrasive cleaners, they can damage the varnish. Also never use steam or high pressure cleaners;
-
Wax the varnish of the chassis regularly. Never use solvents, abrasive waxes, caustic chemicals or spray
silicone;
-
Dry your wheelchair after cleaning. Also dry your wheelchair after you have been using it during a rainstorm.

Tip
You can also use a car shampoo; this cleans, protects and gives a beautiful gloss to your wheelchair.
