5.4 Using the elevating leg rests (optional)

You have the possibility to place an elevating leg rest on your wheelchair instead of a standard leg rest. In this
section you can read how to use an elevating leg rest.
Swinging the elevating leg rest away
- Go to the front of the wheelchair;
- Pull the black button upwards, picture 8;
- You can now swing your elevating leg rest inwards and outwards.
Removing the elevating leg rest from the wheelchair
- Go to the front of the wheelchair;
- Pull the black button upwards, picture 8;
- You can now swing your elevating leg rest inwards and outwards;
- Swing the elevating leg rest 90˚ to the outside of the wheelchair and pull it straight up from the receiving
tube.
Replacing the elevating leg rest back on the wheelchair
- Go to the front of the wheelchair;
- Attach your elevating leg rest back to the frame at an angle of 90°, picture 9;
- Turn the leg rest so that it is parallel with your frame;
- You should hear a click. This click confirms that the leg rest is in position.
Setting height of the elevating leg rest
- Turn the bolt of the elevating leg rest loose, picture 10;
- Select the desired height and retighten the bolt;
- Make sure the comfort leg support is in the desired position.

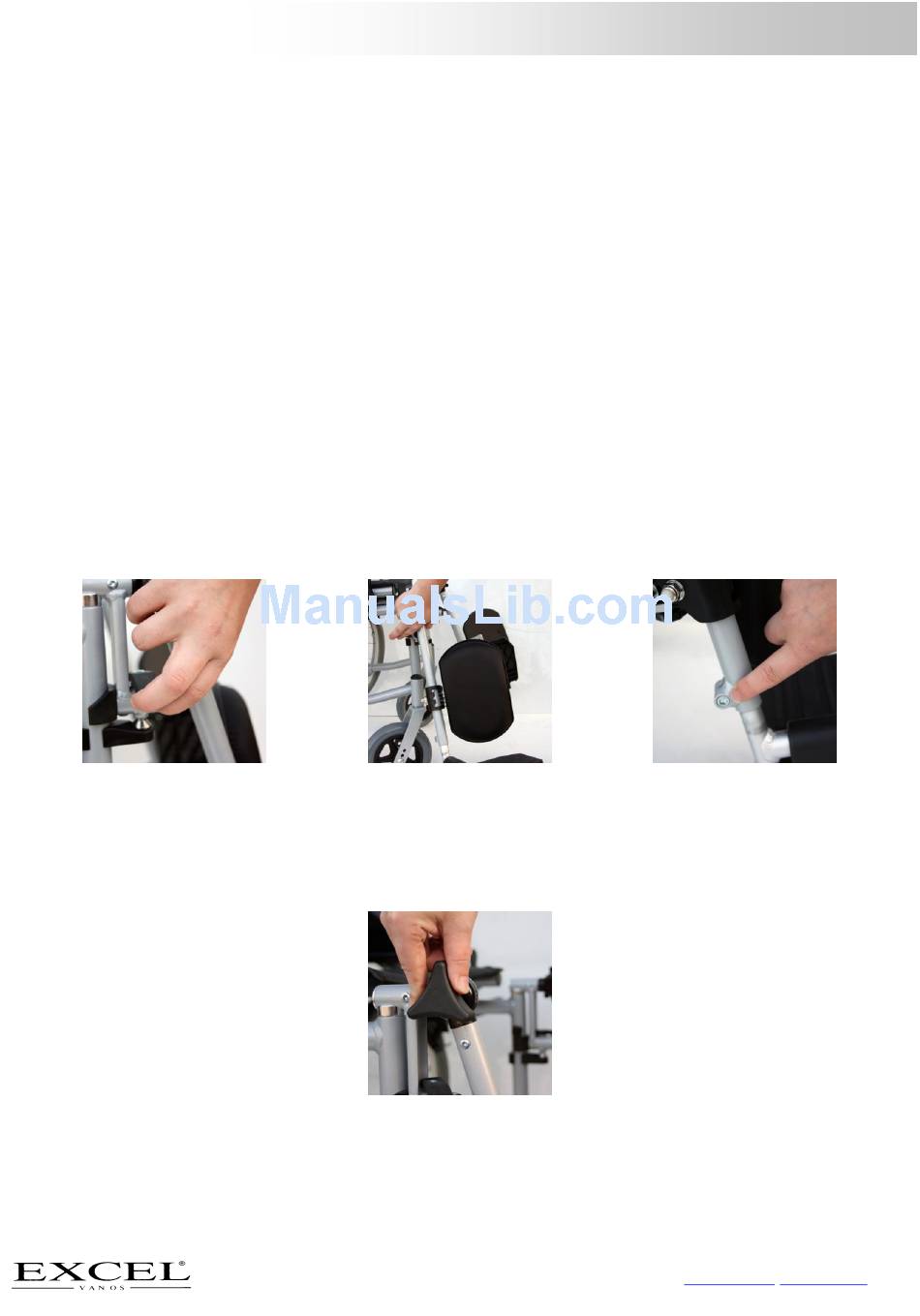

Picture 8
Setting the angle of the elevating leg rest
- Move the control lever with the black button towards the wheelchair. The gas spring in the comfort leg rest
moves up automatically, picture 11;
- If you want the comfort leg rest to move downwards, you control the lever towards the wheelchair to maintain
and support the leg while gently pushing down.
Picture 9
Picture 11
