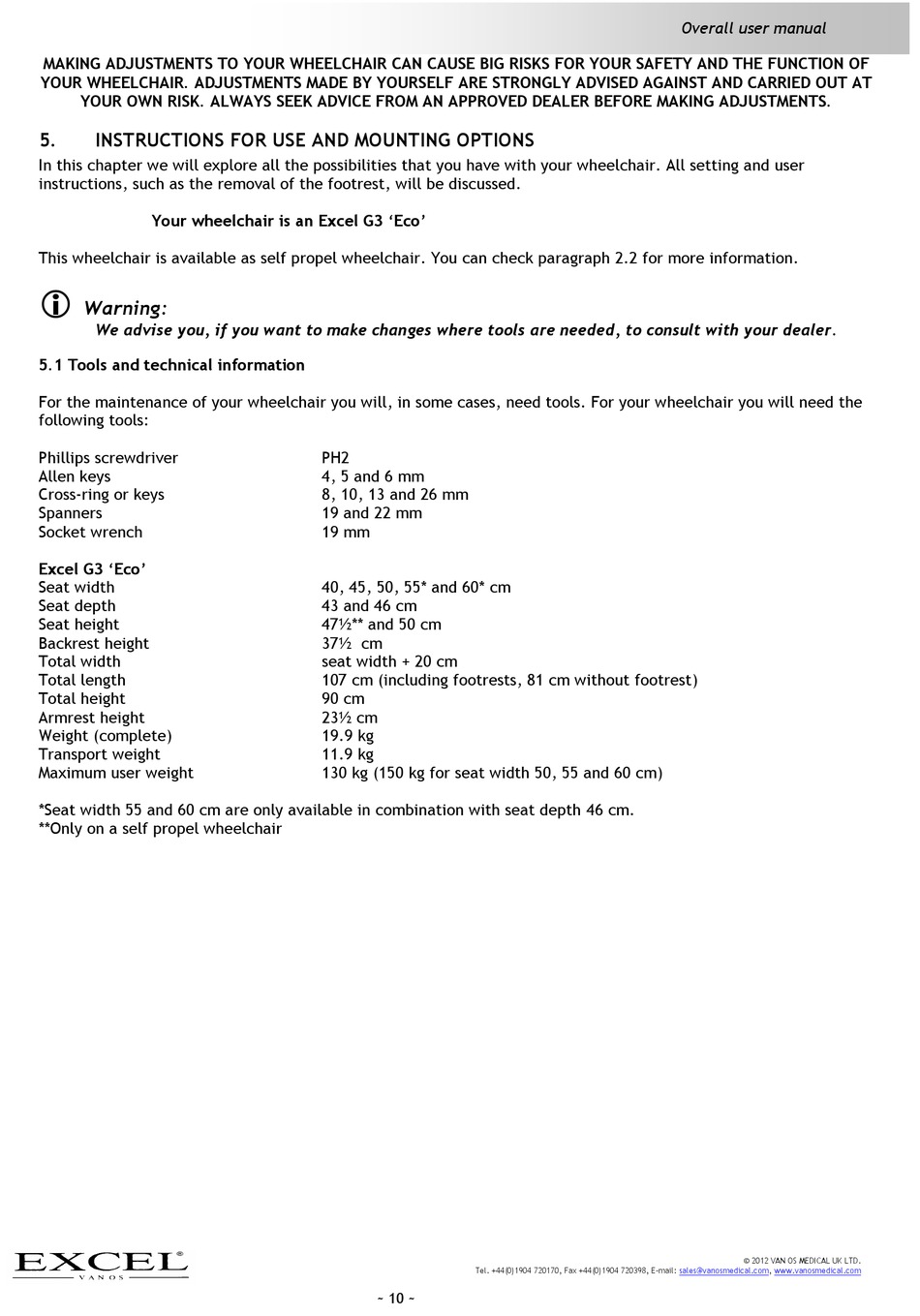

MAKING ADJUSTMENTS TO YOUR WHEELCHAIR CAN CAUSE BIG RISKS FOR YOUR SAFETY AND THE FUNCTION OF
YOUR WHEELCHAIR. ADJUSTMENTS MADE BY YOURSELF ARE STRONGLY ADVISED AGAINST AND CARRIED OUT AT
YOUR OWN RISK. ALWAYS SEEK ADVICE FROM AN APPROVED DEALER BEFORE MAKING ADJUSTMENTS.
5.

INSTRUCTIONS FOR USE AND MOUNTING OPTIONS

In this chapter we will explore all the possibilities that you have with your wheelchair. All setting and user
instructions, such as the removal of the footrest, will be discussed.
Your wheelchair is an Excel G3 'Eco'
This wheelchair is available as self propel wheelchair. You can check paragraph 2.2 for more information.

Warning:
We advise you, if you want to make changes where tools are needed, to consult with your dealer.

5.1 Tools and technical information

For the maintenance of your wheelchair you will, in some cases, need tools. For your wheelchair you will need the
following tools:
Phillips screwdriver
Allen keys
Cross-ring or keys
Spanners
Socket wrench
Excel G3 'Eco'
Seat width
Seat depth
Seat height
Backrest height
Total width
Total length
Total height
Armrest height
Weight (complete)
Transport weight
Maximum user weight
*Seat width 55 and 60 cm are only available in combination with seat depth 46 cm.
**Only on a self propel wheelchair
PH2
4, 5 and 6 mm
8, 10, 13 and 26 mm
19 and 22 mm
19 mm
40, 45, 50, 55* and 60* cm
43 and 46 cm
47½** and 50 cm
37½ cm
seat width + 20 cm
107 cm (including footrests, 81 cm without footrest)
90 cm
23½ cm
19.9 kg
11.9 kg
130 kg (150 kg for seat width 50, 55 and 60 cm)
