9. Crankshaft / Crankcase / Transmission / Kick Starter

Transmission Inspection

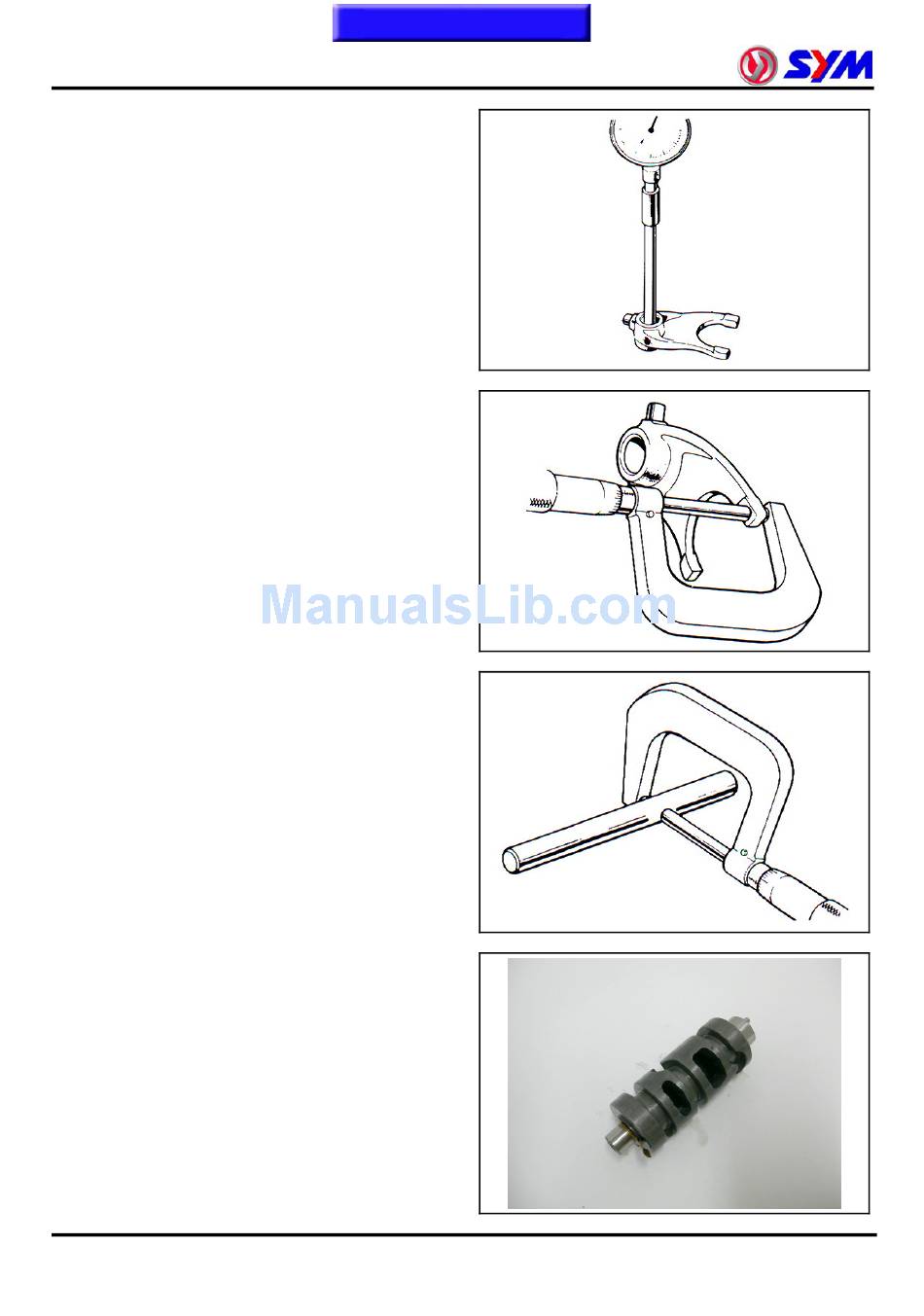

Check if the gear shift fork is worn, bent or
damaged.
Measure the inner diameter of the gear shift
fork.
Service limit：12.05mm
Measure the thickness of the gear shift fork
claws.
Service limit：4.7mm
Measure the outer diameter of the gear shift
fork shaft.
Service limit：11.96mm
Check the gear shift drum for wear or
damage.
9-8
