1. General Information

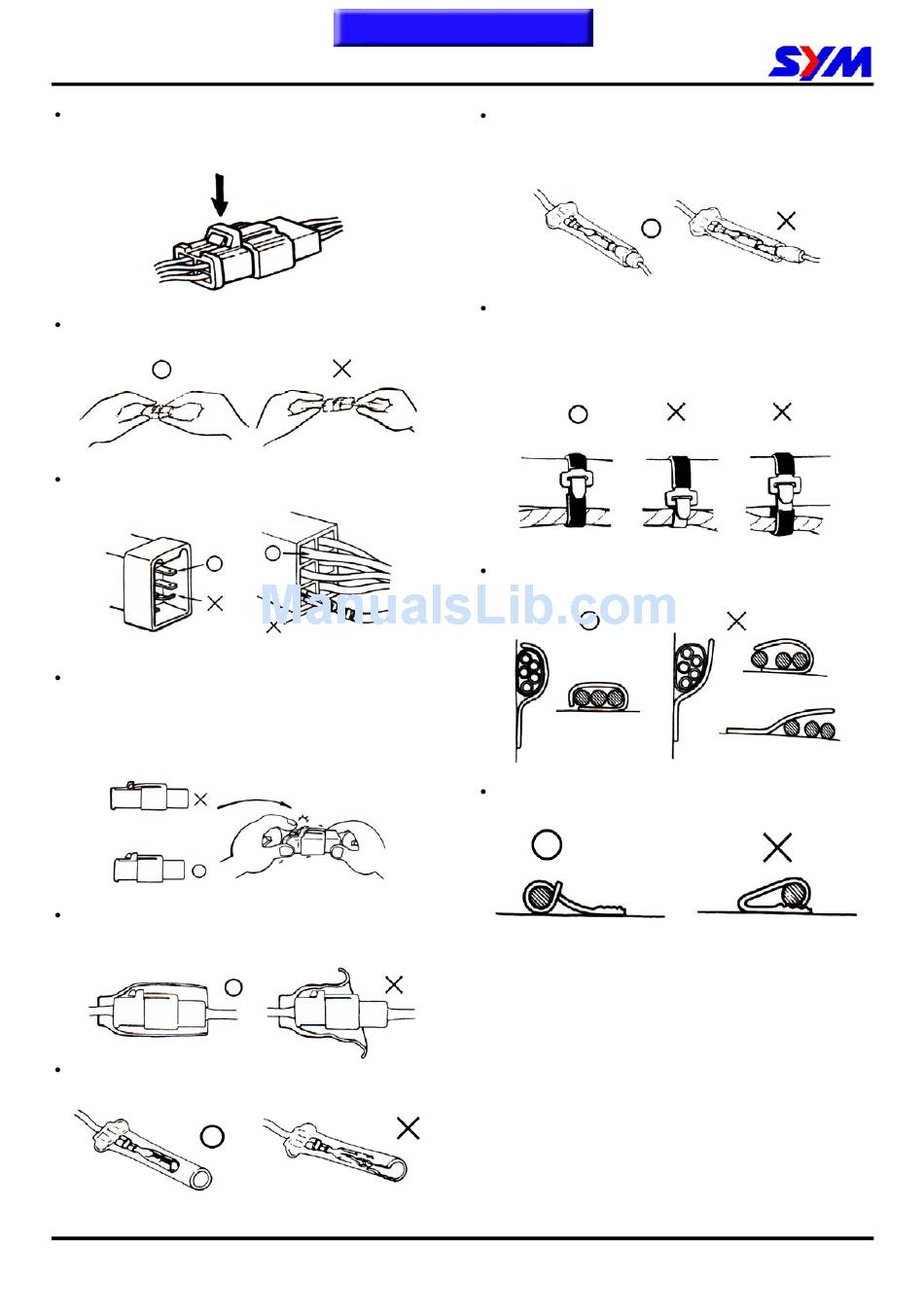

When separating a connector, it locker has to
be unlocked first. Then, conduct the service
operation.
Do not pull the wires as removing a connector
or wires. Hold the connector body.
Make sure if the connector pins are bent,
extruded or loosen.
Insert the connector completely.
If there are two lockers on two connector sides,
make sure the lockers are locked in properly.
Check if any wire loose.
Check if the connector is covered by the twin
connector boot completely and secured
properly.
Before terminal connection, check if the boot is
crack or the terminal is loose.
1-6
To this chapter contents
Insert the terminal completely.
Check if the boot covers the terminal.
Do not let boot open facing up.
Secure wires and wire harnesses to the frame
with respective wire bands at the designated
locations. Tighten the bands so that only the
insulated surfaces contact the wires or wire
harnesses.
Wire band and wire harness have to be
clamped secured properly.
Do not squeeze wires against the weld or its
clamp.
