Camshaft; Valve Rocker Arm - Sym PA12B Service Manual

7. Cylinder Head / Valve

Camshaft

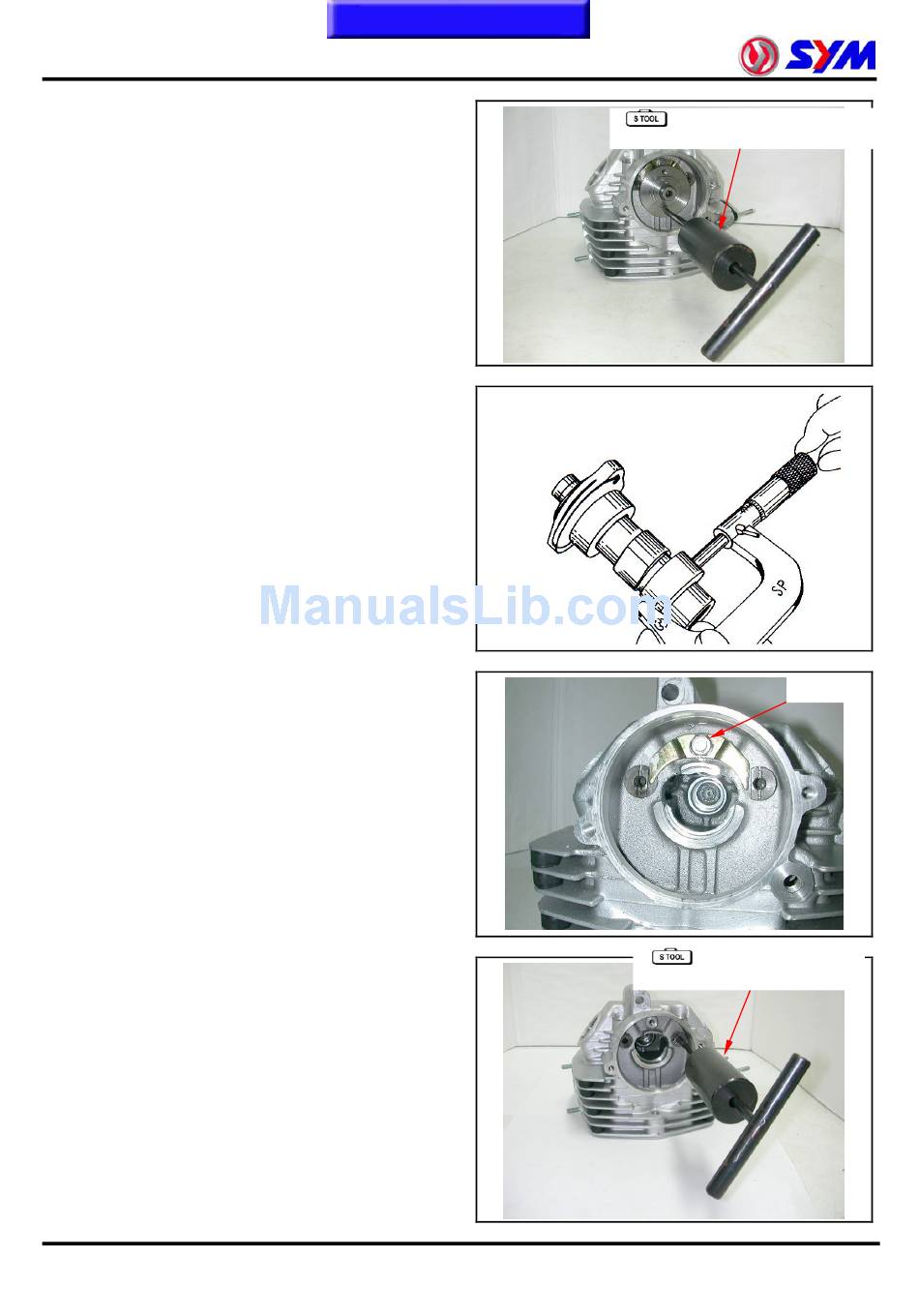

Camshaft Removal
Screw in a 5mm bolt or use the Rocker arm
and camshaft puller to pull out the rocker
arm and the camshaft.
Special tool：
Rocker arm and camshaft puller
SYM-1445100
Camshaft Inspection
Check the camshaft for any wearing or loosen,
also the bearing on the camshaft.
Service Limit：Intake
Exhaust

Valve Rocker Arm

Rocker arm Disassembly
Disassemble the Rocker arm shaft holding
plate (bolt×1)
Use Rocker arm / camshaft puller to pull out
the rocker arm shaft.
Special tool：
Rocker arm and camshaft puller
SYM-1445100
7-6
To this chapter contents
30.8mm
30.02m
Rocker arm and camshaft puller
Bolt ×1
Rocker arm and camshaft
puller
