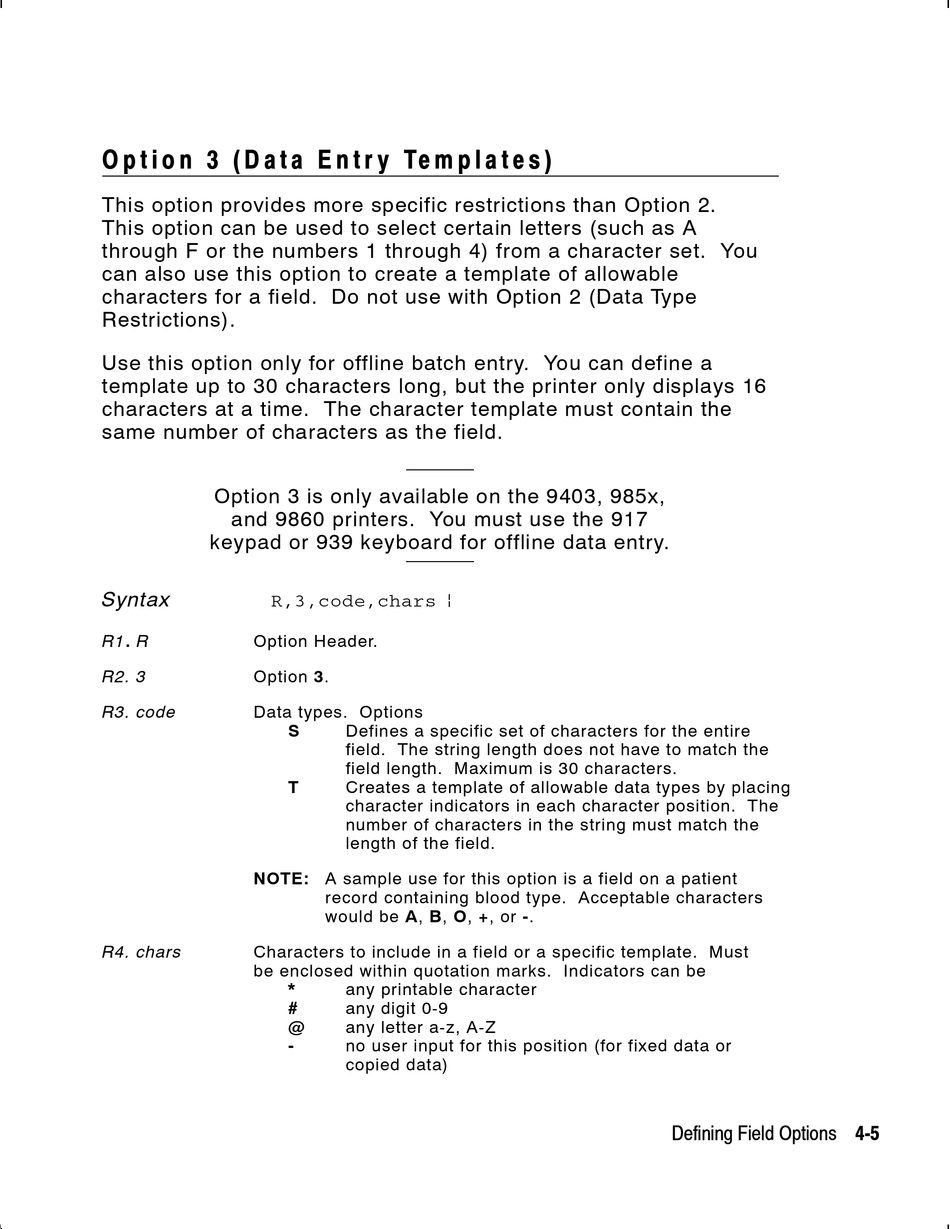

O p t i o n 3 ( D a t a E n t r y Te m p l a t e s )
This option provides more specific restrictions than Option 2.
This option can be used to select certain letters (such as A
through F or the numbers 1 through 4) from a character set. You
can also use this option to create a template of allowable
characters for a field. Do not use with Option 2 (Data Type
Restrictions).
Use this option only for offline batch entry. You can define a
template up to 30 characters long, but the printer only displays 16
characters at a time. The character template must contain the
same number of characters as the field.
Option 3 is only available on the 9403, 985x,
and 9860 printers. You must use the 917
keypad or 939 keyboard for offline data entry.
Syntax
R1. R Option Header.
R2. 3 Option 3.
R3. code Data types. Options
NOTE: A sample use for this option is a field on a patient
R4. chars Characters to include in a field or a specific template. Must
be enclosed within quotation marks. Indicators can be
R,3,code,chars p
S Defines a specific set of characters for the entire
field. The string length does not have to match the
field length. Maximum is 30 characters.
T Creates a template of allowable data types by placing
character indicators in each character position. The
number of characters in the string must match the
length of the field.
record containing blood type. Acceptable characters
would be A, B, O, +, or -.
* any printable character
any digit 0-9
#
@ any letter a-z, A-Z
- no user input for this position (for fixed data or
copied data)
Defining Field Options 4-5
