Part# 07M1058-A
Doc# 058091UA
Revised 10/12/01
An ISO-9001Certified
Company
USER
MANUAL
MODEL 1058
VDSL Modem
SALES OFFICE
(301) 975-1000
TECHNICAL SUPPORT
(301) 975-1007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Model 1058 and is the answer not in the manual?

Questions and answers

Related Manuals for Patton electronics Model 1058

Summary of Contents for Patton electronics Model 1058

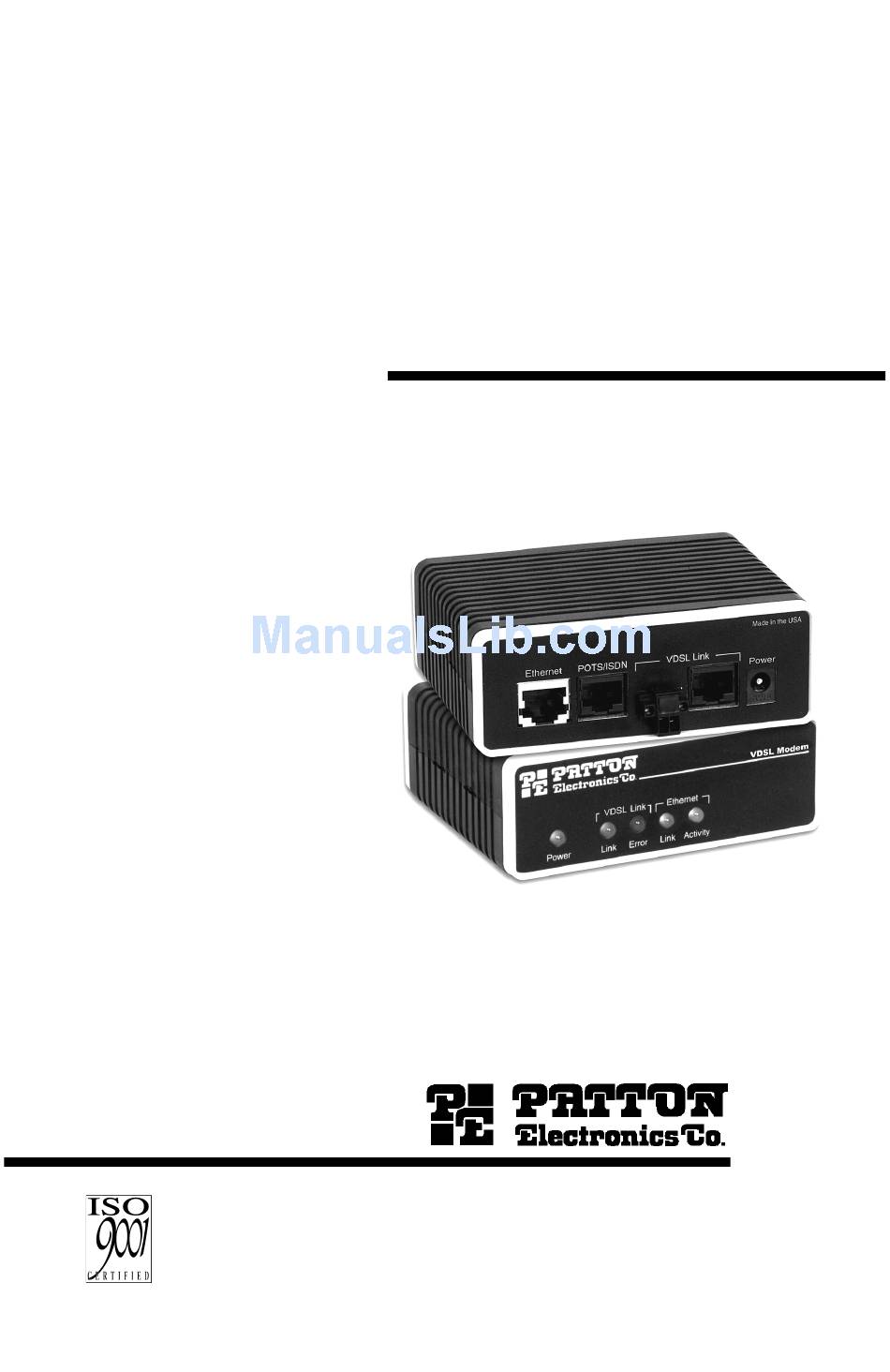

  • Page 1 Part# 07M1058-A Doc# 058091UA Revised 10/12/01 An ISO-9001Certified Company USER MANUAL MODEL 1058 VDSL Modem SALES OFFICE (301) 975-1000 TECHNICAL SUPPORT (301) 975-1007...

  • Page 2: Table Of Contents

    A.9 Temperature Range ...14 A.10 Humidity ...14 A.11 Dimensions ...14 Model 1058 Series Factory Replacement Parts and Accessories... 15 Model 1058 Series Interface Pin Assignment ... 16 C.1 10/100Base-T Interface: ...16 RJ-45 ... 16 C.2 VDSL Interface: ...16 RJ-45 ... 16 Terminal Block...

  • Page 3: Warranty Information

    The Model 1058 has been tested and found to comply with the limits for a Class A computing device in accordance with specifications in Sub- part B of Part 15 of FCC rules, which are designed to provide reasonable protection from such interference in a commercial installation.

  • Page 4: Ce Notice

    1.2 CE NOTICE The CE symbol on your Patton Electronics equipment indicates that it is in compliance with the Electromagnetic Compatibility (EMC) directive and the Low Voltage Directive (LVD) of the European Union (EU). A Cer- tificate of Compliance is available by contacting Technical Support. This device is not intended to be connected to the public telephone network.

  • Page 5: General Information

    PC’s, or any other network enabled 10/100Base-T device. Operating in pairs with a Model 1058/CO (central office) located at one end of the LAN extension and a Model 1058/CP (customer premise) at the other end, these units can automatically forward LAN broadcasts, multi- casts, and frames across a 2-wire twisted pair link.
  • Page 6 Figure 1. Typical application The 1058DV/CO and 1058DV/CP work together to create a transparent extension between two peered Ethernet LANs. POTS/ISDN calls can be made over the VDSL link without interfering with the data. Figure 1 shows a typical point-to-point application.

  • Page 7: Installation

    Because the Model 1058 requires no configuration, it can be installed and made operational quickly. Installation takes place as follows: 1. Connecting the line interface between the units (refer to section 3.1, “Connecting the Twisted-Pair Line Interface” on page 7) Note See Figure 2 for the rear panel arrangements.
  • Page 8 Follow the steps below to connect the Model 1058 VDSL Interfaces. Note The Model 1058 units work in pairs. One of the units must be a Model 1058/CO (Central Office), and the other unit must be a Model 1058/CP (Customer Premise). It does not matter which end is the 1058/CO and which is the 1058/CP.

  • Page 9: Connecting The 10/100Base-T Ethernet Interface

    Figure 5. Model 1058 10/100Base-T RJ-45 Connector Pinout. Connecting the 10/100Base-T Ethernet Port to a Hub The Model 1058 10/100Base-T interface is configured as DTE (Data Ter- minal Equipment), just like a 10/100Base-T network interface card in a PC. Therefore, it "expects" to connect to a 10/100Base-T Hub using a...

  • Page 10: Connecting The 10/100Base-T Ethernet Port To A Pc (Dte)

    2 (TX-)---------------------------------------------------2 (RX-) 3 (RX+)--------------------------------------------------3 (TX+) 6 (RX-)---------------------------------------------------6 (TX-) Figure 6. Wiring diagram for connecting the Model 1058 to a 10/100Base-T hub Connecting the 10/100Base-T Ethernet Port to a PC (DTE) The Model 1058 10/100Base-T interface is configured as DTE (Data Ter- minal Equipment).

  • Page 11: Connecting Power

    3.4 CONNECTING POWER An external AC or DC power supply is available separately. This connec- tion is made via the barrel jack on the rear panel of the Model 1058. No configuration is necessary for the power supply (See Appendix B for domestic and international power supply and cord options).

  • Page 12: Operation

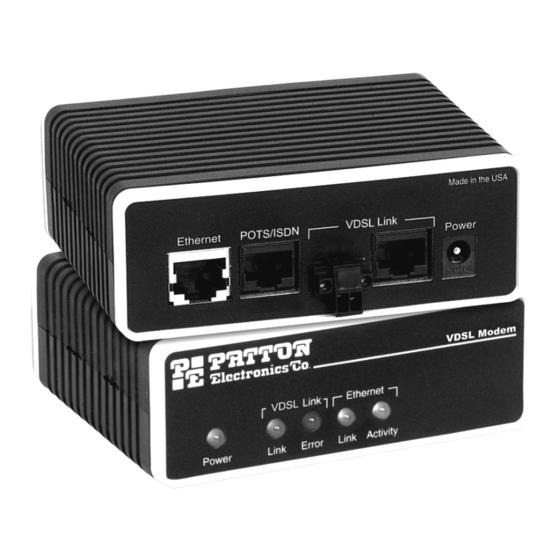

    4.2 FRONT PANEL LED STATUS MONITORS The Model 1058 features five front panel LEDs that monitor power, the Ethernet signals, and the VDSL Connection. Figure 9 shows the front panel location of each LED. Table 1 on page 13 describes the LED func- tions.
  • Page 13 VDSL link. Ethernet Link (Active Green) Solid Green indicates that 10/ 100Base-T Ethernet link has been established. Ethernet Activity (Active Yellow) Flashes yellow to indicate Ethernet activity on the Model 1058's 10/100Base-T Ethernet port. Table 1: Front panel LED description Description...

  • Page 14: Specifications

    APPENDIX A SPECIFICATIONS A.1 LAN CONNECTION • Shielded RJ-45, 10/100Base-T, IEEE 802.3 Ethernet • VDSL Connection: RJ-45 and Terminal Block A.2 TRANSMISSION LINE Two-wire unconditioned twisted pair A.3 VDSL LINE RATE 12.5 Mbps, symmetric upstream/downstream. A.4 ACTUAL DATA RATE 10 Mbps, symmetric upstream/downstream. A.5 VDSL DISTANCE 4,000 ft (1,219 m) A.6 VDSL SURGE SUPPRESSOR...

  • Page 15: B Model 1058 Series Factory

    CO VDSL Modem, data only, no power supply CP VDSL Modem, data only, no power supply VDSL MODEM Kit: includes one central office (CO) and one customer premise (CP) Model 1058, data only, no power supply CO VDSL Modem, voice & data, no power supply CP VDSL Modem, voice &...

  • Page 16: Rj-45

    APPENDIX C MODEL 1058 SERIES INTERFACE PIN ASSIGNMENT C.1 10/100BASE-T INTERFACE: RJ-45 • Pin 1: TX+ • Pin 2: TX- • Pin 3: RX+ • Pin 6: RX- • Pins 4, 5, 7, 8: no connection C.2 VDSL INTERFACE: RJ-45 •...
