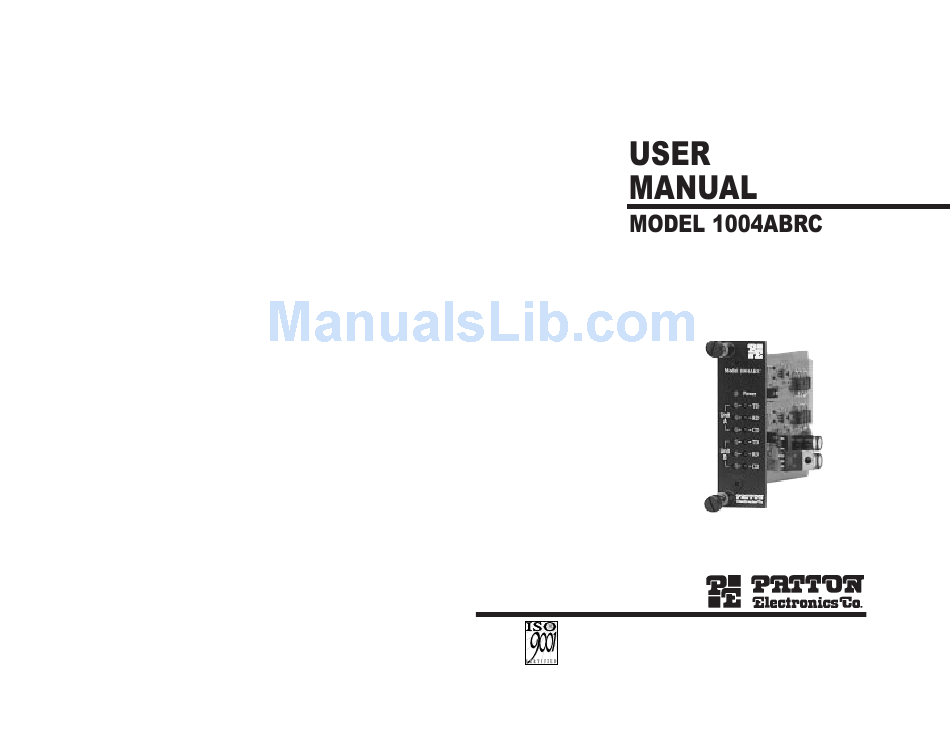

- Page 1 High Speed, Multipoint Short Range Modem: Rack Mount Card SALES OFFICE Part# 07M1004ABRC-A Doc# 047053UA (301) 975-1000 Revised 09/02/99 TECHNICAL SUPPORT C E R T I F I E D (301) 975-1007 http://www.patton.com An ISO-9001 Certified Company...
-
Page 2: Table Of Contents
The Model 1004ABRC has been tested and found to comply with the limits for a Class A computing device in accor-... -
Page 3: Ce Notice
The Model 1004ABRC can handle up to 50 terminal drops in a multipoint polling environment. Using transitions on the data line to handle line contention, the Model 1004ABRC can be used in environ- ments that need multi-port bus contention, but do not have control sig- nals such as RTS or DTR. -
Page 4: Configuration
Figure 1. Model 1004ABRC Card, showing location of configuration switches. Each of the DIP switches on the Model 1004ABRC function card is a 4-position switch. Figure 2 (below) shows the On/Off orientation of these switches. Use a small screw driver or similar instrument to set each individual switch. -
Page 5: Switch Setting - Modem B
The “intermediate” setting is useful in half-duplex environments where the receiving device does not respond well to the “high” setting. S2-3 and S2-4: 2-wire/4-wire Modes Model 1004ABRC is in 2-wire or 4-wire operating mode. Note: 2-wire mode is half-duplex only. 3.1.2 SWITCH SETTINGS - MODEM “B”... - Page 6 High (16K Ohm typical) S3-2: RTS/CTS Delay The setting for switch S3-2 determines the amount of delay between the time the Model 1004ABRC “sees” RTS and when it turns on CTS. Note: RTS/CTS Delay setting should be based upon trans- mission timing.
-
Page 7: Rear Card Configuration
3.2 REAR CARD CONFIGURATION The Model 1004ABRC has two interface card options: the 1Q11 (which comes equipped with two RJ-11 ports and two RJ-45 ports) and the 1Q45 (which comes equipped with four RJ-45 ports). Figure 3 (below) illustrates these two different rear interface options. -
Page 8: Installation
DTE as DSR or RI (JB6 & JB7) Because this rear card is designed to function in more applications than the Model 1004ABRC, this jumper must be installed only in one position. Place the jumper across pins 1&2 so that the terminal (DTE) sees DSR as high when the DTE raises DTR. -
Page 9: Installing The Model 1004Abrc Into The Chassis
4.2 INSTALLING THE MODEL 1004ABRC INTO THE CHASSIS The Model 1004ABRC is comprised of a front card and a rear card. The two cards meet inside the rack chassis and plug into each other by way of mating 50 pin card edge connectors. Use the following... -
Page 10: Multipoint Twisted Pair Connection
Call Patton Technical Support for specific distance estimates. The diagram below shows how to wire the two-pair cables properly for a Model 1004ABRC star topolo- SIGNAL gy. Note that the ground connection is not needed. -
Page 11: Operation
LED lights when the receive carrier is absent. 5.2 POWER-UP There is no power switch on the Model 1004ABRC: Power is auto- matically applied to the 1004ABRC when its card-edge connector touches the chassis’ mid-plane socket, or when the chassis’ power is turned on. -
Page 12: Appendix B - Cable Recommendations
APPENDIX B PATTON ELECTRONICS MODEL 1004ABRC CABLE RECOMMENDATIONS The Patton Model 1004ABRC operates at frequencies of 115kHz or less and has been performance tested by Patton technicians using twisted-pair cable with the following characteristics: Wire Gauge Capacitance 19 AWG 83nf/mi or 15.72 pf/ft. -
Page 13: Appendix D - Interface Pin Assignments
APPENDIX D PATTON ELECTRONICS MODEL 1004ABRC INTERFACE PIN ASSIGNMENTS PATTON MODULAR INTERFACE - 10 Wire RJ-45 Contact Number Circuit Description Not Used Received Line Signal Indicator (CD) 108 / 2 DTE Ready (DTR) Signal Common Received Data Transmitted Data Clear to Send...
