Part# 07M1068-UM
Doc# 05816U2-001
Rev. A
Revised 10/17/06
An ISO-9001Certified
Company
USER
MANUAL
VLINK MODEM
Model 1068 and 1058
SALES OFFICE
(301) 975-1000
TECHNICAL SUPPORT
(301) 975-1007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1068 and is the answer not in the manual?

Questions and answers

Related Manuals for Patton electronics 1068

Summary of Contents for Patton electronics 1068

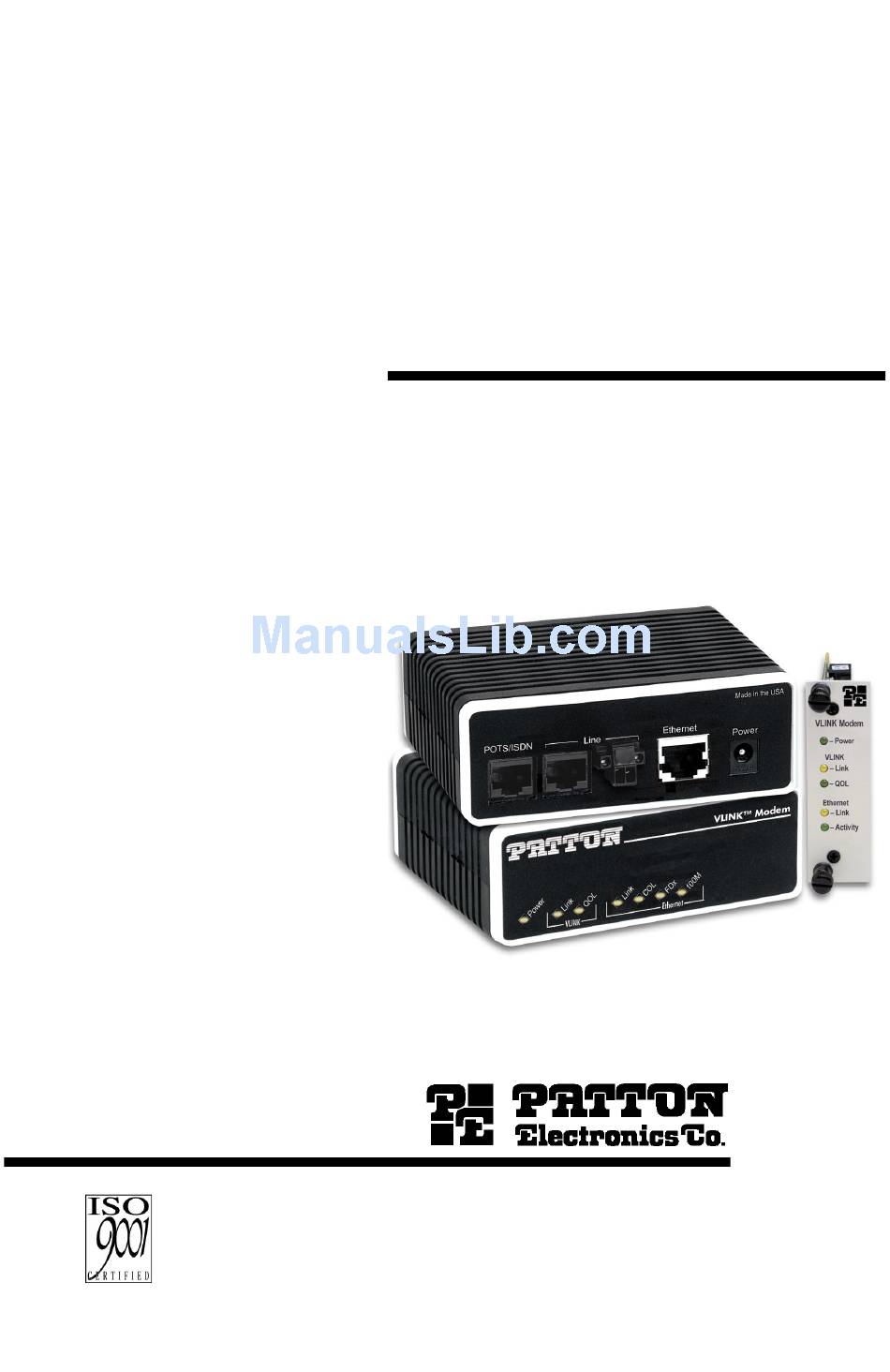

  • Page 1 Part# 07M1068-UM Doc# 05816U2-001 Rev. A Revised 10/17/06 An ISO-9001Certified Company USER MANUAL VLINK MODEM Model 1068 and 1058 SALES OFFICE (301) 975-1000 TECHNICAL SUPPORT (301) 975-1007...

  • Page 2: Table Of Contents

    A.7 Power Supply ... 20 A.8 Temperature Range ... 21 A.9 Humidity ... 21 A.10 Dimensions ... 21 MODEL 1068 series Factory Replacement Parts and Accessories... 22 VLINK Series Interface Pin Assignment ... 24 C.1 10/100Base-T Interface ... 24 RJ-45 ... 24 C.2 VDSL Interface ...
  • Page 3 Terminal Block (1068DV/TB45 Only) ... 24 C.3 POTS/ISDN Interface ... 24 RJ-45 ... 24 Distance Chart, Based on 24 AWG (0.5 MM) ... 25...

  • Page 4: Warranty Information

    1.0 WARRANTY INFORMATION Patton Electronics warrants all VLINK modem components to be free from defects, and will—at our option—repair or replace the product should it fail within one year from the first date of the shipment. This warranty is limited to defects in workmanship or materials, and does not cover customer damage, abuse or unauthorized modification.

  • Page 5: Service

    The safety advice in the documentation accompanying this product shall be obeyed. The conformity to the above directive is indicated by the CE sign on the device. This device is NOT intended nor approved for connec- tion to the PSTN. It is intended only for connection to customer premise equipment.

  • Page 6: General Information

    The Interconnecting cables shall be acceptable for external use and shall be rated for the proper applica- tion with respect to voltage, current, anticipated tem- perature, flammability, and mechanical serviceability WARNING In accordance with the requirements of council direc- tive 2002/96/EC on Waste of Electrical and Electronic Equipment (WEEE), ensure that at end-of-life you sepa- rate this product from other waste and scrap and deliver to the WEEE collection system in your country for recy-...

  • Page 7: Description

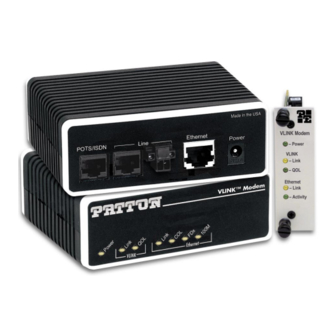

    • Available in rack-mount or standalone configurations • Made in the USA 2.2 DESCRIPTION The Patton Electronics VLINK/CO and VLINK/CP VDSL modems provide high-speed LAN connections between peered Ethernet LANs, remote PCs, or any other network enabled 10/100Base-T device. Operating in pairs, a VLINK/CO (central office) located at one end of the LAN extension and a VLINK/CP (customer premise) at the other end, these units can automatically forward LAN broadcasts, multicasts, and frames across a 2-wire voice-grade twisted-pair link.
