Summary of Contents for Patton electronics 1050patton
-

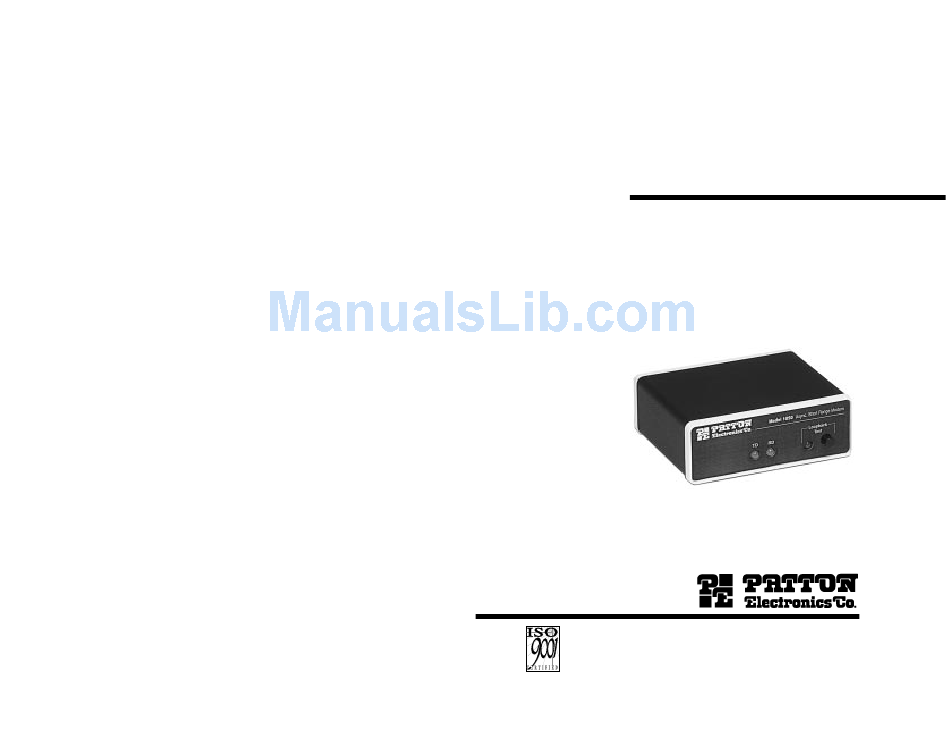

Page 1: User Manual
USER MANUAL MODEL 1050 AC Powered, Asynchronous Short Range Modem SALES OFFICE Part #07M1050-B Doc. #058031B (301) 975-1000 Revised 7/30/97 TECHNICAL SUPPORT C E R T I F I E D (301) 975-1007 An ISO-9001 http://www.patton.com Certified Company... -
Page 2: Warranty Information
1.0 WARRANTY INFORMATION Patton Electronics warrants all Model 1050 components to be free from defects, and will—at our option—repair or replace the product should it fail within one year from the first date of shipment. This warranty is limited to defects in workmanship or materials, and does not cover customer damage, abuse or unauthorized modification. -
Page 3: General Information
2.0 GENERAL INFORMATION Thank you for your purchase of this Patton Electronics product. This product has been thoroughly inspected and tested and is warranted for One Year parts and labor. If any questions or problems arise during installation or use of this product, please do not hesitate to contact Patton Electronics Technical Support at (301) 975-1007. -
Page 4: Installation
3.2 SETTING THE DCE/DTE SWITCH Correct setting of the DCE/DTE switch eliminates the need for RS- 232 crossover cables. If the RS-232 device you are connecting to the Model 1050 is a PC, terminal or host, or is wired like one, set the DCE/DTE switch to "DCE". - Page 5 4.1.2 TWISTED PAIR CONNECTION USING RJ-11 If your two-pair cable is terminated in an RJ-11 plug, you may use the RJ-11 jack in the back of the Model 1050 to make the connection. The RJ-11 jack on a Model 1050 series Short Range Modem is prewired for a standard TELCO wiring environment.
-
Page 6: Operation
4.2.2 STAR TOPOLOGY Using a star topology, you may connect several Model 1050s together in a master/slave arrangement. Maximum distance between the units will vary based upon the number of drops, data rate, wire gauge, etc. Call Patton Technical Support for specific distance estimates. - Page 7 5.2.2 REMOTE ANALOG LOOP The second test mode is Remote Analog Loop. To enter this mode, set one of the Model 1050s (local) in test mode by depressing the "Loopback Test" switch. Any characters sent from the remote 1050 will be returned to it (see Figure 5). If no characters are echoed back, check the wiring between the two Model 1050s.
- Page 8 APPENDIX B PATTON MODEL 1050 CABLE RECOMMENDATIONS All Patton Electronics Company Short Range Modems are tested to the distances published in our Catalogs and Specification Sheets on twisted-pair cable with the following characteristics: Wire Gauge Capacitance 19 AWG(.9mm) 83nF/mi or 15.72 pF/ft. 22 AWG(.6mm) 83nF/mi or 15.72 pF/ft.
- Page 9 APPENDIX D PATTON MODEL 1050 BLOCK DIAGRAM Copyright © 1997 Patton Electronics Company All Rights Reserved Dear Valued Customer, Thank you for purchasing Patton Electronics products! We do appreciate your business. I trust that you find this user manual helpful. We manufacture one of the widest selections of data communications products in the world including CSU/DSU's, network termination units, powered and self-powered short range modems, fiber optic modems, interface...
