Patton electronics 1088/K User Manual

Mdsl modem with fixed g.703/g.704 interface
Hide thumbs Also See for 1088/K:
Table of Contents

Advertisement

Quick Links

Download this manual

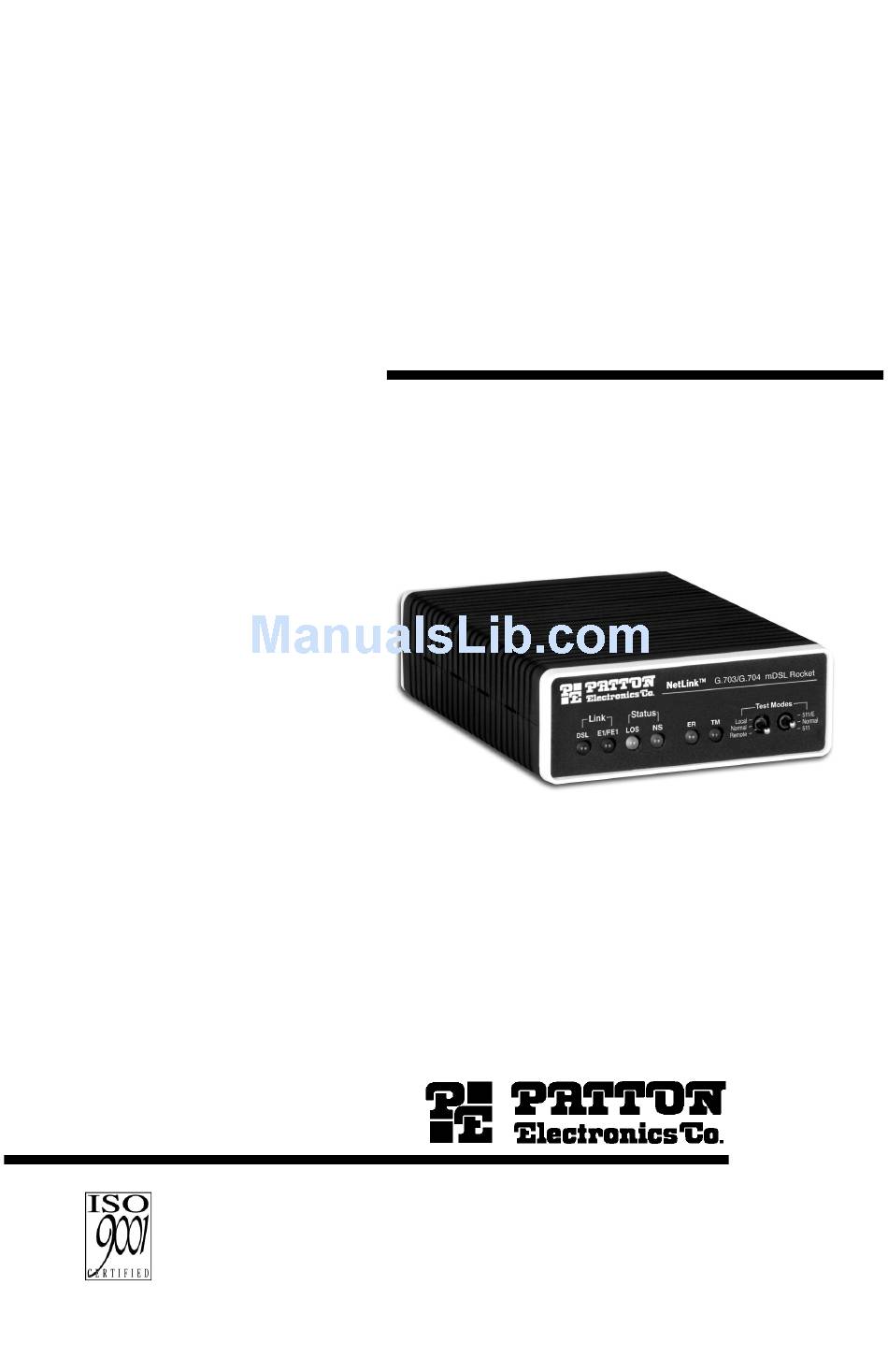

Part# 07M1088K-UM
Doc# 03314U2-001
Rev. E
Revised 11/6/06
An ISO-9001Certified
Company
USER
MANUAL
MODEL 1088/K
mDSL Modem With Fixed
G.703/G.704 Interface
SALES OFFICE
(301) 975-1000
TECHNICAL SUPPORT
(301) 975-1007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1088/K and is the answer not in the manual?

Questions and answers

Related Manuals for Patton electronics 1088/K

Summary of Contents for Patton electronics 1088/K

  • Page 1 Part# 07M1088K-UM Doc# 03314U2-001 Rev. E Revised 11/6/06 An ISO-9001Certified Company USER MANUAL MODEL 1088/K mDSL Modem With Fixed G.703/G.704 Interface SALES OFFICE (301) 975-1000 TECHNICAL SUPPORT (301) 975-1007...

  • Page 2: Table Of Contents

    CONTENTS Warranty Information ... 4 Radio and TV Interference... 4 CE Notice... 4 Service... 5 General Information... 6 Features... 6 Description... 6 Installation... 7 Configuring the Hardware DIP Switches ... 7 Configuration DIP Switch Set “S1” ... 8 Switch S1-1: CO/CP ... 8 CO/CP Configuration ...
  • Page 3 A.12 Line rate ... 27 A.13 Line coding ... 27 A.14 Line Framing ... 27 A.15 Isolation ... 27 A.16 Physical Connection ... 27 Factory Replacement Parts and Accessories... 28 Transmission Distance Chart ... 29 Model 1088/K LED Descriptions... 30...

  • Page 4: Warranty Information

    1.0 WARRANTY INFORMATION Patton Electronics warrants all Model 1088 components to be free from defects, and will—at our option—repair or replace the product should it fail within one year from the first date of shipment. This warranty is limited to defects in workmanship or materials, and does not cover customer damage, abuse or unauthorized modification.

  • Page 5: Service

    1.3 SERVICE All warranty and non-warranty repairs must be returned freight prepaid and insured to Patton Electronics. All returns must have a Return Materi- als Authorization number on the outside of the shipping container. This number may be obtained from Patton Electronics Technical Services at: •...

  • Page 6: General Information

    G.703/G.704 service or provide a remote serial connection to a router or switch when paired with Model 1088/C (V.35) or 1088/D (X.21). As Model 1088/K receives data from E1 line, it extracts the E1 clock, and delivers smooth clock and data to the remote DSL modem over a two-wire network extension application DSL span.

  • Page 7: Installation

    Figure 1. Underside of Model 1088/K showing location of DIP switches The two sets of DIP switches on the underside of the Model 1088/K will be referred to as S1 and S2. As Figure 2 shows, the orientation of all DIP switches is the same with respect to “ON”...

  • Page 8: Configuration Dip Switch Set "S1

    S1-1 CP = located at the Customer Premises CO/CP Configuration. The Model 1088/K does not use clock mode set- tings as described in other Patton mDSL products. Instead, the Model 1088/K will always recover the clocking from the G.703/4 network and use this clock to send data across the DSL span to the remote DSL modem, which will use the incoming to send data out to G.703/4 net-...

  • Page 9: Switch S1-2: Line Coding

    When connecting a 1088/K to an mDSL modem (e.g. Model 1088/C, 1088/D or 1095) other then a Model 1088/K, determine the source of the system clock and then determine the Model 1088/Ks CO/CP designation based upon the following chart.

  • Page 10: Switch S1-3: Crc-4 Multiframe

    CRC-4 multi-frame protocol. Note When the DTE rate is set to 2048 Kbps, Model 1088/K transmits user data on all 32 timeslots, ignoring framing information. In this case, Switch S1-3 will need to be in the disabled (Off) position.

  • Page 11: Switch S2-1: Dte Rate

    S2-1 S2-2 S2-3 Note Based on the DTE rate chosen, the Model 1088/K will automati- cally select the optimum line rate for the distance. This selection is based on the lowest line rate that will support the DTE rate. S2-4...

  • Page 12: Switch S2-7: Reset Software Defaults

    Switch S2-7: Reset Software Defaults. Switch S3-7 allows the user to reset the software configured factory defaults. This will only be needed when using the Model 1001MC to SNMP manage your units. For more information, please refer to the Model 1001MC Operations Manual. Switch S2-8: Transmit Data (TD) Sampling Point.
  • Page 13 • Set the Model 1088 (CP) to “NetLink Plug-and-Play CP” by setting S1 and S2 DIP switches in the ON position as described in Figure 3. 1095RC 1088 DSL Span (CO) (CP) DIP Switches all in ON position DIP Switches or NMS configured according to specific application requirements Figure 3.

  • Page 14: Installation

    4.1 CONNECT G.703 NETWORK The Power, G.703/G.704 and DSL Line connections are located on the rear panel of the Model 1088/K. Figure 4 shows the location of each of these ports. Power 4.2 JUMPER CONFIGURATION The Model 1088/K has four jumpers (two position headers): JP1, JP4, JP5, and JP6.

  • Page 15: Connect Twisted Pair (120 Ohm) To G.703 Network

    Shield Shield Connect Dual Coaxial Cable (75 ohm) to G.703 Network The Model 1088/K is also equipped with dual female BNCs (TX and RX) for connection to a 75 ohm dual coax G.703 network interface. If your (RX) Receive (Ring)

  • Page 16: Connect Twisted-Pair Dsl Interface

    The outer conductor of the coax cables are isolated from system earth ground. 4.3 CONNECT TWISTED-PAIR DSL INTERFACE The Model 1088/K supports communication between two DTE devices at distances to 5 miles (8 km) over 24 AWG (.5 mm) twisted pair wire. Two things are essential: •...

  • Page 17: Power Connection

    4.4 POWER CONNECTION Universal AC Power (100–240 VAC) The Model 1088 uses a 5 VDC, 2 A universal input 100–240 VAC, power supply (center pin is +5V). The universal input power supply has a male IEC-320 power entry connector. This power supply connects to the Model 1088 by means of a barrel jack on the rear panel.

  • Page 18: Operation

    DTE signals, network connection and test modes. Figure 10 shows the front panel location of each LED. Following Figure 10 is a description of each LEDs function. See also APPENDIX E. Figure 10. Model 1088/K Front Panel DSL LInk (Active Green) Solid green (On) indicates that the end to end DSL Framer Link is up, signifying that the link across the DSL span is active.

  • Page 19: Test Modes

    DTE Rate is set to an unsupported settings (Active Yellow) glows yellow to indicate that the Model 1088/K has been placed in Test Mode. The unit can be placed in test mode by the local user or by the remote user. The TM LED will flash for 400 msec when a valid packet is received from the Model 1001MC.
  • Page 20 is made (cable disconnect, poor cable quality, etc). In normal Data Mode, if the box receives 4 seconds of unframed packets it will restart the box and begin trying to re-establish a connection with the far end. The distinction between framed packets and unframed packets becomes important when we discuss the Pat- tern Generator.

  • Page 21: Loops And Patterns

    Symbol Indicators This symbol designates the origination or the termination of a data path. The direction of the arrow connected distinguish the two data paths. This symbol designates an invalid data path. If there is data present it should be ignored. 5.4 LOOPS AND PATTERNS The following section describes the Test Modes used in the Model 1088.
  • Page 22 the line or at the far end DTE interface is invalid. The remote unit will remain in the StartUP mode, NS LED on, DSL Link LED stays off, until the local unit is taken out of the Local Loop mode. After the Local Loop is deselected, the units will both be in StartUP mode and the link will be established.
  • Page 23 dure is changed to one minute. The 511/511E pattern will timeout after 45 seconds. So if the 511/511E is turned on during a local loop, the restart procedure is set to one minute, but the 511/511E pattern will time out after 45 seconds, allowing the framer to begin seeing framed packets (and not restart the box).
  • Page 24 before the completion of the termination phase the switch will be ignored until it is placed back into the normal position. Framer Pattern Gen/Det Processor Figure 17. Block Remote Loop with 511/511E Remote Digital Loop with 511/511E The Remote Digital Loop with 511/511E is shown above. After RDL is established the Remote units' Restart Timer is set to one minute.

  • Page 25: Using The V.52 (Ber) Test Pattern Generator

    Up mode. Note that once the 511/511E-pattern generator is started the Restart timer is changed to one minute (only on the unit which has the pattern enabled). If both units enable the 511/511E pattern within 4 seconds of each other, both units will be transmit- ting and receiving the 511/511E pattern.

  • Page 26: Specifications

    APPENDIX A SPECIFICATIONS A.1 CLOCKING MODES Network (G.703) A.2 DTE RATE All 64k steps from 64 to 2048 kbps A.3 DIAGNOSTICS V52 compliant (511/511E) pattern generator and detector with error injection mode. Remote Loopback (toward DSL line) and local loopback (toward G.703 network) control by a single front panel switch A.4 LED STATUS The following LEDs are displayed on the front panel:...

  • Page 27: Line Coding

    A.8 LINE CODING CAP (Carrierless Amplitude and Phase Modulation A.9 LINE RATES (DSL LINE) 144, 272, 400, 528, 784, 1040, 1552, 2064, Line Interface: Transformer coupled, 1500 VAC isolation A.10 MDSL PHYSICAL Connection: RJ-48C, 2 wire, polarity insensitive pins 4 and 5 A.11 G.703/G.704 SPECIFIC Interface: Female Dual Coaxial 75 ohm or Female RJ-48C 120 ohm A.12 LINE RATE...

  • Page 28: Factory Replacement Parts And Accessories

    FACTORY REPLACEMENT PARTS AND ACCESSORIES Model # 1088/K 080551 080552 48V-PSM 08055DCUI 0805EUR 0805UK 0805US 0805AUS 0805DEN 0805FR 0805IN 0805IS 0805JAP 0805SW 07M1088/K APPENDIX B Description G.703 mDSL Rocket (CAP) 120V Power Supply 230V Power Supply DC Power Supply Module 100–240VAC (+5V ±5% reg.

  • Page 29: Transmission Distance Chart

    APPENDIX C TRANSMISSION DISTANCE CHART...

  • Page 30: Model 1088/K Led Descriptions

    MODEL 1088/K LED DESCRIPTIONS ----------------------------------------------------------------------- E1/FE1 LOS DSL Link NS ER ----------------------------------------------------------------------- Power ON DSL Link Link Brk Brk+ 10s RDL+511 ----------------------------------------------------------------------- With DTE Connected ----------------------------------------------------------------------- Mark Space Data Link Brk = DSL Link Broken Brk+10s = 10 Seconds following Link Break...
