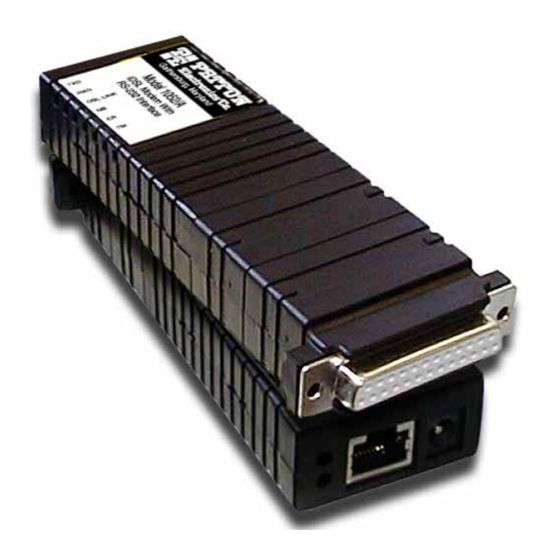

Patton electronics idsl modem with rs-232 interface user manual 1052
Hide thumbs Also See for 1052:
Table of Contents

Advertisement

Quick Links

Download this manual

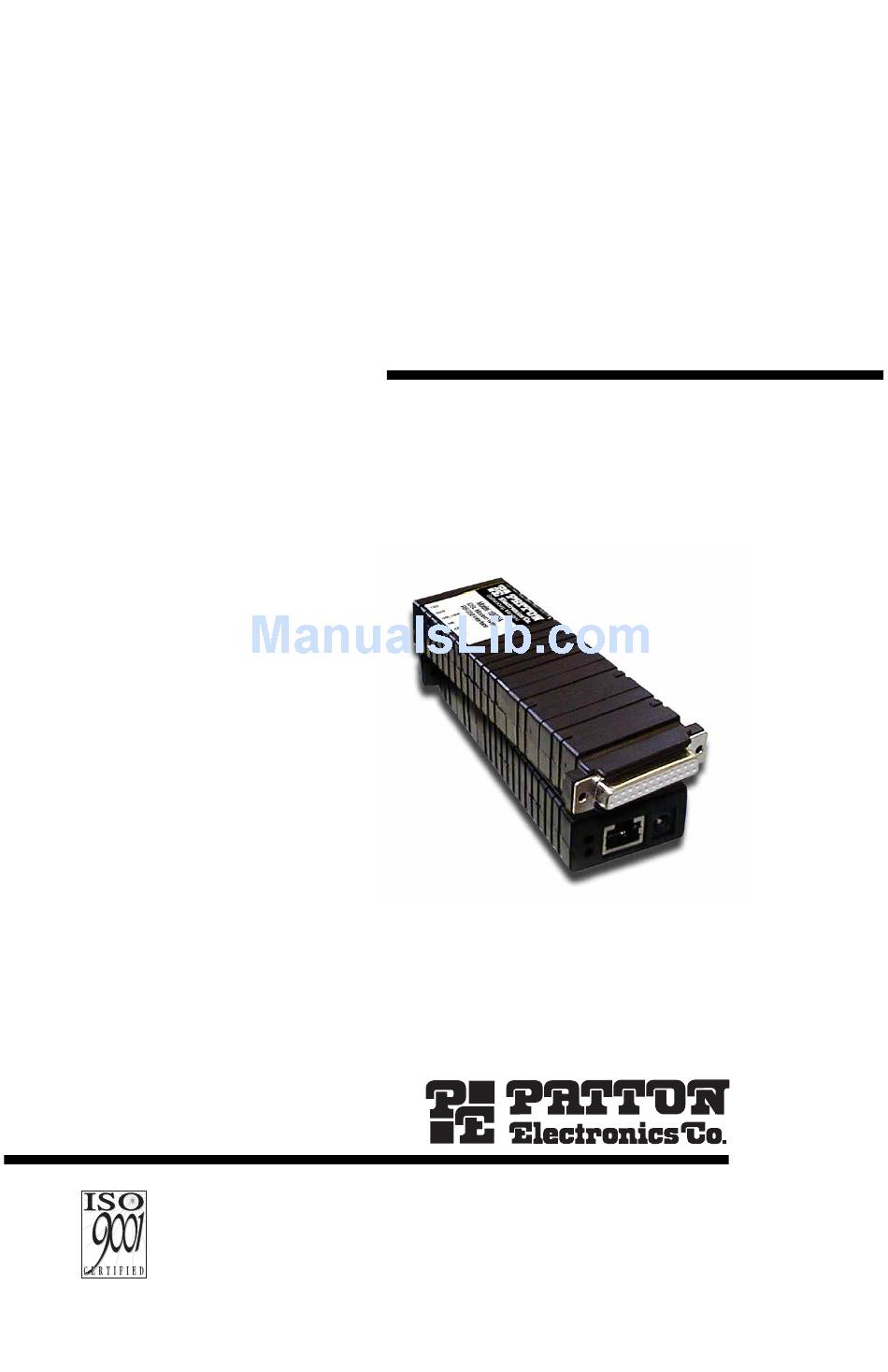

Part# 07M1052-B
Doc# 058061UB
Revised 5/24/02
An ISO-9001
Certified
Company
USER
MANUAL
MODEL 1052
iDSL Modem with
RS-232 Interface
SALES OFFICE
(301) 975-1000
TECHNICAL SUPPORT
(301) 975-1007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1052 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Patton electronics 1052

Summary of Contents for Patton electronics 1052

  • Page 1 Part# 07M1052-B Doc# 058061UB Revised 5/24/02 An ISO-9001 Certified Company USER MANUAL MODEL 1052 iDSL Modem with RS-232 Interface SALES OFFICE (301) 975-1000 TECHNICAL SUPPORT (301) 975-1007...

  • Page 2: Table Of Contents

    Connecting the Twisted Pair Interface... 12 Connecting the Connecting the Model 1052/A (RS-232) ... 13 Connecting the Model 1052/A (RS-232) to a DTE Device ... 13 Power Connection ... 13 Universal AC Power (100–240 VAC)... 14 DC Power ... 14 Operation...
  • Page 3 A.10 Temperature Range ... 17 A.11 Altitude ... 17 A.12 Humidity ... 17 A.13 Weight ... 17 A.14 Line Interface ... 17 Models 1052/A Factory Replacement Parts and Accessories ... 18 Model 1052/A Interface Pin Assignments... 19...

  • Page 4: Warranty Information

    1.0 WARRANTY INFORMATION Patton Electronics warrants all Model 1052 components to be free from defects, and will—at our option—repair or replace the product should it fail within one year from the first date of shipment. This warranty is limited to defects in workmanship or materials, and does not cover customer damage, abuse or unauthorized modification.

  • Page 5: Service

    Packages received without an RMA number will not be accepted. Patton Electronics’ technical staff is also available to answer any ques- tions that might arise concerning the installation or use of your Model 1052. Technical Service hours: 8AM to 5PM EST, Monday through Friday.

  • Page 6: General Information

    • CE marked 2.2 DESCRIPTION The Patton Model 1052 is a high speed, AC powered short range modem that is able to operate synchronously or asynchronously—full duplex— over a single twisted pair. Supporting data rates up to 128 kbps (syn- chronous) or 38.4 kbps (asynchronous), the Model 1052 is capable of...

  • Page 7: Configuration

    S1 and S2 each contain eight internal DIP switches (see Figure 1) that are used for configuration reset purposes only. To access switch set SW1, use a small flat blade screwdriver to open the Model 1052’s case as shown in Figure 2 on page 8.

  • Page 8: Configuring Dip Switch S1

    S1-3 S1-4 S1-5 S1-6 S1-7 S1-8 Switches S1-1 and S1-2: Data Rate. Use switches S1-1 and S1-2 to configure the asynchronous or synchronous data rate of the Model 1052. S1 Summary Table Function Data Rate Data Rate Reserved Reserved Async/Sync Data Format...

  • Page 9: Switch S1-3

    Model 1052 for async/sync operation. Switch S1-5 must be set in the Off position. There is no other valid setting. Switches S1-6 and S1-7: System Clock Mode. Use Switches S1-6 and S1-7 to configure the 1052 for internal, or receive recover clock mode. S1-6...

  • Page 10: Switch S1-8

    S2-3 S2-4 S2-5 S2-6 S2-7 S2-8 Switch S2-1: 19.2 kbps Synchronous Rate. Enable Switch S2-1 to allow the Model 1052 to operate at the 19.2 kbps synchronous data rate. S2-1 Activation Disabled Enabled Setting Reserved Table 1: S2 Summary Table Function 19.2 kbps Enable...

  • Page 11: Switch S2-2: Must Be Set To The On Position (Reserved)

    Switch S2-2: Must be set to the ON position (Reserved). Switches S2-3. Must be set to the Off position (Reserved). S2-3 Switches S2-4 and S2-5: Not Assigned. Switch S2-6. Must be set to the Off position (Reserved). S2-6 Switch S2-8: Not Assigned. S2-2 S2-2 Setting Reserved...

  • Page 12: Installation

    Once the Model 1052 has been configured, it is ready to connect to the twisted pair interface, to the serial port, and to the power source. This section tells you how to make these connections. RS-232 port Power jack 4.1 CONNECTING THE TWISTED PAIR INTERFACE The Model 1052 supports communication between two DTE devices at distances to 5 miles (8 km) over 24 AWG (0.5mm) twisted pair wire.

  • Page 13: Connecting The Connecting The Model 1052/A (Rs-232)

    DB-25 female connector. As a DCE, this inter- face is designed to connect to DTE equipment, such as a router. When connecting the RS-232 interface of the Model 1052/A to your DTE device, use an RS-232 straight-through cable (see Figure 5). Appendix C on page 19 describes pin assignments and signal sources for the Model 1052/A RS-232 interface.

  • Page 14: Universal Ac Power (100-240 Vac)

    (Refer to Appendix B on page 18 for country-specific power cords. The Model 1052 powers up as soon as it is plugged into an AC outlet—there is no power switch.The Universal AC supply is equipped with a male IEC-320.

  • Page 15: Operation

    13 to ensure that the unit is connected to the appropri- ate power source. 5.2 LED STATUS MONITORS The Model 1052 features five side panel LEDs (see Figure 7). Table 2 describes the function of each LED. Figure 7. Model 1052 side panel LEDs (Active: Green) When lit, indicates data transmission.

  • Page 16: Model 1052 Specifications

    APPENDIX A MODEL 1052 SPECIFICATIONS A.1 TRANSMISSION FORMAT Synchronous or asynchronous A.2 TRANSMISSION LINE Single unconditioned twisted pair A.3 CONTROL SIGNALS CD and RTS A.4 CLOCKING Internal, external, or receive loopback A.5 DISTANCE Distance, max, all data rates: • 10.1 miles (16.4km) on 19 AWG (0.9mm) wire •...

  • Page 17: Temperature Range

    A.10 TEMPERATURE RANGE 32–122°F (0–50°C) A.11 ALTITUDE 0–15,000 feet (0–4,572 meters) A.12 HUMIDITY 5–95% non-condensing A.13 WEIGHT 2.01 lbs. (1.0 kg) A.14 LINE INTERFACE Transformer coupled 1500 VAC isolation...

  • Page 18: B Models 1052/A Factory Replacement

    MODELS 1052/A FACTORY REPLACEMENT Model # 1052/A 12V-PSM 24V-PSM 48V-PSM 08055DCUI 100-240VAC (+5V ±5% reg. DC/2A) Universal Input Adapter 0805EUR 0805UK 0805US 0805AUS 0805DEN 0805FR 0805IN 0805IS 0805JAP 0805SW 07M1052 APPENDIX B PARTS AND ACCESSORIES Description RS232 iDSL Modem 12 VDC Power Supply Module...

  • Page 19: Model 1052/A Interface Pin Assignments

    APPENDIX C MODEL 1052/A INTERFACE PIN ASSIGNMENTS RS-232 INTERFACE (DB-25 Female Connector) (DCE Orientation) Pin # TD (Transmit Data) (DTE Source) RD (Receive Data) (DCE Source) RTS (Request to Send) (DTE Source) CTS (Clear to Send) (DCE Source) DSR (Data Set Ready) (DCE Source)
