Patton electronics 1058DVRC Quick Reference

Product Model
Product Name
Product Manager
Who are the customers for the Model 1058?

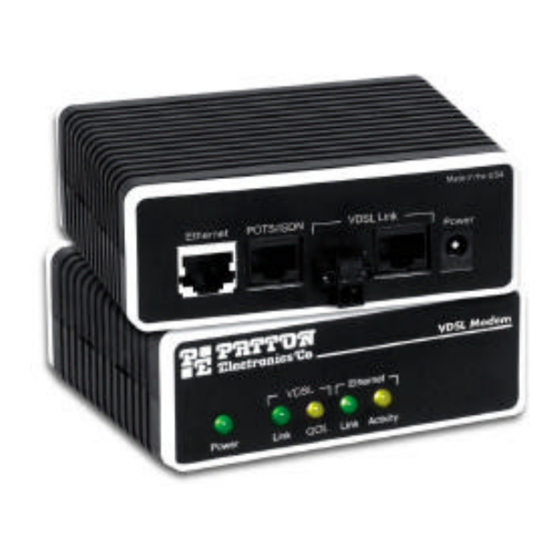

The Patton Model 1058DV enables the
utilization of existing copper
infrastructure for the delivery of
symmetrical broadband and POTS/ISDN
services over a single twisted pair of
voice-grade wire. The Model 1058DV
solution is targeted to any user or
provider who needs high-speed data
links. These organizations include but
are not limited to CLEC's, ISP's,
Educational Facilities (Campus),
MTU/MDU's, and corporate/government
offices. Popular applications for
symmetrical VDSL include medical
imaging, always on high-speed Internet
access, and real time bi-directional video streaming.
Typical applications include:
LAN-to-LAN Bridging: The Model 1058 connects remote LANs over a high-speed, symmetrical
12.5Mbps line. The 1058 CP is placed at a remote location and a 1058 CO is placed at the
central site to provide a LAN-to-LAN connection over a voice-grade wire.
Ethernet Extension:
Ethernet with a symmetrical 12.5 Mbps link at distances up to 4,656 ft (1.42 km).
Dedicated Internet and Voice Services: VDSL enables ISP's to deliver dedicated high-speed
Internet access and voice services from a Point-of-Presence (POP) to a customer premise. A
1058CO is used at the POP and a 1058CP is used at the customer premise. The Model 1058DV's
built-in POTS/ISDN splitter allows users to simultaneously use the phone or fax machine, while
surfing the web, downloading files or receiving e-mails.
MTU/MDU Services: Using broadband VDSL, data and voice services can be extended to the
hotel guest, apartment resident, and housing resident, etc. Patton's VDSL modems allow service
providers to avoid the cost and trouble of wiring the individual hotel rooms with 4-wire twisted
pair or Ethernet cabling by using the existing voice-grade 2-wire infrastructure.
provider would place the 1001R rack system with multiple 1058RCDV/CO rack cards in the
basement or closet and the standalone 1058DV/CP in the individual hotel rooms.
connected, the Model 1058's will automatically establish a high-speed Point-to-Point voice and
data link.
1058 Standalone and Rack Card
VDSL Modem
John Grant
Enables the customer to overcome the 328 ft (100m) limitations of
Contact
1
G G oCard oCard
Jgrant@patton.com
Model 1058DV
1058DVRC
The service
and
Once
