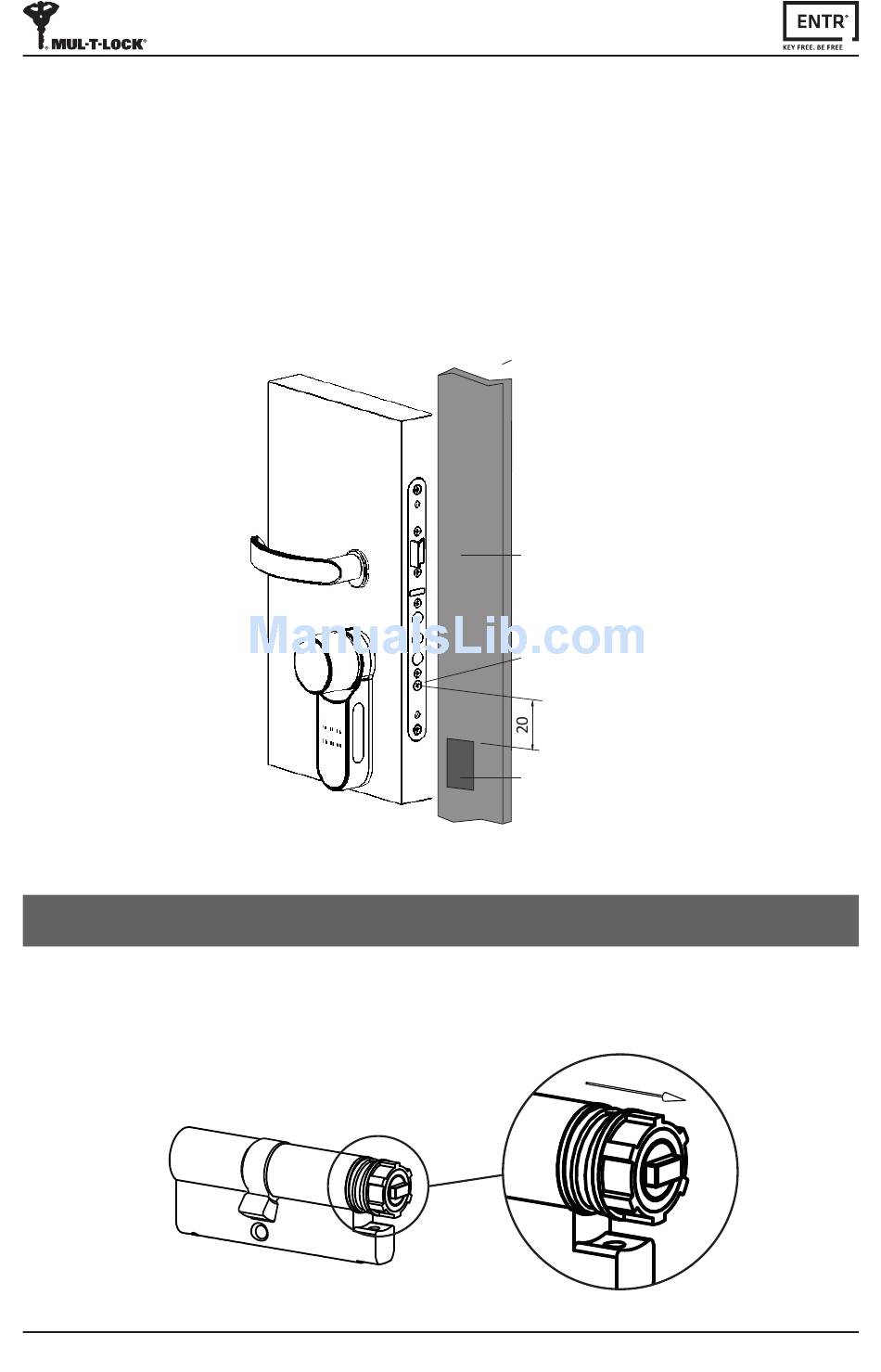

1.5 Magnet Fitting

• Position the magnet on the front panel of the door frame, as close as possible to
the lock.
• The top point of the magnet should be approximately 20mm below the M5 screw
(see illustration).
• Use the supplied double-sided sticker to adhere magnet.
Note: The magnet area on door frame should be clean and free from dust, peeling
paint etc. If required use alcohol to clean. Wait until completely dry prior to sticking.

1.6 Cylinder to Unit Assembly (optional)

Note: Follow the instructions only if the cylinder was dismantled from the door unit.
• Insert the operating key into the external side of the cylinder and turn one full turn.
• Take the key out.
Note: Verify that the gear is not pressed in.
ENTR® User Manual
Door frame
Cylinder fixing screw (M5)
Magnet
Gear not pressed in
