Mul-t-lock HaspLock Diamond Installation And Service Instructions

9

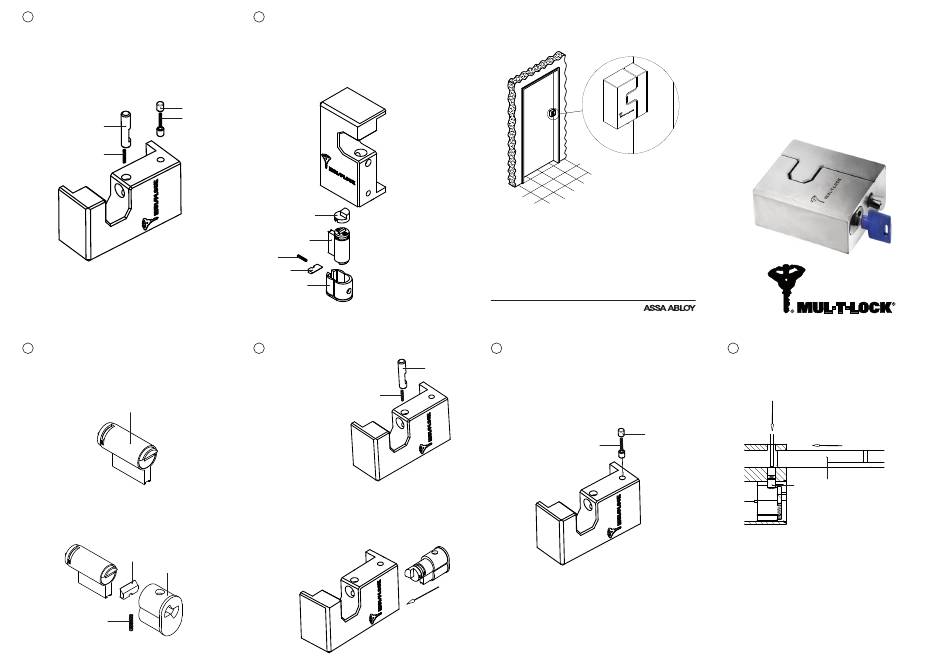

Take out latch (2), the two springs (8) and the two
pins (9) (Fig 9).
Pay attention as parts may jump out.
9
8
2
8
Fig 9
11
At this stage it is possible to re-key the cylinder (11).
Reassemble the new pins according to the new
combination. Check for proper shear line with the
new key.
11
Assemble shutter (6) and shutter spring (7) into cylinder
holder.
Insert the cylinder (11) into cylinder holder (5).
6
5
7
10
Pull out the cylinder (11) together with the cylinder
holder (5). Pull out the activator (4).
Take out the cylinder (11) from cylinder holder (5).
Note: Pay attention to shutter (6) and spring (7).
Fig 10.
4
11
7
6
5
12
Insert latch (2) and
2
spring (8) into lock body.
8
• Insert activator (4) into lock body.
• Insert the cylinder (11) together with the cylinder
holder (5).
Note: Press latch (2) to verify engagement of the
activator.
www.mul-t-lock.com
The Mul-T-lock name and Muscleman Logo, and any other name, mark
or logo used by Mul-T-Lock and marked by ® or ™ sign, are registered/
pending trademarks of Mul-T-Lock Ltd. in various countries. Mul-T-Lock
reserves the right to make any product improvements or modifications
without prior notice.
© 2018 Mul-T-Lock Technologies Ltd. Cat. No.28500290-B
An ASSA ABLOY Group brand
13
Insert the pins (9) and spring (8).
Press and hold stopper pin.
While pressing insert operating key and verify proper
operation of the lock.
9
8
HaspLock
DIAMOND
Installation and Service
Instructions
14
While pressing the pin (9) push the bolt (3) in.
After assembled verify proper operation of the lock.
3
9
