3.4.2 Internet access setting

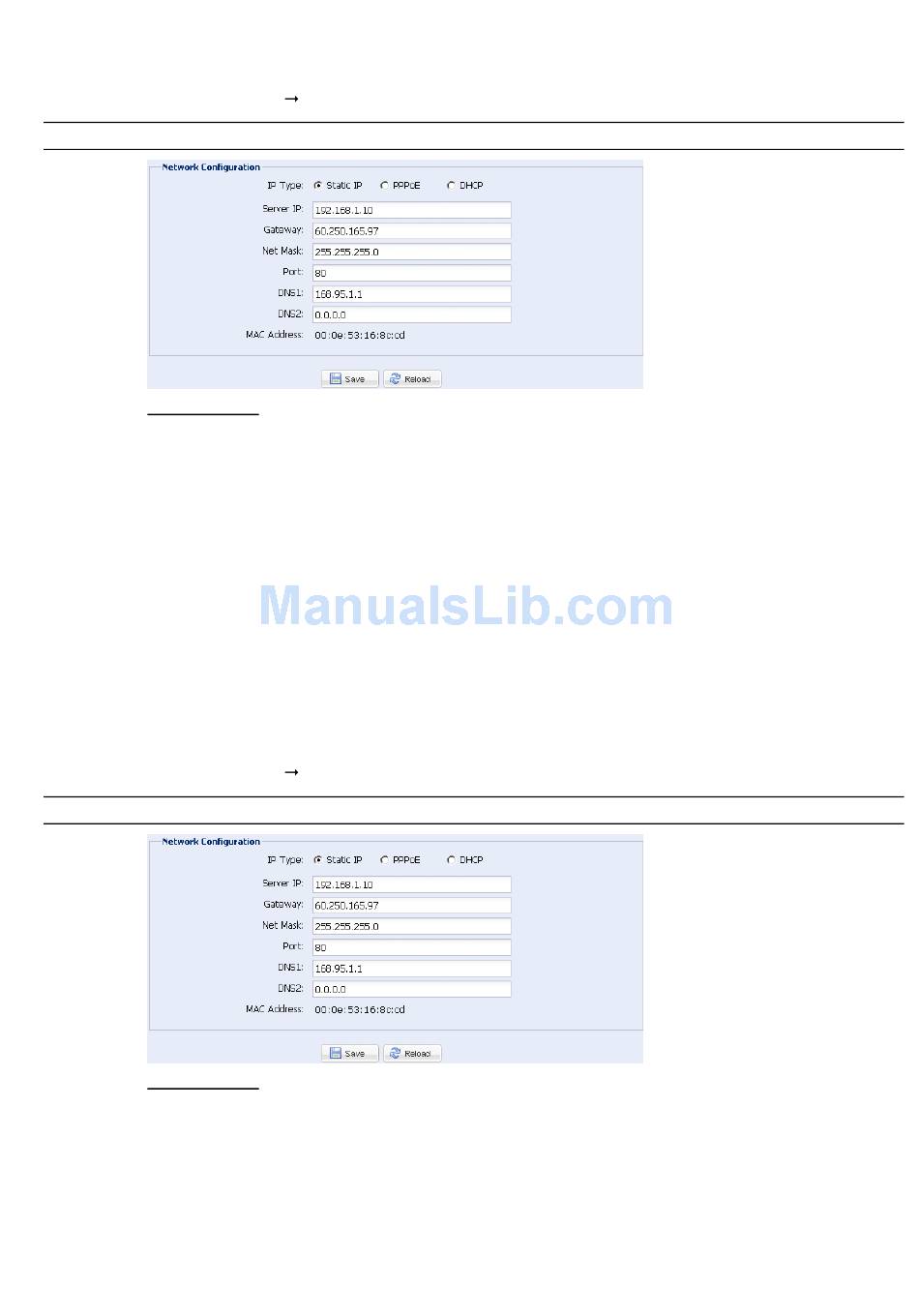

Step1: Click "Network"
Note: This camera doesn't support POE router or hub.
For Static IP:
a) Enter the information of "Server IP", "Gateway" and "Net Mask" obtained from your ISP (Internet
Service Provider).
b) Enter the port number. The valid number ranges from 1 to 9999. The default value is 80. Typically, the
TCP port used by HTTP is 80. However in some cases, it is better to change this port number for
added flexibility or security.
c) Click "Save" to save your network configurations, and log out.
d) Disconnect your camera and your PC, and connect them to Internet separately. Then, enter the IP
address or host name you just note down in the URL address box of the web browser, and see if you
can access the camera successfully.
3.4.2 Internet access setting
Step1: Click "Network"
Note: This camera doesn't support POE router or hub.
For Static IP:
e) Enter the information of "Server IP", "Gateway" and "Net Mask" obtained from your ISP (Internet
Service Provider).
f) Enter the port number. The valid number ranges from 1 to 9999. The default value is 80. Typically, the
TCP port used by HTTP is 80. However in some cases, it is better to change this port number for
added flexibility or security.
g) Click "Save" to save your network configurations, and log out.
h) Disconnect your camera and your PC, and connect them to Internet separately. Then, enter the IP
address or host name you just note down in the URL address box of the web browser, and see if you
can access the camera successfully.
"Network" to select the connection type: Static IP / PPPoE / DHCP.
15
"Network" to select the connection type: Static IP / PPPoE / DHCP.
15
