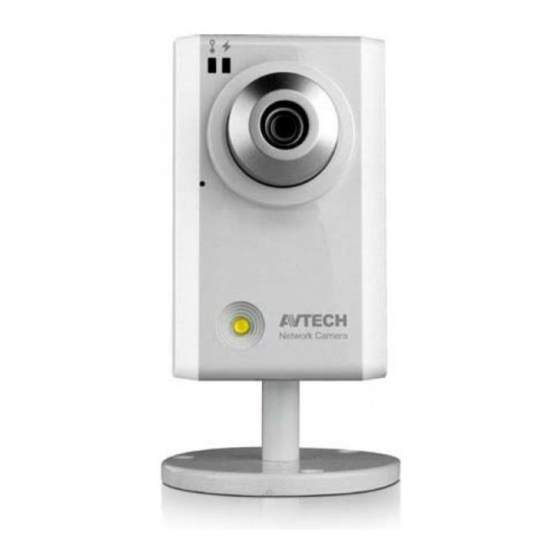

Avtech AVN304 Installation Manual
  1. Manuals
  2. Brands
  3. Avtech Manuals
  4. Security Camera
  5. AVN304
  6. Installation manual

Avtech AVN304 Installation Manual

Megapixel series
Hide thumbs Also See for AVN304:
Table of Contents

Advertisement

Quick Links

MEGAPIXEL NETWORK CAMERA SERIES
Please read instructions thoroughly before operation and retain it for future reference.
MEGAPIXEL NETWORK CAMERA SERIES
Please read instructions thoroughly before operation and retain it for future reference.
AVN304 / 314
INSTALLATION GUIDE
AVN304 / 314
INSTALLATION GUIDE
373Z
N30x_V1.1
373Z
N30x_V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVN304 and is the answer not in the manual?

Questions and answers

Related Manuals for Avtech AVN304

Summary of Contents for Avtech AVN304

  • Page 1 373Z AVN304 / 314 MEGAPIXEL NETWORK CAMERA SERIES INSTALLATION GUIDE Please read instructions thoroughly before operation and retain it for future reference. N30x_V1.1 373Z AVN304 / 314 MEGAPIXEL NETWORK CAMERA SERIES INSTALLATION GUIDE Please read instructions thoroughly before operation and retain it for future reference.
  • Page 3 IMPORTANT SAFEGUARD All lead-free products offered by the company comply with the requirements of the European law on the Restriction of Hazardous Substances (RoHS) directive, which means our manufacture processes and products are strictly “lead-free” and without the hazardous substances cited in the directive. The crossed-out wheeled bin mark symbolizes that within the European Union the product must be collected separately at the product end-of-life.
  • Page 4 MPEG4 Licensing THIS PRODUCT IS LICENSED UNDER THE MPEG4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG4 VISUAL STANDARD (“MPEG-4 VIDEO”) AND/OR (ii) DECODING MPEG4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG4 VIDEO.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS 1. OVERVIEW..........................1 1.1 Package content ............................1 1.2 Rear Panel ..............................1 1.3 Status Indicator ............................. 2 2. INSTALLATION & CONNECTION ...................3 2.1 Install the camera............................3 2.2 Connect to power............................3 3. CAMERA ACCESS AND NETWORK CONFIGURATION............4 3.1 Network connection via LAN.........................

  • Page 7: Overview

    1. OVERVIEW 1.1 Package content □ Network camera □ Camera Bracket □ Installation Guide □ Adapter □ CD-ROM disc (including user manuals & CMS software “Video Viewer”) 1.2 Rear Panel Ethernet: Connect your network cable. DC 5V: Connect the supplied regulated power supply. Reset: With the power connected, press and hold for a few seconds to reset all parameters, including the IP address to factory default settings.

  • Page 8: Status Indicator

    1.3 Status Indicator ICON LAN connection status Internet connection status System Status During powering on Always on Always on Reset default Blinking Always off (on 250 ms, off 250 ms) Upgrade Blinking Blinking (on 250 ms, off 250 ms) (on 250 ms, off 250 ms) Connection Status LAN connected Always on...

  • Page 9: Installation & Connection

    2. INSTALLATION & CONNECTION 2.1 Install the camera 1. Find the bracket and its accessories supplied with the camera. 2. Attached the base of the bracket (the round one) to where you want to install this camera, and fasten it with the supplied screws.

  • Page 10: Camera Access And Network Configuration

    3. CAMERA ACCESS AND NETWORK CONFIGURATION Before using this network camera, please follow the instructions below to finish the network connection settings based on your installation environment: To configure the network settings, you must connect the camera to your PC by LAN. For details, please refer to “3.1 Network connection via LAN”...
  • Page 11 For Windows XP users: a) Select “start” “Control Panel” “Network and Internet Connections” “Network Connections” (If you’re in “Category View”). For Windows XP users: a) Select “start” “Control Panel” “Network and Internet Connections” “Network Connections” (If you’re in “Category View”).
  • Page 12 b) In “LAN or High-Speed Internet”, right-click on “Local Area Connection”, and select “Properties”. Note: If your local area connection is not enabled, please also enable it. c) In the “General” tab, select “Internet Protocol (TCP/IP)”, and select “Properties”. d) In the “General” tab, select “Use the following IP address”, and set the IP address to “192.168.1.XXX” (XXX can be any value from 1~255 except 10).
  • Page 13 For Windows Vista users: a) Select “ ” (start) “Control Panel” “Network and Internet” to enter the “Network and Sharing Center”. Then, click “Manage network connections” (If you’re in “Category View”). b) Right-click on “Local Area Connection”, and select “Properties”. Note: If your local area connection is not enabled, please also enable it.
  • Page 14 c) In the “Networking” tab, select “Internet Protocol Version 4 (TCP/IPv4)”, and select “Properties”. d) In the “General” tab, select “Use the following IP address”, and set the IP address as described below. Note: It’s recommended to note down the current settings first and then change as instructed. It’s helpful when you need to restore the PC network settings for connecting to Internet later.
  • Page 15 For Windows 7 users: a) Select “ ” (start) “Control Panel” “Network and Internet” to enter the “Network and Sharing Center”. Then, click “Change adapter settings”. b) Right-click on “Local Area Connection”, and select “Properties”. Note: If your local area connection is not enabled, please also enable it. For Windows 7 users: a) Select “...
  • Page 16 c) In the “Networking” tab, select “Internet Protocol Version 4 (TCP/IPv4)”, and select “Properties”. d) In the “General” tab, select “Use the following IP address”, and set the IP address as described below. Note: It’s recommended to note down the current settings first and then change as instructed. It’s helpful when you need to restore the PC network settings for connecting to Internet later.

  • Page 17: Camera Access Via Web Browser

    3.2 Camera access via web browser Step1: Open your web browser, for example, Microsoft Internet Explorer, and enter “http://192.168.1.10” in the URL address box. Step2: In the login page, key in the default user name (admin) and password (admin), and enter the security code from the image below.

  • Page 18: Video Adjustment

    3.3 Video adjustment When you’ve accessed the camera successfully, it’s recommended to adjust the video images if needed. To adjust the clearness of the video, rotate the camera lens manually as shown in Figure 1. To slightly adjust the color of the video, in the live page of your web browser, click “Config” on the top right side of the browser to open the configuration page.

  • Page 19: Network Configurations

    3.4 Network configurations 3.4.1 Network environment setting Step1: Click “Config” in the live view page of your browser to enter the configuration page. Then, click “Camera” “Camera”. Step2: In this page, define your installation environment as indoor or outdoor, and set other parameters related to your network environment.
  • Page 20 Item Description Environment Select the current environment for the camera to automatically adjust itself to produce the images suitable for the selected environment. Frame Rate The frame rate allowed to each viewer can be adjusted to adapt to the bandwidth on the network. Set the desired image frequency to the maximum (FULL) or to a specified frame rate (1/2;...

  • Page 21: Internet Access Setting

    3.4.2 Internet access setting Step1: Click “Network” “Network” to select the connection type: Static IP / PPPoE / DHCP. Note: This camera doesn’t support POE router or hub. For Static IP: a) Enter the information of “Server IP”, “Gateway” and “Net Mask” obtained from your ISP (Internet Service Provider).

  • Page 22: Ddns Setting

    For PPPOE: a) Enter the user name and password obtained from your ISP, and click “Save”. b) Continue the DDNS setting as instructed in “3.4.3 DDNS Setting”. For DHCP: a) Before selecting this option, you need to finish the DHCP router settings first. Get a router and connect it to the Internet via your PC (with Static IP or PPPoE setting).
  • Page 23 Step3: Click “Save” and log out. Then, disconnect your camera and your PC, and connect them to Internet separately. Step4: Enter the host name you just note down in the URL address box of the web browser, and see if you can access the camera successfully. Step3: Click “Save”...

  • Page 25: Appendix 1 Creating An Account For Ddns Service

    APPENDIX 1 CREATING AN ACCOUNT FOR DDNS SERVICE For PPPOE or DHCP, you should enter the host name which points to the IP address of your network camera for login first. There are many websites for free DDNS service application, and below shows an example of DDNS account application from the website http://www.dyndns.com.
  • Page 26 Step2: Enter all the information necessary for signing up an account according to the website instructions. ‧Key in a user name for login, for example, headoffice523. ‧Set the password and input it again to confirm. ‧Key in your E-mail address and input it again to confirm. Then, click “Create Account”.
  • Page 27 Step3: The system will automatically send a confirmation email to your email account. Please read this email within 48 hours and complete the procedure to activate your account according to the instructions in the email. When the account is confirmed, you will see “Account Confirmed”. Your account is created successfully now.
  • Page 28 Step5: Click “Add Host Services”. ‧Input a meaningful host name. ‧Choose a host system name. ‧Enter the IP address you want to redirect. Step5: Click “Add Host Services”. ‧Input a meaningful host name. ‧Choose a host system name. ‧Enter the IP address you want to redirect.
  • Page 29 Note down the whole host name, for example, headoffice523.dyndns.org. Then, click “Add To Cart” for billing. Note: This service is free. Just finish the billing process, and NO paying information is required. Step6: Click “Activate Services” after checkout, and you’re ready to use DDNS services now. Note down the whole host name, for example, headoffice523.dyndns.org.
  • Page 30 Step7: Return to your web browser, and go to “Network” “DDNS”. Follow the description in “3.4.3 DDNS setting” at page 16. Step7: Return to your web browser, and go to “Network” “DDNS”. Follow the description in “3.4.3 DDNS setting” at page 16.

  • Page 31: Appendix 2 Mobile Surveillance Via Eagleeyes

    APPENDIX 2 MOBILE SURVEILLANCE VIA EAGLEEYES EagleEyes is a mobile phone program used with our surveillance system (DVRs or network cameras) for remote surveillance. It has several advantages: It’s free (Except EagleEyes Plus for iPhone). It’s compatible with several popular mobile platforms, such as iPhone, BlackBerry, Symbian, Windows Mobile and Android.

  • Page 32: A2.2 Where To Download

    A2.2 Where to download Connect to www.eagleeyescctv.com from your mobile phone, and sign in. Note: Please DO NOT try to download EagleEyes from your computer. Then, select “Software” and the mobile platform of your phone to download EagleEyes to your phone.
  • Page 33 When the download is completed, EagleEyes will be installed automatically to the location where all applications are saved in your phone by default, or where you specify. Note: For more details about configuring and operating this program, please visit our official website www.eagleeyescctv.com.
