eXact Micro 20 Instruction Manual

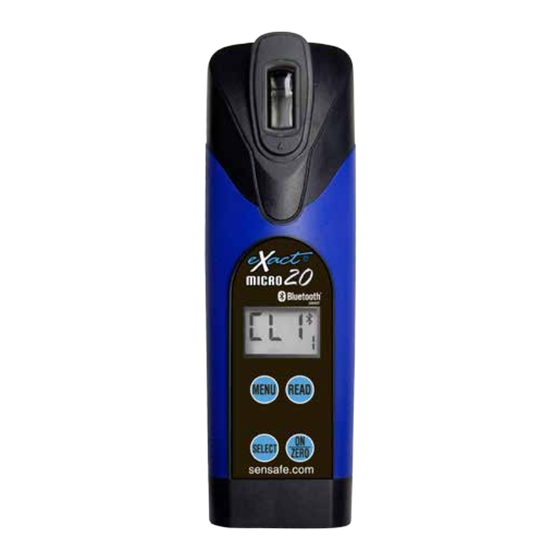

Powerful dual-wavelength photometer system with bluetooth smart
Hide thumbs Also See for eXact Micro 20:
Table of Contents

Advertisement

Quick Links

Download this manual
Advanced Photometer System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eXact Micro 20 and is the answer not in the manual?

Questions and answers

Related Manuals for eXact eXact Micro 20

Summary of Contents for eXact eXact Micro 20

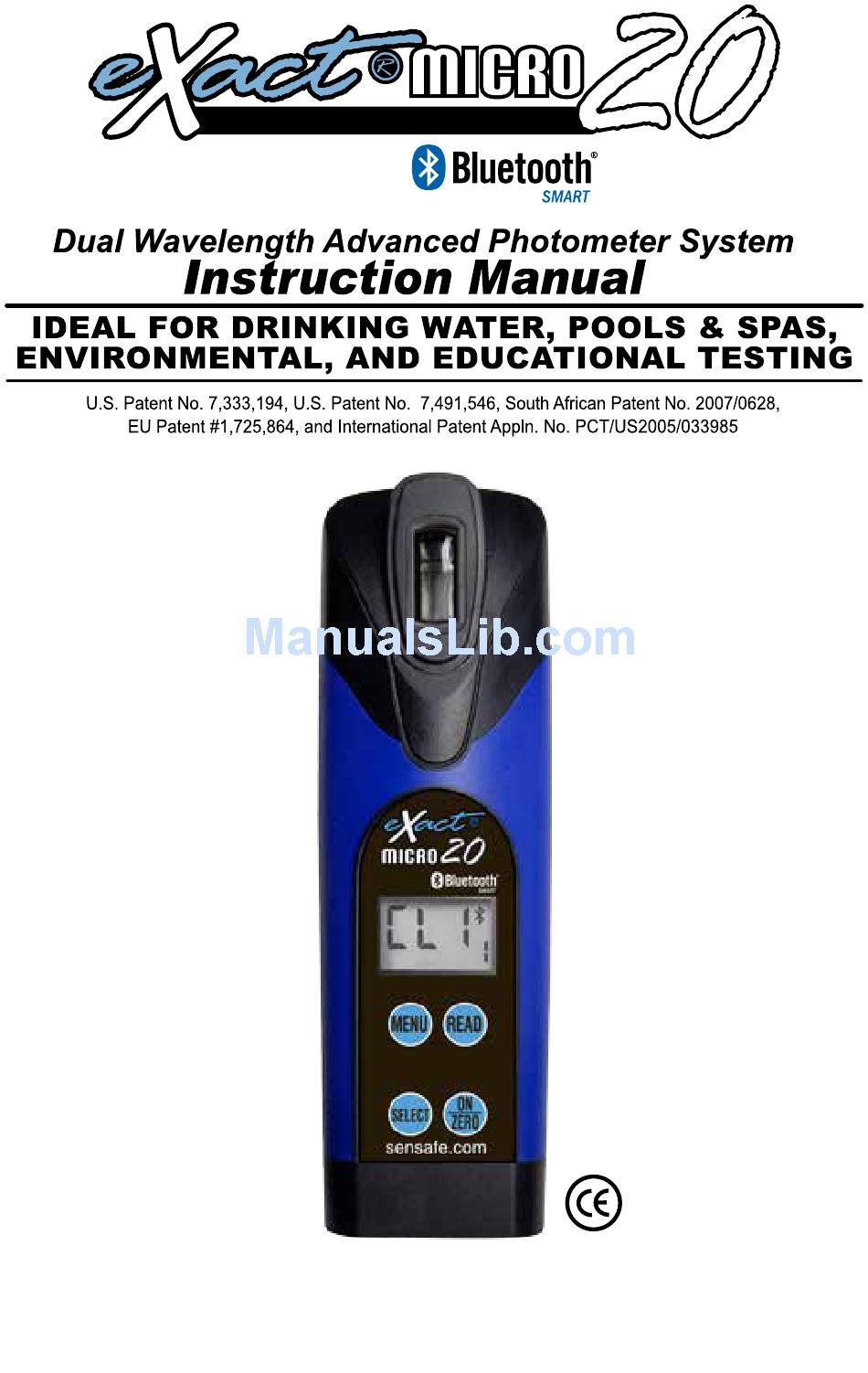

  • Page 1 Advanced Photometer System...

  • Page 2: Table Of Contents

    Compliance verification About the eXact iDip app for Micro 20 with Bluetooth SMART 6 – 7 ® ® Managing data with the eXact iDip 8 – 9 ® eXact Micro 20 Test Specifications 10 – 11 ® Select group overview...

  • Page 3: Technical Specifications

    Micro 20 with Bluetooth SMART Photometer Overview ® ® Your new eXact Micro 20 is ideal for testing Drinking Water, Pools, Spas, Ponds, ® Aquariums, Food Process Water, Environmental Waters, and more! Appears when meter is connected with MENU eXact iDip®...
  • Page 4 SMART ® Bluetooth SMART is a low–power wireless networking standard which uses short radio waves ® to allow electronic devices to communicate with each other. The eXact Micro 20 with Bluetooth ® ® SMART comes standard with the latest Bluetooth 4.0 technology...

  • Page 5: Compliance Verification

    Compliance Verification This DPD test system is accepted by most health departments because this test is USEPA (DIN Standard 38 408 G4, ISO 7393/2) accepted for testing requirements for Free and Total Chlorine. The eXact ® Micro 20 meter uses a wavelength of 525 nm; and the compliance requirement is that the colorimeter wavelength is between 490 nm to 530 nm.
  • Page 6 ® MENU: HOME SCREEN Opens slide-out for easy access to all app features ® History: Accesses saved results which can be sorted, edited, CALENDAr: and emailed. Displays your Also accesses schedule/ History Map appointments CUstoMErs: storE:...
  • Page 7 ® Download the App Using your smart device, download the eXact iDip app. To see if your smart device is compatible, please ® see our compatibility list at sensafe.com/compatible-devices/. We are constantly improving the eXact iDip app and welcome your suggestions to help make our ®...
  • Page 8 Micro 20 photometer and app. Please note that batch uploading tests saved on your eXact Micro 20 to a smartphone/tablet is not yet available. If you want to save a test result from your Micro 20 to the app, you will need to run the test while connected to the app or enter the result manually.
  • Page 9 Managing data with the eXact iDip app ® After you have ran your test, you can save, send, and share your results, by following the steps below. MANAGING DATA (SAVE/SEND/SHARE) When all tests have been performed, select ‘Results’ at the bottom of the screen. To add notes tap the desired test result.

  • Page 10: Exact ® Micro 20 Test Specifications

    Micro 20 Test Specifications ® Group & Parameter / Test Part No. Alkalinity, Total (drinking water) 486641 Alkalinity, Total (pool water) 486641 Aluminum (AI 486821 Ammonia (NH 486654 Biguanide 486810 Bromine (DPD–1) 486636 Calcium (as CaCO 486629 Chloride (as NaCL)
  • Page 11 Value provided represents best possible accuracy under laboratory conditions, but may vary throughout the detec- † tion range. For a complete list of accuracies throughout all ranges please visit sensafe.com/micro20/specifications. † Count–up Range Reagents Used Resolution | Best Accuracy Time (ppm) Immediate AL Strip...

  • Page 12: Select Group Overview

    Low battery indication during testing Replace batteries immediately. Otherwise (meter may not zero) meter may read LO while testing. Flashing result Lost connection to eXact iDip Press ON/ZERO to stop flashing. Remove ® on LCD and replace the battery cover if flashing...

  • Page 13: About The Sample Cell (Built–In 4 Ml)

    Registration of your eXact photometer must be received within 30 days from date of purchase to ® activate the warranty. The eXact photometer is warranted to be free from defects in materials and ® workmanship for a period of two (2) years from the date of purchase by the customer. ITS will repair or replace any part of the product which is deemed to be faulty or otherwise defective.
  • Page 14 The cursor will move across the display while the meter prepares to measure the sample. Record the value displayed for the respective parameter. This value is automatically stored in its MENU and if using the eXact iDip app, the result will be ®...
  • Page 15 The eXact Micro 20 Dual Wavelength Advanced Photometer System is designed ® for use with the eXact Strip Micro reagent delivery system. The eXact Micro 20 ® ® Dual Wavelength Photometer is manufactured and tested in an ISO 9001 Facility.
  • Page 16 The cursor will move across the display while the meter prepares to measure the sample. Record the value displayed for the respective parameter. This value is automatically stored in its MENU and if using the eXact iDip app, the result will be ®...
  • Page 17 (SPECIAL NOTES) ® Cyanuric Acid — Shake the bottle vigorously to mix before adding the drops to the sample Fluoride — The reagent contains acid, a stir bar may be used to mix the reagent. Some test procedures require the use combination of more than one test strip and/or liquid reagents.
  • Page 18 ® will be saved in the app’s ‘HISTORY’ IMPORTANT: DO NOT discard the sample from the Free Chlorine (DPD–1) test if you are planning to run eXact Strip Micro ® DPD–3 (Total Chlorine) Procedure. Move directly to steps 8–10 on the next page, otherwise immediately rinse the CELL.

  • Page 19: Combined Chlorine

    Combined Chlorine test procedure This procedure is only valid when ran as a continuation of the eXact Strip Micro ® CL (DPD–1 Free Chlorine). Test procedure located on the previous page. REMOVE STRIP Remove 1 eXact Strip Micro CL (DPD–3), Part No. 486638 ®...

  • Page 20: Aluminum, Ammonia & Sulfide

    At the end, the cursor will move across the display while the meter prepares to measure the sample. Record the value displayed for the respective parameter This value is automatically stored in its MENU and if using the eXact iDip app, the result will be saved in ®...

  • Page 21: Cyanide

    The meter will automatically start to count up to 600 seconds. At 600 seconds, the cursor will move across the display while the meter prepares to measure the sample. Record the result displayed. This result is automatically stored in CN MENU, and if using the eXact iDIp app, ®...

  • Page 22: Total Iron

    (for instructions, see page 8). ADD REDUCER Tilt the meter to discard about 0.2 mL sample in order to leave room for reagent. Add the contents of one eXact Reagent EZ Open REDUCER (Part No. 486601) to the CELL and ®...

  • Page 23: High Range Chloride

    2 strokes/sec). Remove and discard the strip after ‘1’ on the display disappears*. The cursor will move across the display, while the meter measures the sample. Record the result displayed (this result is automatically stored in CH MENU and, if using the eXact iDip app, will be stored ®...
  • Page 24 Remove and discard the strip after ‘1’ on the display disappears*. The cursor will move across the display, while the meter measures the sample. Record the result displayed (this result is automatically stored in Cd MENU and, if using the eXact iDip app, will be stored ®...

  • Page 25: Manganese

    The meter will begin a 120 second count up. After 120 seconds, the cursor will move across the display while the meter measures the sample*. Record the result displayed (this result is automatically stored in MN MENU and, if using the eXact iDip app, ®...

  • Page 26: Nitrate (Salt Water > 4000 Ppm)

    RECORD RESULT The cursor will move across the display while the meter measures the sample. Record the value displayed. This value is automatically stored in TR1, and if using the eXact iDip app, ® the result will be stored in the app’s ‘HISTORY’.

  • Page 27: Tips For Best Accuracy

    Micro 20 Meter is not compatible for use with DPD–1, DPD–3, and DPD–4 powder ® pillows, tablets, and liquids available from other manufacturers. Accurate results can only be guaranteed by using genuine eXact Micro strips or reagents (reorder information on page 19). ®...

  • Page 28: About The Accuracy/Calibration Of The Exact ® Micro 20 System

    Studies show that the eXact Micro 20 System repeatedly agrees with an EPA Compliant reference ® method greater than 99% (R2= 0.99948, 0 – 5.00 ppm – see below). The eXact Micro 20 Advanced ® Photometric System has been factory calibrated for your convenience. You can expect the fixed calibrations in the meter to be valid for the life of the meter because of the quality, Long–Life LED,...

  • Page 29: Accessories / Kits

    Accessories / Kits eXact Micro Carrying Case with Foam (486001) Dilution Kit (487200) Ready Snap™ 3 (486903) Pool Kit Standard Kit (486700–KP) (486700–K) Kit includes: Kit includes: • 1 eXact Micro 20 Meter (486700) • 1 eXact Micro 20 Meter (486700) ®...

  • Page 30: Notes

    Notes Subject to technical modifications without notice, ©2014 Industrial Test Systems, Inc.

  • Page 31: Available Reagents / Reorder Information

    Available reagents / Reorder information = EPA COMPLIANT RANGE # OF BEST PARAMETER / TEST PART # (ppm) ACCURACY TESTS Alkalinity, Total (drinking water) 486641 9 – 210 Alkalinity, Total (pool water) 486641 8 – 200 Aluminum 486821 0.01 – 1.2 Ammonia 486654 0.02 –...
  • Page 32 Visit us on–line at sensafe.com/micro20 for up–to–date product information and NEW tests available SENSAFE ITSSENSAFE MANUFACTURED BY Revision 09/09/2015 Industrial Test Systems, Inc. ITS EUROPE, LTD 1875 Langston Street, Rock Hill, SC 29730 The UK Centre for Homeland Security 1–800–861–9712—Inside the U.S.A. Building 7, Chilmark 1–803–329–9712—Outside the U.S.A.
