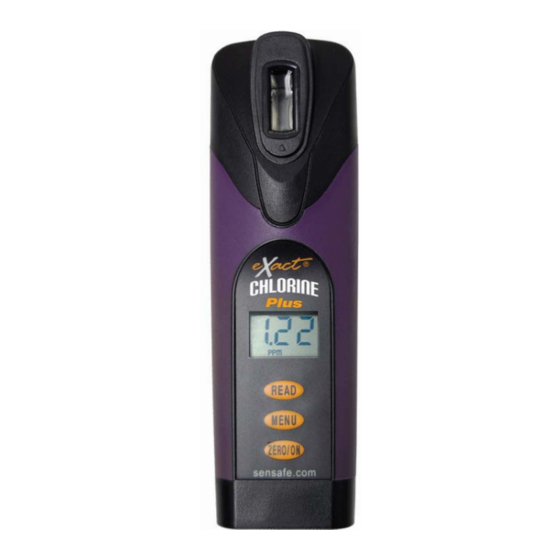

eXact Chlorine Plus Instruction Manual

Ideal for drinking water, pools, spas, environmental, food & beverage water quality testing
Hide thumbs

Advertisement

Quick Links

Download this manual
IDEAL FOR DRINKING WATER, POOLS, SPAS,
ENVIRONMENTAL, FOOD & BEVERAGE
Use in accordance with U.S. Patent No. 7,333,194, U.S. Patent No. 7,491,546,
South African Patent No. 2007/0628, Euro Pat No. 1,725,864 DE FR UK
Manufactured By: Industrial Test Systems, Inc.
anufactured By: Industrial Test Systems, In
1875 Langston Street, Rock Hill, SC 29730 USA
75 L
t
St
Phone: 1-800-861-9712 - INSIDE THE U.S.
1-803-329-9712 - OUTSIDE THE U.S.
www.poolcheckonline.com
©2017 Industrial Test Systems, Inc. • EXACT
Advanced Photometer System
WATER QUALITY TESTING
t R k Hill SC 29730 US
Fax: 1-803-329-9743
ITS@SENSAFE.COM
WWW.SENSAFE.COM
®
is a registered trademark of Industrial Test Systems, Inc., Rock Hill, SC USA
®
The eXact
Chlorine Plus Photometer and Advanced
System have been designed for use with the eXact
Strip Micro reagent delivery system.
Chlorine Plus is manufactured and tested in an ISO 9001 Facility
Index:
Parameter
Free Chlorine (DPD-1)
Combined Chlorine (DPD-3)
Total Chlorine (DPD-4)
Bromine (DPD-1)
Ozone (DPD-4)
Chlorine Dioxide (DPD-1)
Peracetic Acid (PAA)
Hydrogen Peroxide (as H
pH
Total Chlorine High
About Your Photometer
Tips for Best Accuracy
Reorder Information
Battery Installation
Warranty (2 year)
USEPA Compliance
Ready Snap Value
Kit Components
Visit sensafe.com/chlorineplus for updated product
information and new tests.
Revision 05/31/17
486696-PLUSK Kit
Page
4
5
6
6
7
7
8
O
)
8
2
2
9
9
3
10
10
11
11
2, 12
10
12
®
MENU
CL1
CL1
CL1
bR2
O3
Cd4
PA5
HP6
PH7
HR8

Advertisement

loading
Need help?

Need help?

Do you have a question about the Chlorine Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for eXact Chlorine Plus

Summary of Contents for eXact Chlorine Plus

  • Page 1 The eXact Chlorine Plus Photometer and Advanced System have been designed for use with the eXact ® Strip Micro reagent delivery system. Chlorine Plus is manufactured and tested in an ISO 9001 Facility Index: Parameter Page MENU Free Chlorine (DPD-1)
  • Page 2 Chlorine Plus Photometer ® ITEM PICTURED COMPONENT LETTER NAME Mixing Cap Cell (Built-in Plastic, 4 ml) LCD Display READ Button MENU Button ZERO/ON Button Battery Cover with loop for lanyard AAA Batteries (x4) (Not Included) (Used for tests...
  • Page 3 ® spectrophotometric methods. The algorithm in the software of the eXact Chlorine Plus Systems mirrors the AWWA, US EPA , DIN, and ISO reference test methods for chlorine. Studies show that the eXact ® ® Chlorine Plus System, with the eXact Strip Micro CL (DPD-1), repeatedly agrees with an EPA Compliant ®...
  • Page 4 (this result is automatically stored in CL1 Menu). ® DO NOT discard the sample from the Free Chlorine test if you are planning to run eXact Strip Micro DPD-3 (Total Chlorine) Procedure. Move directly to steps 8-10 on page 7.
  • Page 5 Strip Micro CL (DPD-1) Test Procedure on page 4. REMOVE STRIP ® Remove one (1) eXact Strip Micro CL (DPD-3), Part No. 486638 from the bottle before beginning the test. Set the strip in a dry, convenient place and recap the bottle immediately.
  • Page 6 Test Procedure (Total Chlorine) REMOVE STRIP ® Remove one (1) eXact Strip Micro CL (DPD-4), Part No. 486670 from the bottle before beginning the test. Set the strip in a dry, convenient place and recap the bottle immediately. TURN METER ON Press the ZERO/ON button to power the meter on;...
  • Page 7 DIP STRIP AND PRESS “READ” Dip the eXact Strip Micro Glycine, Part No. 484014 into the CELL and immediately press READ. This starts the 20 SECOND countdown timer. During this time move the strip in a gentle back and forth motion (approx 2 strokes/sec).
  • Page 8 Peracetic Acid Test Procedure REMOVE STRIP Remove one (1) eXact ® Strip Micro PA, Part No. 486675 from the bottle before beginning the test. Set the strip in a dry, convenient place and recap the bottle immediately. TURN METER ON Press the ZERO/ON button to power the meter on;...

  • Page 9: Ph Test Procedure

    Test Procedure REMOVE STRIP ® Remove one (1) eXact Strip Micro PH, Part No. 486639 from the bottle before beginning the test. Set the strip in a dry, convenient place and recap the bottle immediately. TURN METER ON Press the ZERO/ON button to power the meter on; the display will show all annunciators, then the current MENU selection, followed by the last reading.
  • Page 10 Micro strips or reagents (reorder information below). Our lab testing with the Chlorine Plus meter has shown that zeroing and measuring of the sample normally does not require any cell cover for accurate results, except in sunlight. To obtain optimal accuracy when testing with the meter outdoors (sunlight), use the Mixing Cap/Cell Cover when zeroing and reading the sample.

  • Page 11: Top View

    Chlorine Plus Meter Messages ® The following are some common messages that may be displayed, including error messages. If an error message other than those listed below is displayed, please contact technical support in the USA at (803) 329-0162 (ext. 0).

  • Page 12: Contact Information

    Strip Micro DPD-1 Accuracy ® ® ® Free Chlorine results are compared using the eXact Strip Micro CL (DPD-1) with the eXact Chlorine Plus Meter in ® ® Menu CL1 and Hach DR890 Colorimeter in Program 9 and Program 12 using Hach powder pillows.
