Summary of Contents for eXact pH+

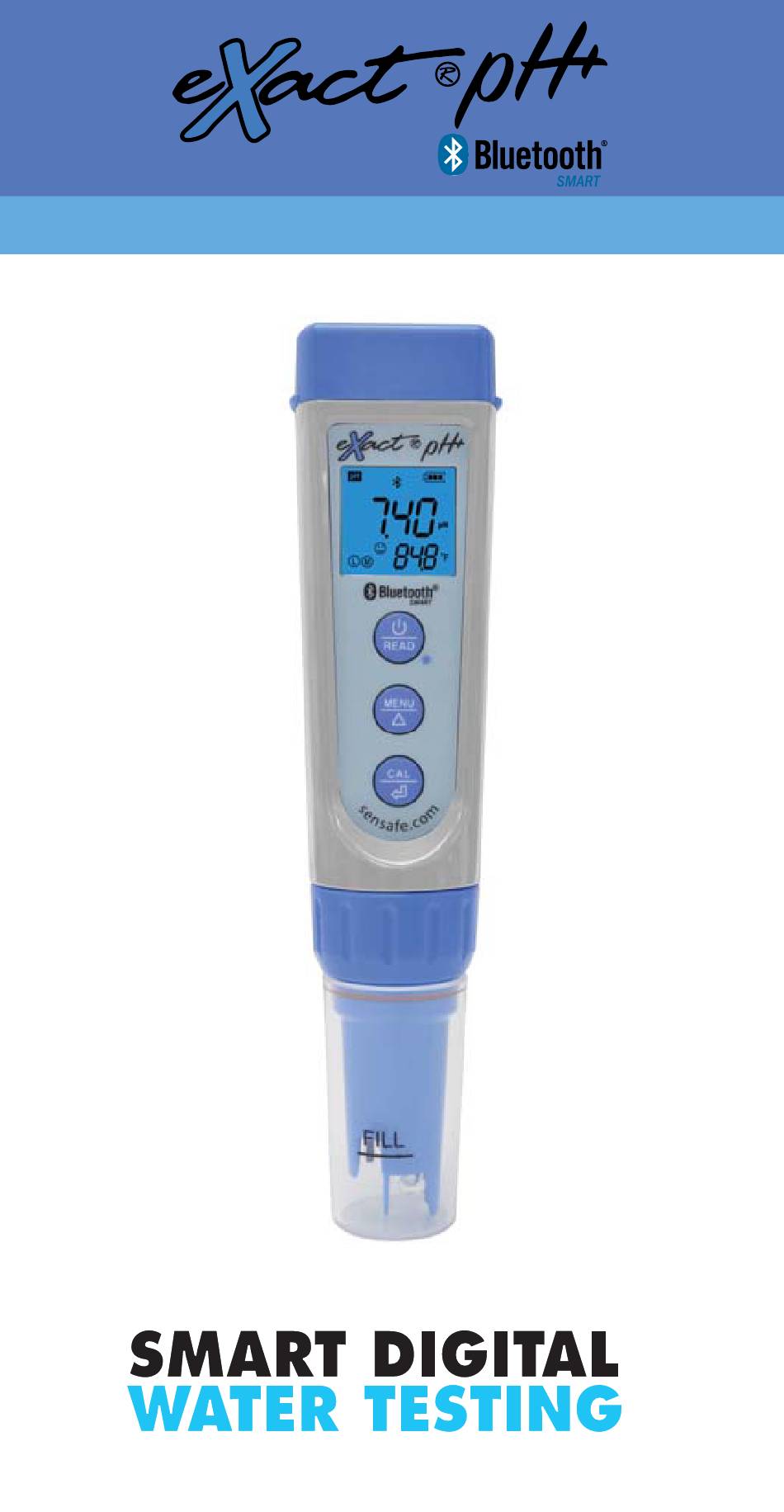

- Page 1 SMART METER SYSTEM with DIGITAL ACCURACY WITH EZ PH PROCEDURE ® SMART GUIDE...
-
Page 2: Table Of Contents
ORP Test Procedure ......17 Using the eXact iDip App ..... 18-30 ®... -
Page 3: Welcome
Registration of your eXact must be received within 30 days from date of ® purchase to activate the warranty. The eXact meter is warranted to be free ® from defects in materials and workmanship for a period of two (2) years from the date of purchase by the customer. -
Page 4: Kit Overview
KIT OVERVIEW CONTAINS PART NUMBER eXact meter (with pH probe), four AAA ® batteries, lanyard, 3M KCl storage solution, eXact two pH calibration bottles, two pH calibration ® 486301 Multi Kit solutions, two conductivity calibration bottles, two conductivity calibration solutions, pH+... -
Page 5: Exact ® Ph + Overview
EXACT OVERVIEW ® YOUR NEW EXACT PH T PH H H IS IDEAL FOR TESTING IS IDEAL FOR TESTING AND MAINTAINING YOUR DRINKING WATER. OUR DRINKING WATER. BATTERY COVER WITH CLIP Protects the batteries from LCD SCREEN water damage Displays results... -
Page 6: For Best Accuracy
FOR BEST ACCURACY Buffers for calibration should be based on the measurement range. Follow the calibration procedure properly. Be sure to remove air bubbles from pH glass bulb for accurate measurements. Store the meter and all test materials out of direct sunlight, heat, and away from chemical storage areas. -
Page 7: Troubleshooting
TROUBLESHOOTING Listed below are possible situations that may arise while testing. Please contact one of our customer service representatives, or watch our video online, if you require assistance. Subject Cause Solution Wrong calibration Check if calibration solution or the solution is correct range of calibration (1st pH calibration must solution exceeds... -
Page 8: Parameter Settings
PARAMETER SETTINGS When pH meter is turned off, press and hold button to enter Parameter Setting. Then, press to cycle through P1-P2…P8. Press , parameter starts to fl ash. Press choose parameter. Next, press to confi rm. Lastly, press and hold to turn off meter. -
Page 9: Parameter Settings
PARAMETER SETTINGS P2 Automatic lock: “ON” is preferred Select “On” to activate the auto-lock function. When the reading is stable for more than 10 seconds, the tester will lock the value automatically, and the HOLD icon will display on the LCD. Press key to cancel auto hold. -
Page 10: Ph Calibration Procedure
PH CALIBRATION PROCEDURE Things needed in addition to what’s in the kit: A clean plastic cup, clean water (distilled, deionized, or purifi ed bottled water) for rinsing (16oz), and soft paper towels for drying the probe. Ensure pH probe is securely installed (see image at right). If not, see page 6 for Probe Replacement. - Page 11 PH CALIBRATION PROCEDURE RUN 1 CALIBRATION Dip the meter in 7.00 pH calibration solution, stir gently, and allow the probe to sit in the solution until a stable reading is reached. When the stable icon appears on the LCD, press the key to complete one-point calibration.
-
Page 12: Ph Test Procedure
READ RESULTS stable icon comes up, rinse the probe with clean water and return it to the included storage solution or to pH 4 buffer. NOTE: If using the eXact iDip app, press the Save Result button at the top of ®... -
Page 13: Ph Calibration Notes
• Avoid cross-contaminating the pH buffers. Rinse the pH probe and blot excess water after each measurement. • Do not rub or touch the pH glass bulb! Important Operation Note: the eXact pH Smart Meter was especially engineered/designed for the nontechnical service person who requires a quick and accurate (within ±0.05) on-site pH measurement. -
Page 14: Conductivity Calibration Procedure
CONDUCTIVITY PROCEDURES Things needed in addition to what’s in the kit: Clean sample collection bottle (provided), clean water (distilled, deionized, or purifi ed bottled water) for rinsing (16oz), and soft paper towels for drying the probe. Ensure pH probe is securely installed (see image at right). -
Page 15: Conductivity Test Procedure
Salinity. When fi nished with readings, rinse the probe with clean water and return it to the included storage solution or to pH 4 buffer. NOTE: If using the eXact iDip app, press the Save Result button at the top of the ®... -
Page 16: Conductivity Test Notes
CONDUCTIVITY TEST NOTES • The TDS and Salinity measurements are calculated from the conductivity measurements by using conversion factors. • The meter can recognize 84μS, 1413 μS/cm and 12.88 mS/cm conductivity calibration solutions. The user can conduct 1 to 3 points calibration. -
Page 17: Orp Test Procedure
When fi nished with readings, rinse the probe with distilled water and return it to the included storage solution or to pH 4 buffer. NOTE: If using the eXact iDip app, press the Save Result button at the top of ®... -
Page 18: Using The Exact Idip
USING THE EXACT IDIP ® COMPATIBLE SMART DEVICES Updated SMART PHONE COMPATIBILITY 04/2017 APPLE SAMSUNG SONY MOTOROLA iPhone 4s AND UP Galaxy Ace Style Xperia E1 Moto E Desire 610 iPhone SE Galaxy Alpha Xperia M2 Moto G Desire 816... -
Page 19: Getting Started
® Bluetooth SMART is a low-power networking standard ® which uses short radio waves to allow electronic devices to communicate with each other wirelessly. The eXact ® comes standard with the latest Bluetooth 4.0 technology ® (bluetooth.com/Pages/Bluetooth-Smart.aspx). It is a class 2 device with a wireless working distance of up to 30 feet (10 meters) and a 2.1 Mbps data transfer rate. -
Page 20: Exact Idip App Overview
USING THE EXACT IDIP ® EXACT IDIP APP OVERVIEW ® MENU: Opens HOME SCREEN PROFILE: slide-out for Activate easy access to Archiving all app features HISTORY: Accesses saved results which can be sorted, edited, CALENDAR: and emailed. Displays your Also accesses... -
Page 21: Navigating The App
TEST You can utilize two different testing methods under Test: Manual Entry or Bluetooth Device. BLUETOOTH TEST Tests will be performed with your eXact pH meter. MANUAL TEST This feature allows you to utilize other testing methods and manually enter your results into the app. Begin by selecting ‘Test’, ‘Manual Entry’, and select your desired test. -
Page 22: History
USING THE EXACT IDIP ® NAVIGATING THE EXACT IDIP ® HISTORY The History stores all your saved test result information and allows you to sort by date, customer name, or test type. HOW TO SORT BY CUSTOMER To sort by Customer begin by selecting 'History', then 'Sort by', 'Customer'. -
Page 23: Calendar
USING THE EXACT IDIP ® NAVIGATING THE EXACT IDIP ® CALENDAR Never miss an appointment! With the app’s Calendar feature, you can access your device’s calendar directly from the app. View by date range to see past entries or future appointments. -
Page 24: Profi Le
USING THE EXACT IDIP ® NAVIGATING THE EXACT IDIP ® PROFILE The Profi le section of the app can be used to set your preferred units of measure for your tests. Another feature located in the Profi le section is Archiving. -
Page 25: Connect To Ph
USING THE EXACT IDIP ® CONNECT TO PH For helpful tips regarding test procedures, refer to tips “FOR BEST ACCURACY” on page 5. SELECT CUSTOMER a. Select 'Customers' from the 'Home' screen. b. Tap 'Add customer from contacts'. c. Select a contact from your list. After selecting a contact, tap on the customer's address if shown. -
Page 26: Select Bluetooth ® Test
CONNECT EXACT ® The eXact iDip app will automatically connect to the ® most recently used device. If not, select your eXact ® from the bottom of the screen. After connecting, proceed with test procedure for chosen parameter. Note : Ensure you always connect your pH... -
Page 27: Auto-Calculated Methods
Refer to the instructions and perform the tests for TDS (page 15) and pH (page 12). Then, obtain results for Total Alkalinity and Calcium Hardness via alternate means (eXact iDip photometer - Part No. 486101 or eXact Micro 20 ®... -
Page 28: Managing Data
USING THE EXACT IDIP ® MANAGING DATA RESULTS After tests have been performed, tap 'Results' at the bottom of the screen. ADD SITES Each set of results can be saved to a customers 'Site' (water source at the location). Select a... -
Page 29: Save/Send/Share
USING THE EXACT IDIP ® MANAGING DATA SAVE TO HISTORY In 'Results' screen, tap 'Save' to store into 'History'. If this step is omitted, test results will not be permanently saved. A 'Saving Results' pop-up appears, verifying that your result is now successfully saved. -
Page 30: Using The Exact Idip ® App
USING THE EXACT IDIP ® MANAGING DATA SEND/SHARE VIA SOCIAL MEDIA To share your results on social media, use the 'Select' button and check the result(s) you want to share. Tap 'Post' at the top and choose whether to share via Facebook or Twitter. -
Page 31: Kits And Accessories
KITS & ACCESSORIES Store all your necessary reagents together with your pH in our convenient carrying case! KITS Each kit contains: • Carrying case • eXact meter (#486300) ® • Probe cover • AAA batteries x4 • pH meter storage solution •... -
Page 32: Exact Ph
EXACT TEST SPECIFICATIONS ® RESOLUTION ACCURACY CALIB PARAMETER / TEST RANGE POINTS 0 - 200.0 μS 0.1 μS Conductivity 0 - 2000 μS 1 μS ±1% 1 to 3 0 - 20.0 mS 0.1 mS ±1000 mV 1 mV ±0.2% 0.00 - 14.00 pH...
