L, R, L+R, L–R

– LED indicators associated with AUDIO DEMOD METERING scales and indicating currently

selected mode.

– indicating that the audio of the Left and/or Right stereo channel is lost. DB4004 can detect

program audio loss and alarm is initiated whenever any of the Left or Right channels of the stereo

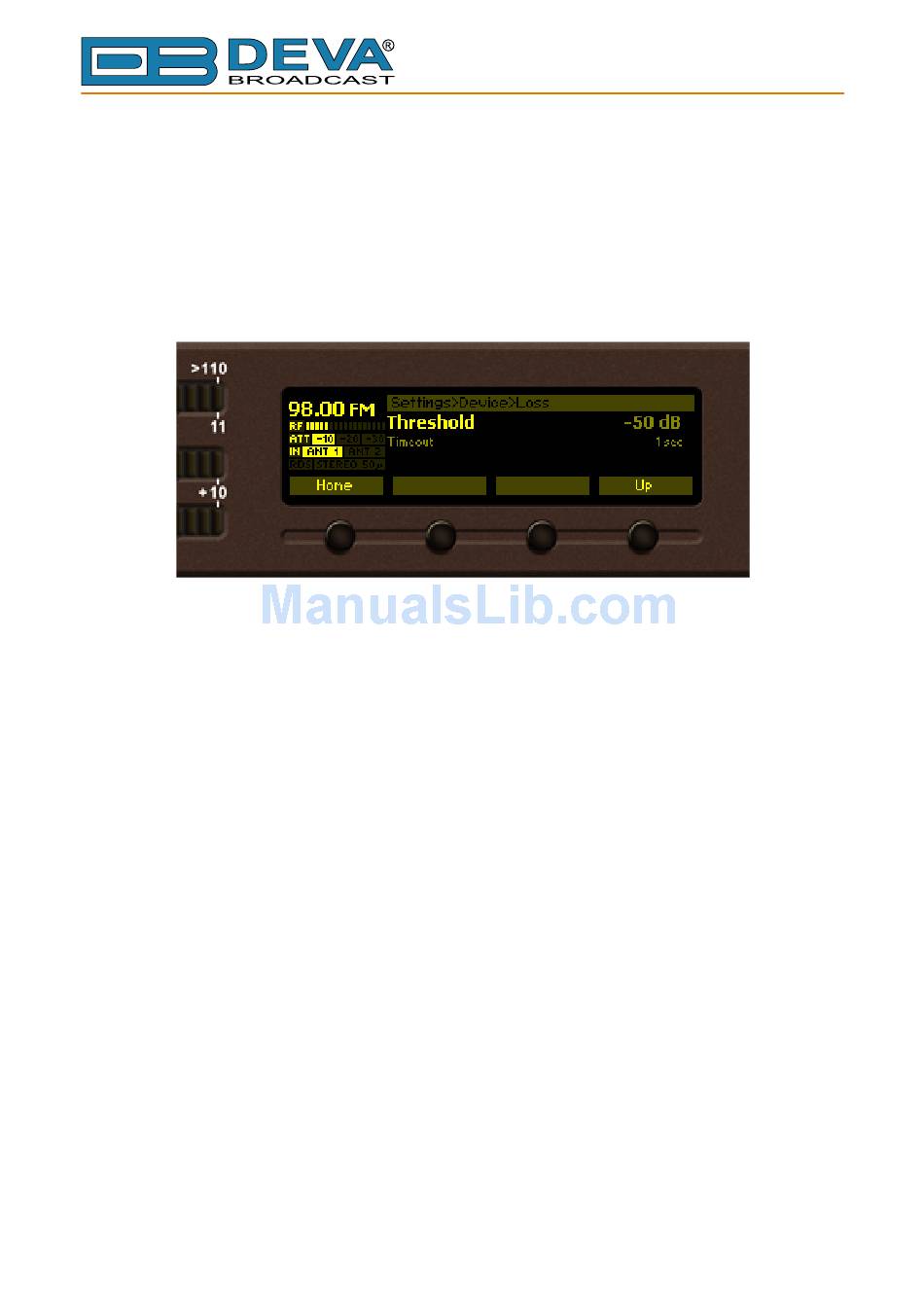

pair drops below selected threshold for certain time. The LOSS detection threshold level and time

can be adjusted from Settings > Device > Loss menu.

This function is not affected by the SELECT button.

65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria

Tel: +359 56 820027, Fax: +359 56 836700

E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com

- 23 -
