Measure Stereo Page - DEVA Broadcast DB4004 Maintenance And Operation Instruction Manual

Measure Stereo page

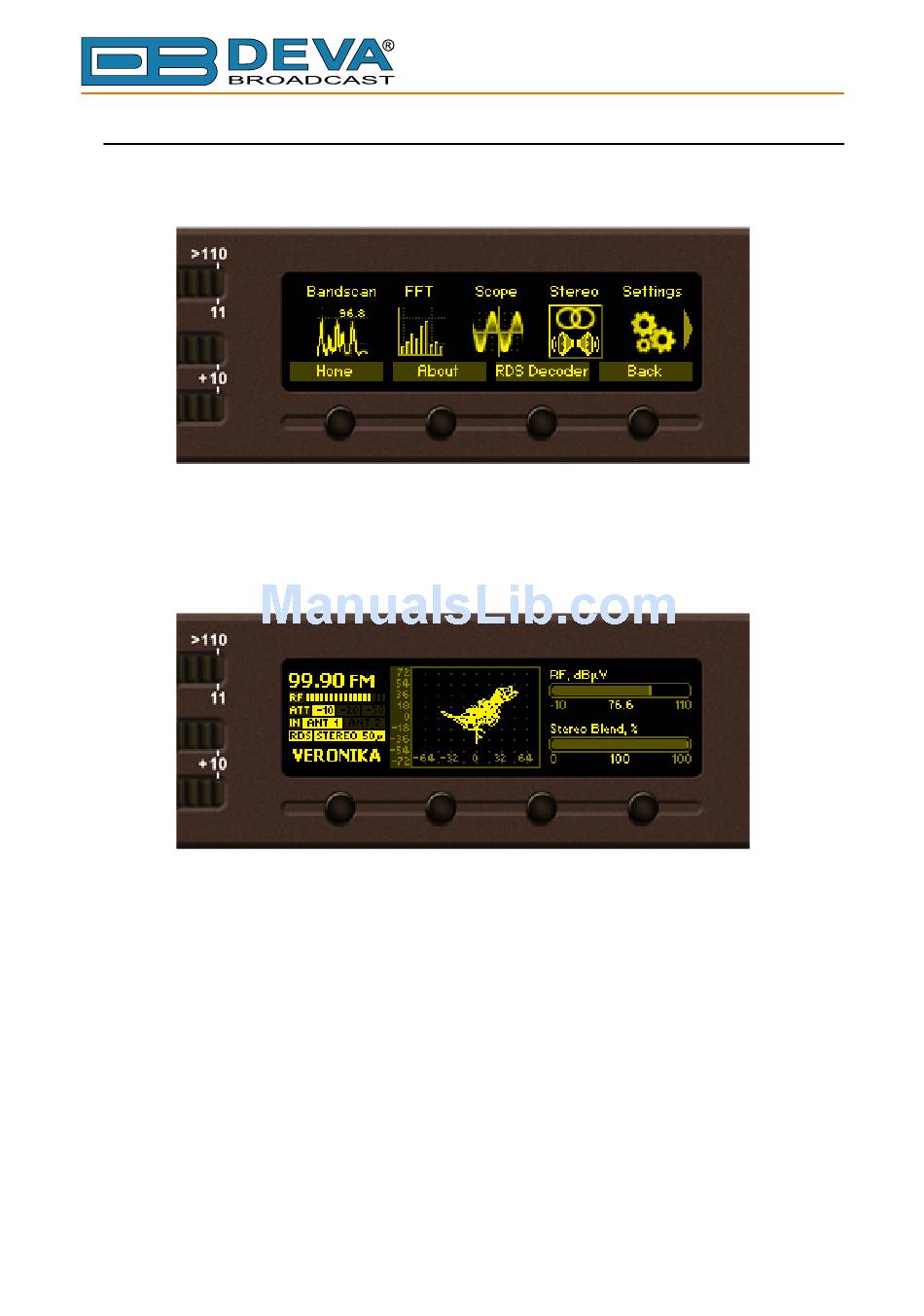

Select Stereo icon from Menu page and short press OK button on it. The transition to Measure
Stereo page will be made.
The graphical representation of the phase relations between Left and Right audio channels is
illustrated above. This graphic is used to assess mono compatibility of the audio material as well
as visualizing the stereo image or balance of the material. Experienced users of this type of display
can easily detect the differences between mono signals, "pan-pot" stereo and true stereo signals.
The audio levels for both left and right channels are given in kHz.
Button assignments:
OK – Transition to Main menu.
Left/Right – Sets current frequency.
Up/Down – Increases/decreases Phones audio level..
SB1-SB4 – Fast Presets.
