Assembly and Operating Instructions for Outback®
Montana Plus 4 Burner Gas Barbecue with Side Burner
Drawings are not to scale.
Specifications subject to change
without prior notice.
WARNING
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open barbecue lid or hood.
4. If odour continues, discontinue use and contact
your local dealer.
For outdoor use only. Not for commercial use.
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children and pets away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions may be
dangerous and will invalidate your warranty. This does not affect your statutory
rights.
Retain these instructions for future reference.
Leak test annually, and whenever the gas bottle is removed or replaced. Check that
the hose connections are tight and leak test each time you reconnect the gas bottle.
For Flare-up control please refer to the 'OPERATION' section of this manual.
GD4222S-S
FOR YOUR SAFETY
1. Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2. A gas bottle not connected for use must not be
stored in the vicinity of this or any other
appliance.
EN (Europe)
PIN: 598 CP 466

Advertisement

loading
Need help?

Need help?

Do you have a question about the GD4222S-S and is the answer not in the manual?

Questions and answers

Related Manuals for Outback GD4222S-S

Summary of Contents for Outback GD4222S-S

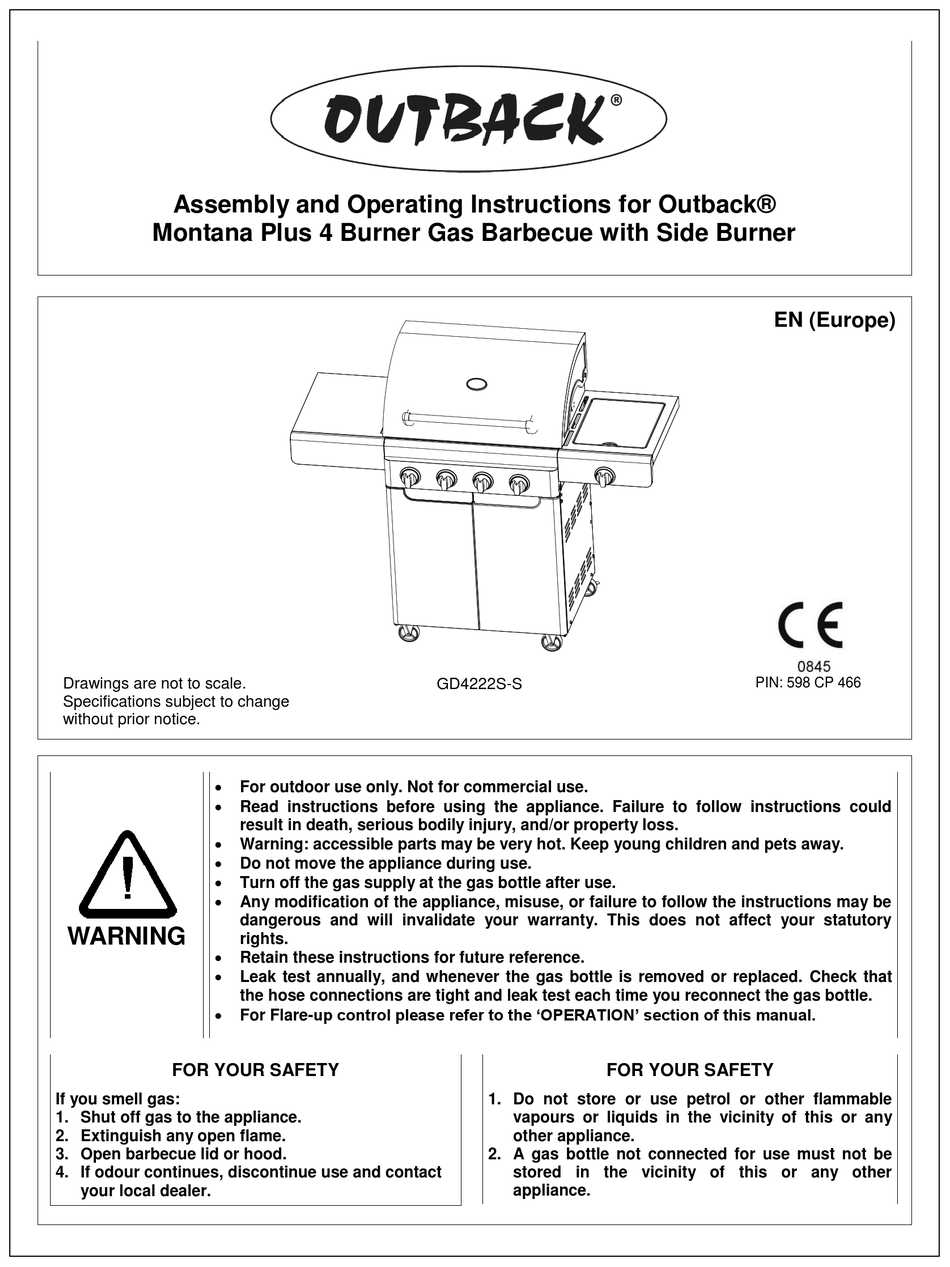

  • Page 1 Assembly and Operating Instructions for Outback® Montana Plus 4 Burner Gas Barbecue with Side Burner EN (Europe) Drawings are not to scale. PIN: 598 CP 466 GD4222S-S Specifications subject to change without prior notice.  For outdoor use only. Not for commercial use.

  • Page 2: Table Of Contents

    1. Parts List Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’. CODE PART Hood (Pre-Assembled to Body) Flame Tamer Warming Rack Cooking Grill Main Burner Knob HOOD &...
  • Page 3 2. Parts Diagram Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.
  • Page 4 3. Hardware Reference Diagram Specifications subject to change without prior notice. M6×12 Bolt & Ø6 Spring Washer (25pcs) M6¡ Á 1 2 bolt & 6 spring washer(25PCS) M4x8 Bolt & Ø4 Spring Washer M4¡ Á 8 bolt& 4 spring washer(4PCS) Ø6 Washer door axe (2PCS) Door Axle...
  • Page 5 4. Assembly IMPORTANT!  TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver, adjustable spanner or metric spanner set.  The assembly of this barbecue requires 2 people.  Remove any internal component or packaging from the barbecue body. ...
  • Page 6 13PCS Attach the Upper Body Support (C1) to the Left and Right Side Trolley Assembly (C2 & C3) using 4 x M6x12 Bolts and Ø6 Spring Washers (A). Attach a Rear Panel (C6) to the lower section of the Left and Right Side Trolley Assembly and Bottom Panel using 5 x M6x12 Bolts and Ø6 Spring Washers (A).
  • Page 7 Carefully place the Hood and Barbecue Body (A1) onto the trolley assembly. WARNING: DO NOT RELEASE THE BARBECUE BODY WHILE THE BARBECUE HAS NOT BEEN PROPERLY SEATED. THIS MAY RESULT IN INJURY OR DAMAGE TO YOUR BARBECUE. Attach the barbecue to the trolley assembly using 4 x M6x12 Bolts and Ø6 Spring Washers (A) and 4 x Ø6 Washers (C) as illustrated.
  • Page 8 Insert the Right Side Burner Shelf (B2) onto the 5 pre-installed screws (M6x16) on the right side of the barbecue body, then tighten these pre-installed screws as shown. Insert the Side Burner Gas Hose/Injector Assembly (A12) through the hole on the front of the side burner shelf and position it such that its screw holes align up.
  • Page 9 Place the Side Burner (B3) through the central hole in the side burner shelf. Fit the side burner venturi tube over the gas valve outlet. This is a loose fit and not a gas tight seal. Secure the burner with 2 x M4x8 Bolts and Ø4 Spring Washers (D). Insert the ignition wire into the lower position on the side burner electrode.

  • Page 10: Flame Tamer

    Carefully lay each Flame Tamer (A2) into the barbecue body ensuring it lies level within the body as illustrated. Place each Cooking Grill (A4) into the grill body as shown above.

  • Page 11: Warming Rack

    Insert the Warming Rack (A3) into the holes at the top left and right edges of the barbecue body as shown above. Insert the Drip Tray (A8) into the brackets (A10 & A11) at the bottom of barbecue body, then place the Grease Cup (A9) in the slot below the drip tray as shown above.
  • Page 12 Hang the Matchstick Lighting Rod Assembly (C7) onto the hook located at the top of either side of the trolley, as shown above. Ensure the mating faces of the connection are clean and not damaged. Do not use any sealing tape, paste, or liquid on the connection.

  • Page 13: Knob

     Retighten all joints  Repeat test  If bubbles form again do not use the barbecue and contact your local Outback distributor for assistance. Always wipe the mixed solution (½ water and ½ liquid detergent / soap) from all joints and connections...

  • Page 14: Important Information

     If 5. Important Information have queries regarding these instructions, contact your local dealer. Please read these instructions carefully before assembly and use of your barbecue. 6. Gas, Regulator and Hose  Retain these instructions for future reference.  This product is for outdoors use only. Do not use This barbecue can use either propane or butane or indoors.
  • Page 15 7.2. Precautions resistance to the turning. Pause 4 seconds, then Do not obstruct any ventilation openings in the continue turning the control knob until a click is barbecue body. heard and the burner is lit. Repeat previous step 4- 5 times until the burner is lit. ...

  • Page 16: Drip Tray

    8.5. Side Burner Cooking 8.9. Flare-Up Control When using the side-burner, care should be taken to *** Very Important Notice *** ensure that pans are central and flat on the side- burner grid. Flare-ups occur when meat is barbecued, and its fat and juices fall upon the hot flame tamer.

  • Page 17: Grease Cup

    9.5. Barbecue Body especially during the winter months. Heavy-duty Regularly remove excess grease or fat from the Outback® barbecue covers and other accessories are barbecue body using a cloth wrung out in hot soapy available from your local Outback® stockist.

  • Page 18: Side Burner

    Burner 0.81mm 37 mbar LPG mixture 0.76mm 50 mbar LPG mixture Model No: GD4222S-S Gas Consumption: 1252 g/h (Main burners: 1019 g/h Side burner: 233 g/h) Countries of Use: BE, FR, IT, LU, IE, GB, GR, PT, ES, CY, CZ, LT, SK, CH, SI 3+(28-30/37) ：...

  • Page 19: Troubleshooting

    11. Troubleshooting Problem Possible Cause Solution Burner will not light using LP gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas Clean jets and gas hose hose Electrode or ignition button wire is...
