Page 1: Quick Install Guide

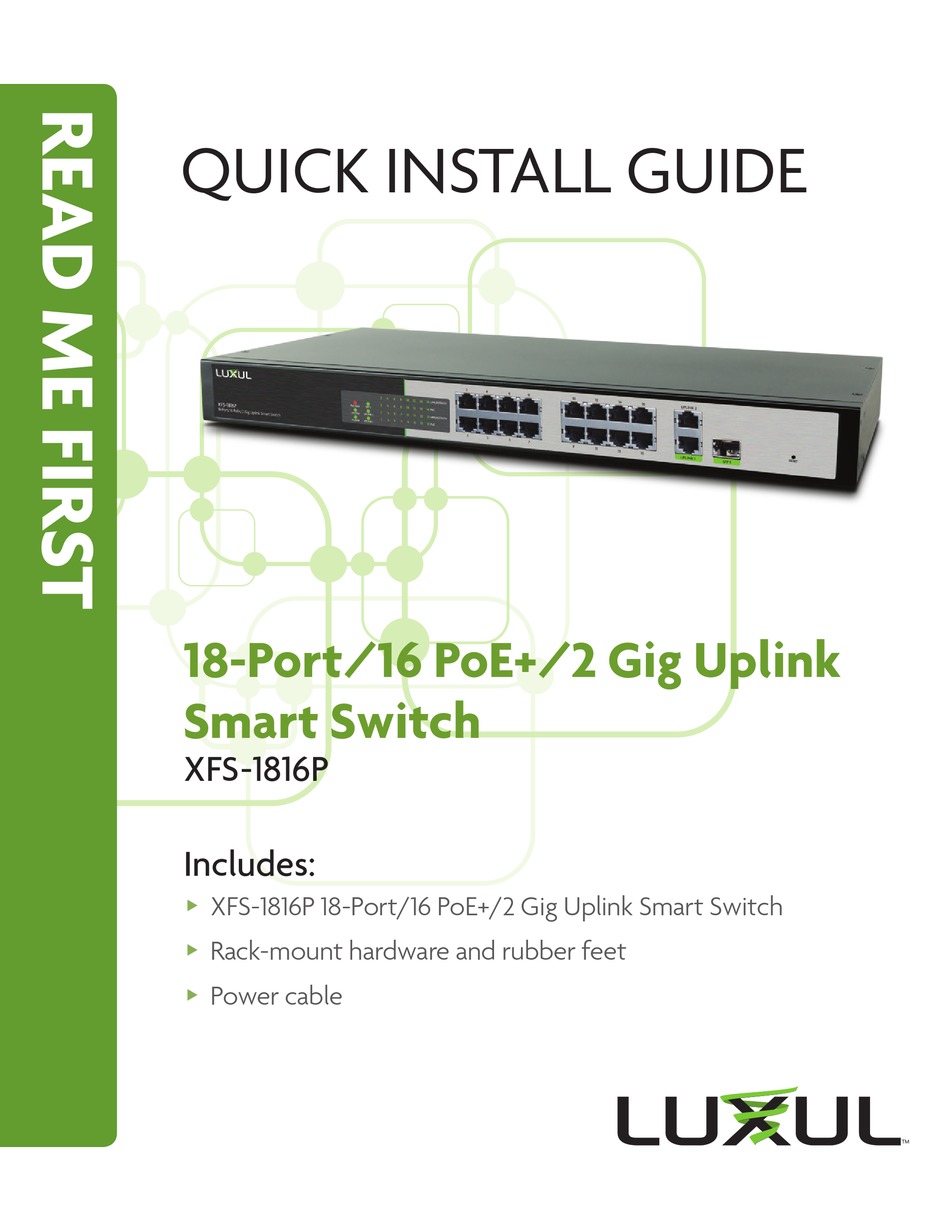

QUICK INSTALL GUIDE 18-Port/16 PoE+/2 Gig Uplink Smart Switch XFS-1816P Includes: XFS-1816P 18-Port/16 PoE+/2 Gig Uplink Smart Switch „ Rack-mount hardware and rubber feet „ Power cable „... -
Page 2: Setup And Configuration
The XFS-1816P can be rack-mounted or used as a desktop switch. Install the XFS-1816P in a stable/safe place to avoid any possible damage. Avoid placement in direct sunlight. Do not place heavy articles on the XFS-1816P and verify the ground connection of the outlet is functioning properly. -
Page 3: Network Cabling
Auto MDI/MDIX and can be used as ordinary ports or as Uplink ports. Ports 1-16 are PoE+ and are enabled by default. Use the included power cable to connect the XFS-1816P to a surge protect- ed outlet. The AC input socket and a power switch are on the rear panel. -
Page 4: Getting Connected
Preparing for Access IP Addressing If the XFS-1816P is connected to a network with a 192.168.0.X address scheme, and your computer shares a similar address on the same network, you can skip to the next step, Access and Setup . -
Page 5: Hardware Operation
Logging In To access the XFS-1816P web configuration, open your web browser and enter the switch’s default 192.168.0.4 IP address in the address field. Log in to the switch using the default user name and password: Default IP: 192.168.0.4 Username: admin Password: admin Select the menu items on the left to view and/or modify the configuration. -
Page 6: Status Indicators
LED functionality: Indicator State Description POWER The XFS-1816P is switched on. XFS-1816P is switched off or not connected to AC power. Check power connections and power switch at the back of the unit. SYSTEM The XFS-1816P is booting. Flashing The XFS-1816P is running normally. -
Page 7: Reset Button
On – flashing – off. Once you see the flash sequence, release the Reset button and the switch automatically restores factory default settings. Once the System LED starts flashing again, the XFS-1816P is set to factory defaults. CAUTION: Please note that restoring Default Settings will remove... -
Page 8: Legal And Regulatory Information
No part of this publication, or any other publication may be modified or adapted in any way, for any purposes without permission in writing from Luxul. The material in this manual is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design.
