Luxul XGS-1024 Quick Install Manual

24-port gigabit ethernet switch
Hide thumbs Also See for XGS-1024:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

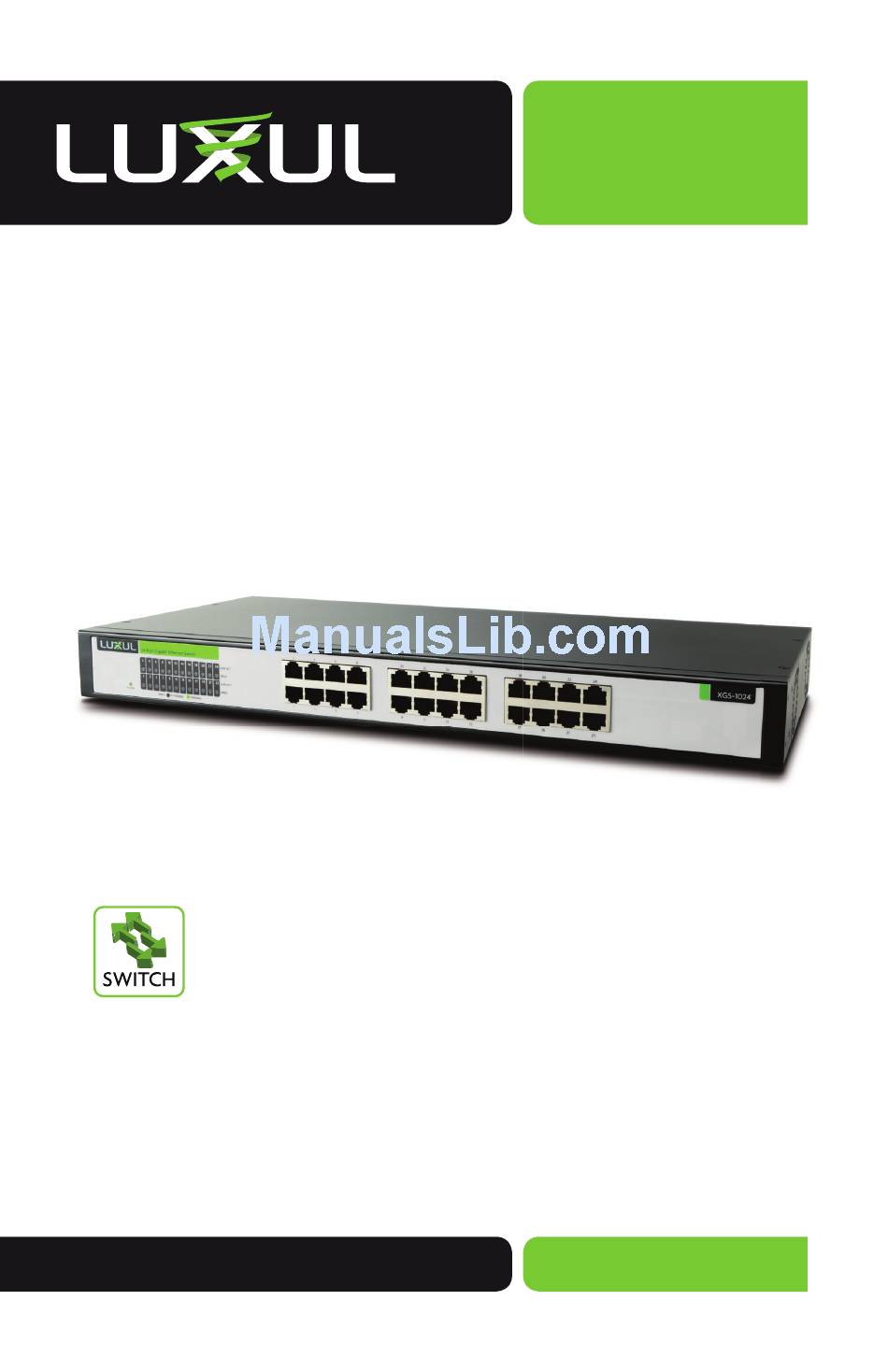

24-Port Gigabit Ethernet Switch
Use the XGS-1024 to:
Expand Your Home or Offi ce Network with 24-Ports
„
(10/100/1000)
Future Proof Your Network with Gigabit Speeds (10X
„
Performance of Fast Ethernet)
Create a VLAN for Optimizing VoIP, Video, Security, or Gaming
„
Applications (requires XMS-1024)
Quick Install Guide
Simply Connected
XGS-1024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XGS-1024 and is the answer not in the manual?

Questions and answers

Related Manuals for Luxul XGS-1024

Summary of Contents for Luxul XGS-1024

  • Page 1 Simply Connected Quick Install Guide XGS-1024 24-Port Gigabit Ethernet Switch Use the XGS-1024 to: Expand Your Home or Offi ce Network with 24-Ports „ (10/100/1000) Future Proof Your Network with Gigabit Speeds (10X „ Performance of Fast Ethernet) Create a VLAN for Optimizing VoIP, Video, Security, or Gaming „...

  • Page 2: Contact Luxul

    No part of this publication may be modified or adapted in any way, for any purposes without permission in writing from Luxul. The material in this manual is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design. No license is granted, either expressly or by implication or otherwise under any Luxul intellectual property rights.

  • Page 3: Package Contents

    HARDWARE DESCRIPTION Front Panel The front panel of the XGS-1024 includes 24 10/100/1000Mbps RJ45 ports on the right side and LED indicators on the left side. Each port has one Link/Activity LED and one 1000Mbps LED. There is also a power LED for indicating whether or not power is being applied to the XGS-1024.

  • Page 4: Led Indicators

    XGS-1024 Quick Install Guide LED Indicators The LED indicators of the XGS-1024 include 1 Power indicator, 24 numbered Link/ Activity indicators, and 24 1000Mbps indicators. These LED indicators show the operating status of the XGS-1024 and each switch connection. LED Indicators The following chart shows the LED indicators of the XGS-1024 along with an explanation of the indicator’s properties:...

  • Page 5: Preparing For Installation

    Before Connecting to the Network The XGS-1024 can be rack-mounted or used as a desktop switch. Before connecting to the network, please be aware of the following requirements: Install the XGS-1024 in a stable/safe place to avoid any possible damage „...

  • Page 6: Desktop Setup

    XGS-1024 INSTALLATION Installing the XGS-1024 in a Rack The XGS-1024 can easily be installed in a standard 19” rack. The XGS-1024 includes two mounting ears for installing and stabilizing the switch. For attaching the mounting ears and installing the switch within a rack, please refer to the following illustration: Rack-Mounting the XGS-1024 Using the included screws, attach the mounting ears to each side of the switch.

  • Page 7: Connecting Devices

    Simply Connected Connecting Devices Use standard Ethernet CAT5, CAT5e, or CAT6 cable to connect the XGS-1024 to a device as described below (CAT6 must be used in order to achieve full Gigabit bandwidth). The XGS-1024 will automatically adjust to the characteristics (speed/ duplex) of the device to which it is connected.

  • Page 8: Fcc Statement

    Consult the dealer or an experienced radio/TV technician for help. „ Hereby, Luxul, 14203 Minuteman Drive, Suite 201, Draper, Utah, 84020, declares that this Luxul XAP-1500 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
