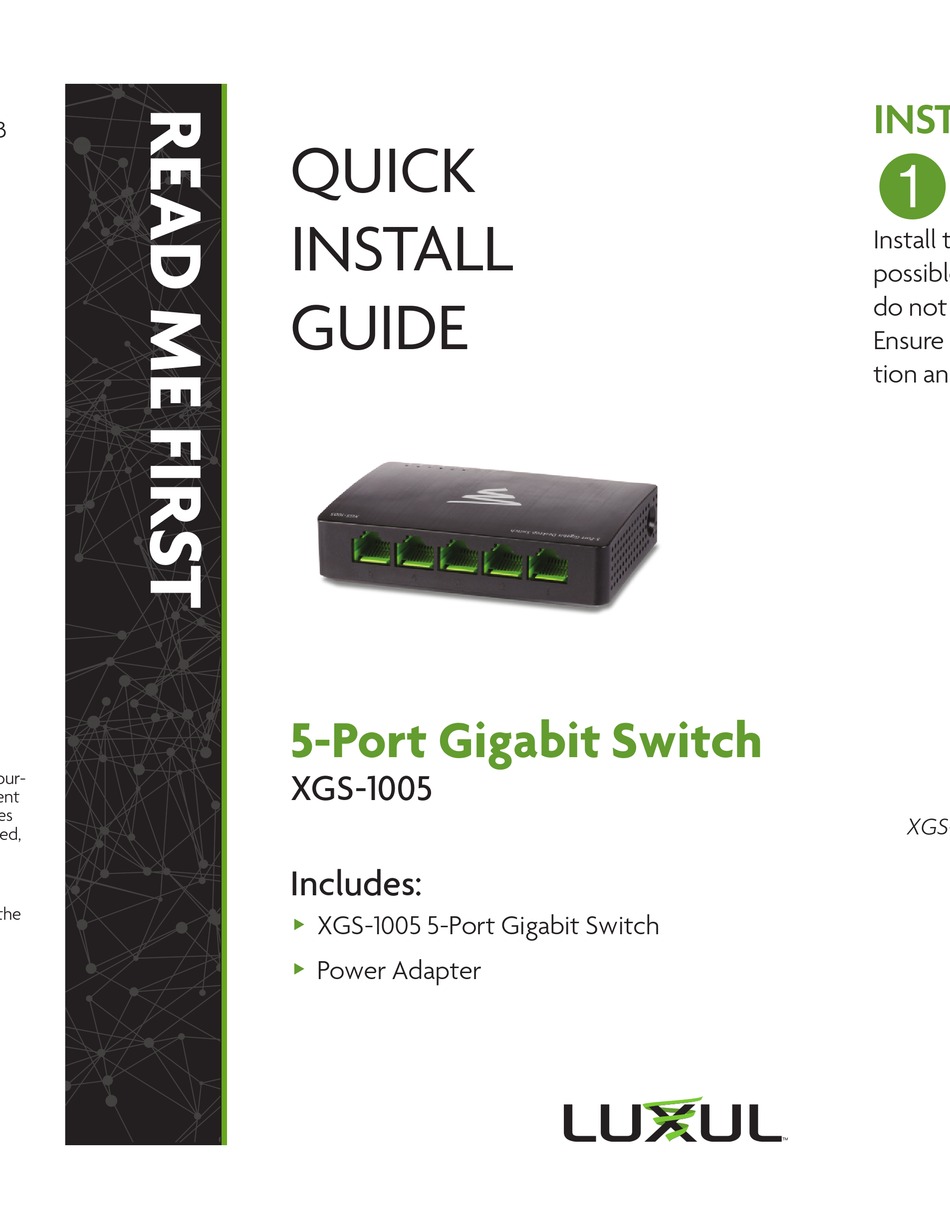

- Page 1 QUICK INSTALL GUIDE 5-Port Gigabit Switch XGS-1005 Includes: XGS-1005 5-Port Gigabit Switch „ Power Adapter „...
-
Page 2: Installation And Setup
INSTALLATION AND SETUP Physical Installation Install the XGS-1005 in a stable/safe place to avoid any possible damage. Avoid placement in direct sunlight and do not place heavy articles on the XGS-1005. Ensure there is adequate space for proper heat dissipa- tion and ventilation around the switch. -
Page 3: Connecting Power
Connecting Power Connect the included AC power adapter to a power outlet near the XGS-1005, then connect the power adapter plug to the switch power connector. XGS-1005 Rear Panel Detail View CAUTION: Use only the included power supply. If a different power supply is used, it... -
Page 4: Connecting Ethernet
Connecting Ethernet Connecting Devices Use standard Ethernet cable to connect the XGS-1005 to Ethernet devices as shown below. Luxul recommends Category-5, super Category-5 or Category-6 unshielded twisted pair (CAT5/CAT5e/CAT6 UTP). To ensure best performance and stable data transmission at 1000 Mbps, use Category-6 shielded twisted pair. -
Page 5: Connecting To A Router Or Other Switch
Connecting to a Router or Other Switch For best performance, and to maximize available ports, Luxul recommends connecting LAN devices to the XGS-1005, then connecting the switch to a router LAN port or another switch as shown in the illustration. Internet... -
Page 6: Hardware Description

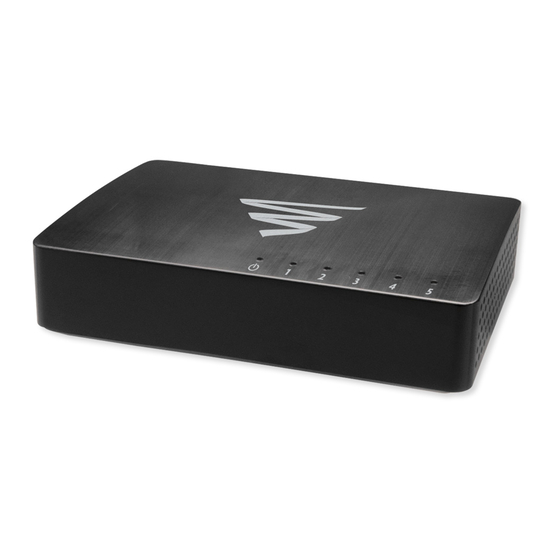

Hardware Description Front Panel The front panel of the XGS-1005 includes five Link/ Activity LEDs and one Power LED. For more information on these LEDs, refer to the table describing these indicators in the next section. XGS-1005 Front Panel View... -
Page 7: Led Indicators
LED Indicators The LED indicators of the XGS-1005 include one Power indicator and 5 Link/Activity indicators. These LED indicators show the operating status of the XGS-1005 and each switch connection. The following chart shows the LED indicators of the XGS-1005 along with a description of each indicator:... - Page 8 An implied license only exists for equipment, circuits and subsystems contained in this or any Luxul product. © Copyright 2016 Luxul. All rights reserved. The name Luxul, the Luxul logo, the Luxul logo mark and Simply Connected are all trademarks and or registered trademarks of Luxul Wireless, Inc.
