Page 1: Quick Install Guide
Simply Connected Quick Install Guide XMS-1010P 10-Port/8 PoE+ Gigabit Managed Switch Use the XMS-1010P to: Connect up to 8 IP Cameras or Other PoE-Enabled Devices Add PoE/PoE+ Capability to Your Network Optimize Your Network with VLAN,QoS and Network Security Features... -
Page 2: Document Conventions
No part of this publication may be modified or adapted in any way, for any purposes without permission in writing from Luxul. The material in this manual is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design. -
Page 3: Package Contents

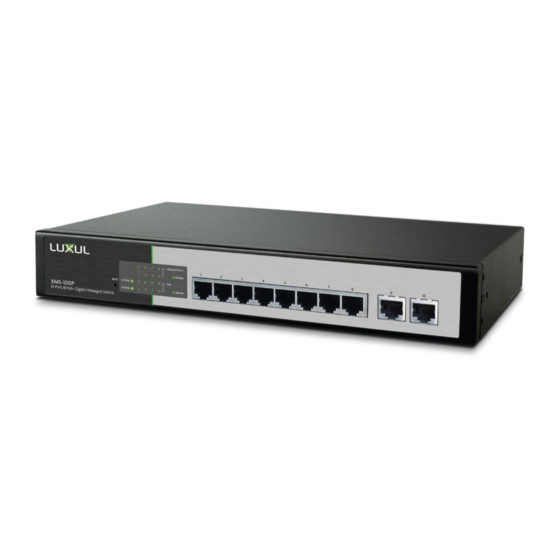

HARDWARE DESCRIPTION Front Panel The front panel of the XMS-1010P switch includes 8 1000Mbps RJ45 and Two Gigabit uplink ports and LED indicators on the left side. Each 1000Mbps PoE port has one Link/Activity LED, one 1000Mbps LED and one PoE LED, there are also two uplink LEDs, one Power LED, one System LED and a reset button. -
Page 4: Reset Button
DO NOT hold the button as this will factory default the switch To Restore the Default Settings: With the XMS-1010P powered on, press and hold the Reset button until the status of the System LED shows the following: On – flashing – off. You can now release the Reset button, and the switch automatically restores the factory default settings. -
Page 5: Installation Preparation
The rear panel provides an AC input socket and power on/off switch. Use the included power cable to connect the XMS-1010P to a surge protected outlet. The built-in high- performance switching power supply of the XMS-1010P supports an input range of: AC 100 ~ 240V, 50/60Hz 1.7A. -
Page 6: Before Connecting To The Network
Check the power cord to confi rm a secure connection. Avoid placement in direct sunlight. When installing the XMS-1010P on a fl at surface, attach the rubber feet to the bottom of the device to avoid scratching the surface. XMS-1010P INSTALLATION... -
Page 7: Network Connections
1000 Mbps full-duplex mode. All RJ-45 ports support Auto MDI/MDIX and can be used as ordinary ports or as Uplink ports. Any RJ-45 port can be used to connect the XMS-1010P to an Ethernet enabled device (including servers, routers, and other switches) without a crossover cable. -
Page 8: Advanced Settings
This device complies with part 15 of the FCC Rules. Hereby, Luxul, 14203 Minuteman Drive, Suite 201, Draper, Utah, 84020, declares that this Luxul XMS-1010P is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For a copy of this report send a self addressed stamped envelope to: Luxul CE, 14203 Minuteman Drive, Suite 201, Draper, Utah, 84020.
