Quick Install Guide

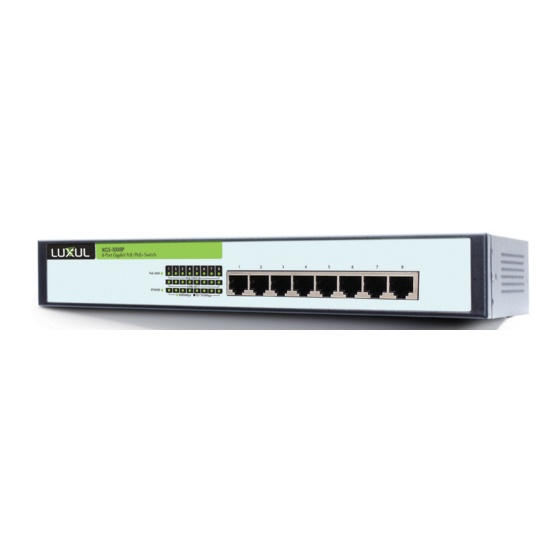

8-Port Gigabit PoE/PoE+ Switch
Use the XGS-1008P to:
Use the XGS-1008P to:
Cost-Effectively Add PoE/PoE+ Capability to Your Network
„
Deliver Power and Data for up to Eight PoE-Enabled Devices
„
with a Total Power Budget of 125 Watts
Simplify PoE Device Installation, Including IP Security
„
Cameras, VoIP Devices, and Wireless Aps
Future Proof Your Network with Gigabit Speeds (10X
„
Performance of Fast Ethernet)
Simply Connected
XGS-1008P
Advertisement
Table of Contents
Related Manuals for Luxul XGS-1008P
Summary of Contents for Luxul XGS-1008P
-
Page 1: Quick Install Guide
Simply Connected Quick Install Guide XGS-1008P 8-Port Gigabit PoE/PoE+ Switch Use the XGS-1008P to: Use the XGS-1008P to: Cost-Effectively Add PoE/PoE+ Capability to Your Network „ Deliver Power and Data for up to Eight PoE-Enabled Devices „ with a Total Power Budget of 125 Watts Simplify PoE Device Installation, Including IP Security „... -
Page 2: Document Conventions
Luxul. The material in this manual is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design. No license is granted, either ex- pressly or by implication or otherwise under any Luxul intellectual property rights. -
Page 3: Package Contents
LED, eight speed indicator LED’ s , eight Link/Activity LED’ s , eight PoE Status LED’ s and one PoE Max LED. These LED indicators show the operating status of the XGS-1008P. Please refer to the detailed description of these indicators in the Chart on page 3. -
Page 4: Preparing For Installation
XGS-1008P Quick Install Guide The following chart shows the LED indicators of the XGS-1008P along with an explanation of the indicator’ s properties: Color Status Description Power Green ON This indicator lights up when the XGS-1008P is powered — If this indicator is not lit, please check the power cable to ensure proper connection to the outlet and the XGS-1008P. -
Page 5: Installation Requirements
XGS-1008P INSTALLATION Installing the XGS-1008P in a Rack The XGS-1008P can easily be installed in a standard 19” rack. The XGS-1008P includes two mounting ears for installing and stabilizing the switch. For attaching the mounting ears and installing the switch within a rack, please refer to the following illustration: Rack-Mounting the XGS-1008P ©... -
Page 6: Desktop Setup
Attaching the Rubber Feet to the XGS-1008P Connecting Devices Use standard Ethernet CAT5, CAT5e or CAT6 cable to connect the XGS-1008P to a device as described below. The XGS-1008P will automatically adjust to the charac- teristics (speed/duplex) of the device to which it is connected. The PoE function is autosensing. -
Page 7: Connecting To A Router Or Other Switch
Connecting to a Router or Other Switch Connecting the XGS-1008P to a Router and Devices When a device is properly connected, the Link/ACT LED lights up green. Please refer to the LED Indicators section for defi nitions and troubleshooting. -
Page 8: Fcc Statement
„ Hereby, Luxul, 14203 Minuteman Drive, Suite 201, Draper, Utah, 84020, declares that this Luxul XGS-1008P is in compliance with the essential requirements and other relevant provisions of Directive 2006/95/EC. For a copy of this report send a self addressed stamped envelope to: Luxul CE, 14203 Minuteman Drive, Suite 201, Draper, Utah, 84020.
