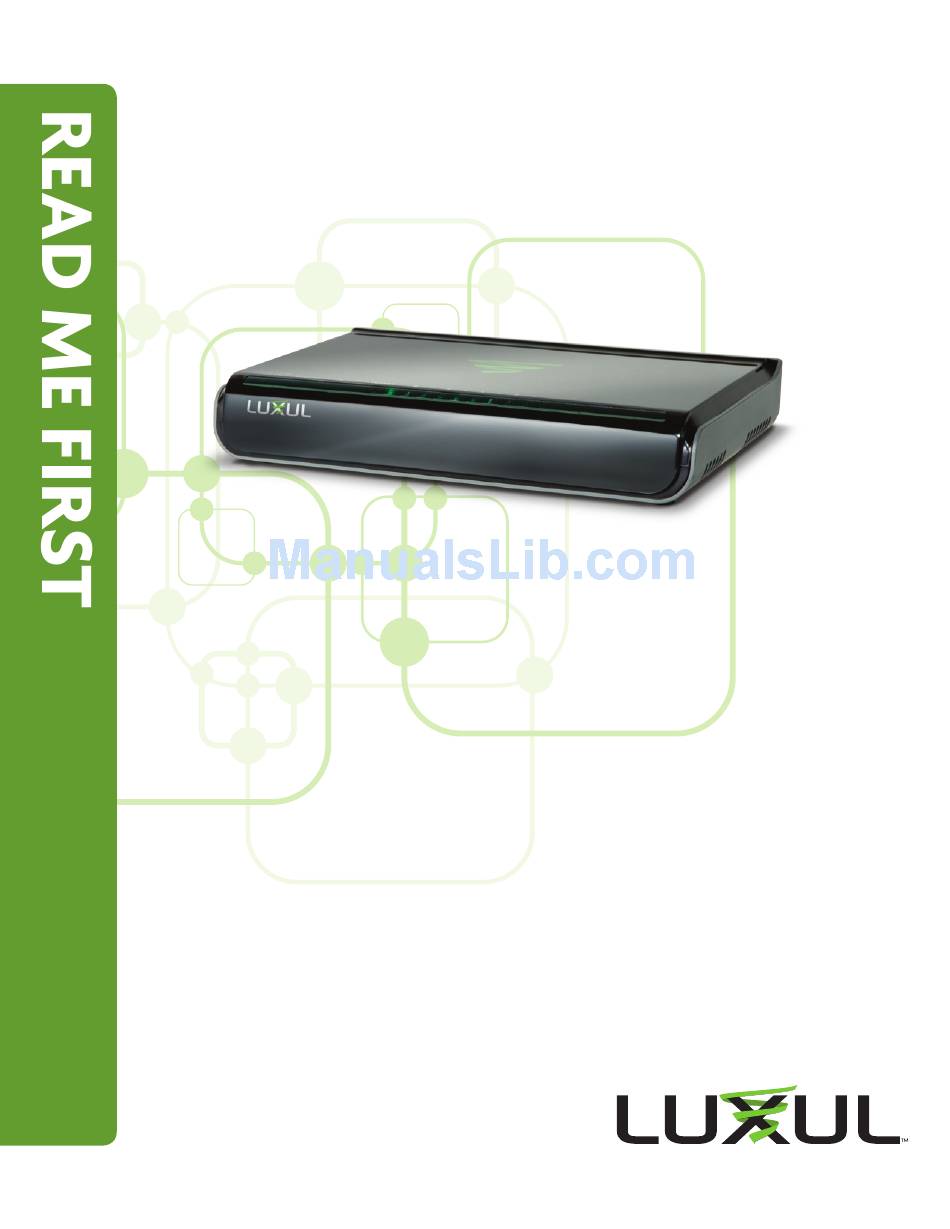

QUICK INSTALL GUIDE
8-Port Gigabit Desktop Switch
XGS-1008
Includes:
One:„XGS-1008„8-Port„Gigabit„Desktop„Switch
„
„
One:„Power„Adapter
„
„

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XGS-1008 and is the answer not in the manual?

Questions and answers

Related Manuals for Luxul XGS-1008

Summary of Contents for Luxul XGS-1008

  • Page 1 QUICK INSTALL GUIDE 8-Port Gigabit Desktop Switch XGS-1008 Includes: One:„XGS-1008„8-Port„Gigabit„Desktop„Switch „ „ One:„Power„Adapter „ „...

  • Page 2: Installation And Setup

    INSTALLATION AND SETUP Physical Installation Install„the„XGS-1008„in„a„stable/safe„place„to„avoid„any„possible„damage.„Avoid„ placement„in„direct„sunlight„and„do„not„place„heavy„articles„on„the„XGS-1008.„„ Ensure„there„is„adequate„space„for„proper„heat„dissipation„and„ventilation„ around„the„switch. XGS-1008 Front Panel and Side View Showing Ventilation...

  • Page 3: Connecting Power

    Connecting Power Connect„the„included„AC„power„adapter„to„a„power„outlet„near„the„XGS-1008,„ then„connect„the„power„adapter„plug„to„the„switch„power„connector. XGS-1008 Rear Panel Detail with DC Power Connector CAUTION: Use only the included power supply. If a different power supply is used, it could damage the XGS-1008.

  • Page 4: Connecting Ethernet

    Connecting Ethernet Connecting Devices Use„standard„Ethernet„cable„to„connect„the„XGS-1008„to„Ethernet„devices„ as„shown„below.„Luxul„recommends„Category-5,„super„Category-5„ or„Category-6„unshielded„twisted„pair„(CAT5/CAT5e/CAT6„UTP).„To„ ensure„best„performance„and„stable„data„transmission„at„1000„Mbps,„use„ Category-6„shielded„twisted„pair. Connecting the XGS-1008 to a Device When„a„device„is„properly„connected,„the„Link/Activity„LEDs„for„each„port„ lights„up„green/orange.„Please„refer„to„the„section„on„LED„Indicators„for„ definitions„and„troubleshooting.
  • Page 5 Connecting to a Router or Other Switch For„best„performance,„and„to„maximize„available„ports,„Luxul„recommends„ connecting„LAN„devices„to„the„XGS-1008,„then„connecting„the„switch„to„a„ router„LAN„port„or„another„switch„as„shown„in„the„illustration. Internet Connecting the XGS-1008 to a Router or Switch When„devices„are„properly„connected,„the„Link/Activity„LEDs„for„each„port„ light„up„green/orange.„Refer„to„the„section„on„LED„Indicators„for„definitions„ and„troubleshooting.

  • Page 6: Hardware Description

    Hardware Description Front Panel The„front„panel„of„the„XGS-1008„includes„eight„Link/Activity„LEDs„and„one„ power„LED.„For„more„information„on„these„LEDs,„refer„to„the„table„describing„ these„indicators„in„the„next„section. XGS-1008 Front Panel View XGS-1008 Rear Panel View...

  • Page 7: Led Indicators

    LED Indicators The„LED„indicators„of„the„XGS-1008„include„one„Power„indicator„and„8„Link/ Activity„indicators.„These„LED„indicators„show„the„operating„status„of„the„ XGS-1008„and„each„switch„connection. The„following„chart„shows„the„LED„indicators„of„the„XGS-1008„along„with„a„ description„of„each„indicator: Color Status Description Power The„XGS-1008„is„powered. Green The„XGS-1008„is„unpowered.„Check„ „ the„DC„power„supply„to„ensure„proper„ connection„to„the„outlet„and„switch. Link/„ The„XGS-1008„is„connected„at„ Green Activity 1000Mbps. The„XGS-1008„is„transmitting/receiving„ Blinking data„packets„at„1000Mbps. The„XGS-1008„is„connected„at„ Orange 10/100Mbps. The„XGS-1008„is„transmitting/receiving„ Blinking data„packets„at„10/100Mbps. Indicates„the„port„is„not„connected„to„ „ a„device.

  • Page 8: Legal And Regulatory Information

    Luxul„intellectual„property„rights.„An„implied„license„only„exists„for„equipment,„ circuits„and„subsystems„contained„in„this„or„any„Luxul„product.„ FCC Compliance This„device„complies„with„Part„15„of„the„FCC„Rules.„Operation„is„subject„to„the„ following„two„conditions:„(1)„this„device„may„not„cause„harmful„interference,„ and„(2)„this„device„must„accept„any„interference„received,„including„interfer- ence„that„may„cause„undesired„operation. FCC Statement—Wireless FCC 2.4GHz & 5GHz 802.11abgn This„equipment„has„been„tested„and„found„to„comply„with„the„limits„for„a„ Class„B„digital„device,„pursuant„to„Part„15„of„the„FCC„Rules.„ Hereby,„Luxul,„14203„Minuteman„Drive,„Suite„201,„Draper,„Utah,„ 84020,„declares„that„this„Luxul„XGS-1008„is„in„compliance„with„the„ essential„requirements„and„other„relevant„provisions„of„Directive„ 1995/5/EC. For„a„copy„of„this„report„send„a„self„addressed„stamped„envelope„„ to:„Luxul„CE,„14203„Minuteman„Drive,„Suite„201,„Draper,„Utah,„84020. Industry„Canada„(RSS-Gen„Issue„4) CAN„ICES-3(B)/NMB-3(B)„ Sales Technical Support P:„801-822-5450„ P:„801-822-5450„Option„3„ E:„sales@luxul.com E:„support@luxul.com © 2016 Luxul. All Rights Reserved. LUX-QIG-XGS-1008 0161609...
