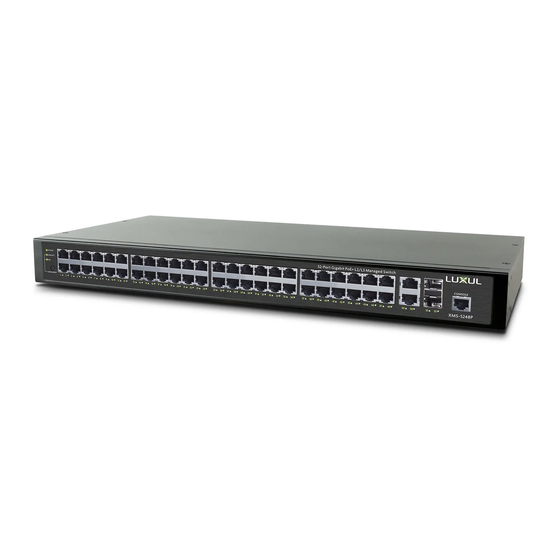

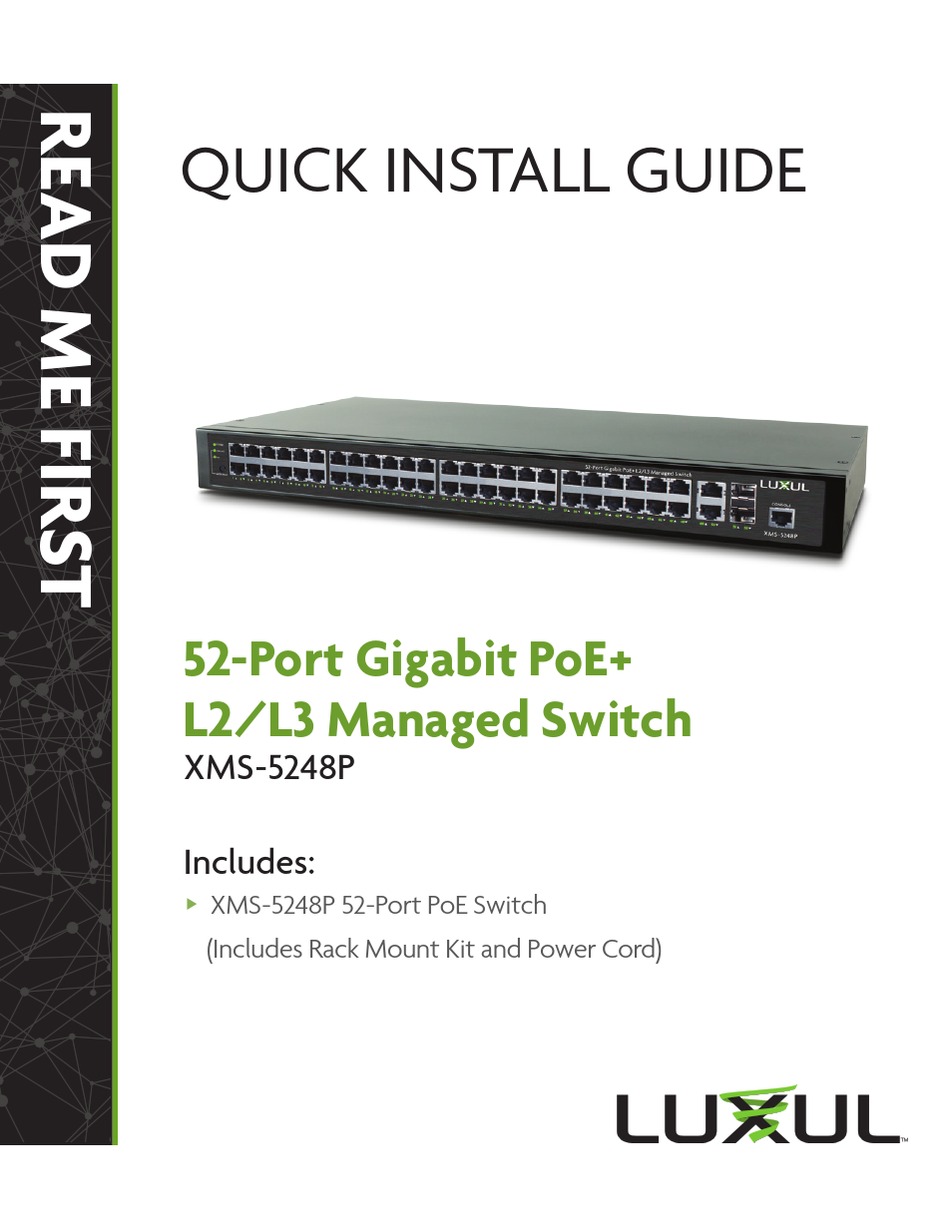

- Page 1 QUICK INSTALL GUIDE 52-Port Gigabit PoE+ L2/L3 Managed Switch XMS-5248P Includes: XMS-5248P 52-Port PoE Switch „ (Includes Rack Mount Kit and Power Cord)
- Page 2 INSTALLATION AND SETUP Physical Installation The XMS-5248P can easily be installed in a standard 19” rack. Two mounting ears are included for installing and stabilizing the switch. When attaching the mounting ears and installing the switch in a rack, please refer to the following illustration:...
- Page 3 1000 Mbps full-duplex mode. Ports 1-48 are PoE+ and are enabled by default. Ports 49 and 50 are Gigabit Ethernet only (non PoE). Use the included power cable to connect the XMS-5248P to a surge- protected outlet. The AC input socket is on the rear panel. The built-in power supply supports 100~240VAC at 50/60Hz.
- Page 4 Preparing for Access IP Addressing If the XMS-5248P is connected to a network with a 192.168.0.X address scheme, and your computer shares a similar address on the same network, you can skip to the next step, Access and Setup .
- Page 5 IP configuration and routing, PoE, VLANs, Spanning Tree, and Stacking. Hardware Operation Front Panel The front panel of the XMS-5248P includes 52 Gigabit Ethernet RJ-45 ports, two Gigabit SFP+ ports, status-, link- and PoE LEDs, a Mode/Reset button and an RJ-45 Console port.
- Page 6 Rear Panel The Rear Panel of the XMS-5248P features a standard AC power input and a redundant power supply (RPS) connector for use with an external power supply. LED Indicators The LED indicators on the XMS-5248P include System, Link/Act and PoE LEDs, and an LED for each port.
- Page 7 Link/Act and PoE LEDs turn off, then release the Reset button and the switch automatically restores factory default settings and reboots. Once the System LED starts flashing again, the XMS-5248P is running with factory defaults. CAUTION: Please note that restoring Default Settings will remove...
- Page 8 Luxul product. © Copyright 2016 Luxul. All rights reserved. The name Luxul, the Luxul logo, the Luxul logo mark and Simply Connected are all trademarks and or registered trademarks of Luxul Wireless, Inc. All other trademarks and registered trademarks are property of their respective holders.
