LUX-QIG-XFS-1084P-v1 05161609

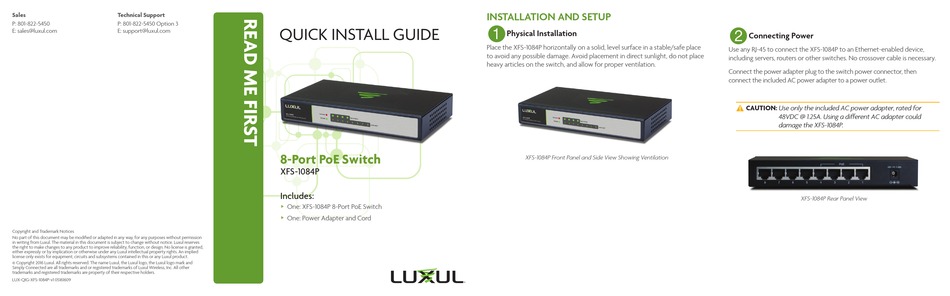

QUICK INSTALL GUIDE
8-Port PoE Switch
XFS-1084P
Includes:
One: XFS-1084P 8-Port PoE Switch
„
„ One: Power Adapter and Cord
INSTALLATION AND SETUP
1
Physical Installation
Place the XFS-1084P horizontally on a solid, level surface in a stable/safe place
to avoid any possible damage. Avoid placement in direct sunlight, do not place
heavy articles on the switch, and allow for proper ventilation.
XFS-1084P Front Panel and Side View Showing Ventilation
2
Connecting Power
Use any RJ-45 to connect the XFS-1084P to an Ethernet-enabled device,
including servers, routers or other switches. No crossover cable is necessary.
Connect the power adapter plug to the switch power connector, then
connect the included AC power adapter to a power outlet.
CAUTION: Use only the included AC power adapter, rated for
c
48VDC @ 1.25A. Using a different AC adapter could
damage the XFS-1084P.
XFS-1084P Rear Panel View
