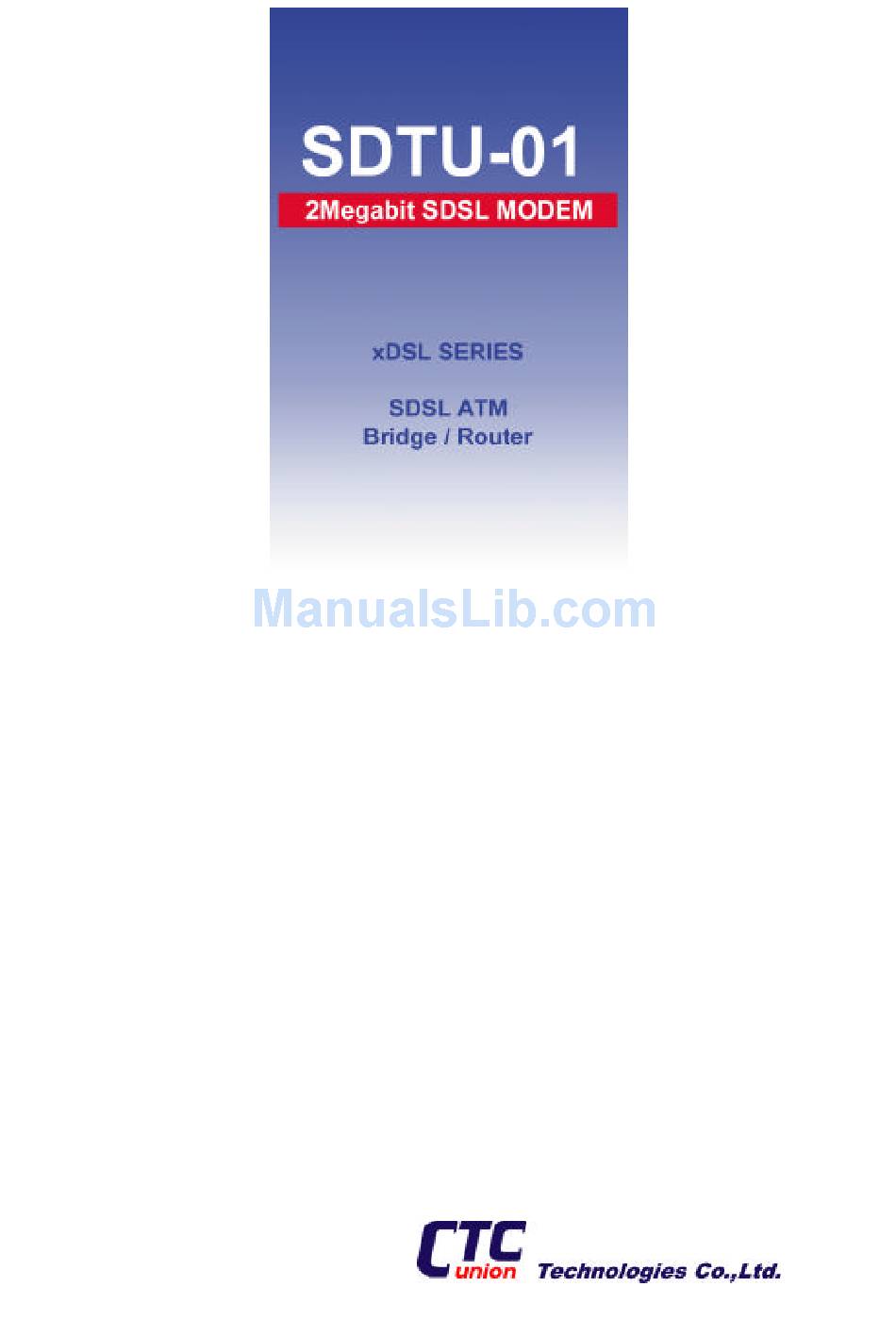

  • Page 1 User's Manual Revision: 2.1a...

  • Page 3: Table Of Contents

    September 13, 2000 Revision Number:2.1a SDSL Modem Overview ............1 Features............1 Packaging............1 Appearance............ 2 Hardware Installation ........3 Management........... 4 Default values..........5 Software Upgrade........... 6 Appendix A. Console Setup ........7 Appendix B. Command Line Interface...... 8 Appendix C.

  • Page 4: September

    September 13, 2000 Revision Number:2.1a SDSL Modem ............2 IGURE RONT ANEL ............2 IGURE ANEL ........3 IGURE ARDWARE NSTALLATION ............9 IGURE COMMAND TREE Manual Date Notes Revision V2.0 May 25, 2000 Software: V2.11B-H30.02-F45.108 Original revision V2.0a June 05,2000 Software:2.50B-H30.02-F45.111 V2.01 July 06, 2000...

  • Page 5: Overview

    Overview The SDTU-01/ET10 is an SDSL modem supporting ATM bridging and routing, also 4 10BaseT Ethernet ports at the DTE side. The SDSL front end provides symmetrical data rates from 144Kbps up to 2320Kbps with programmable rate at 8Kbps step. The SDTU-...

  • Page 6: Appearance

    Appearance Front Panel Alarm: Blinks while booting up, and On when there is an error, continuous “On” indicates internal error WAN Status: Blinks while training with DSLAM and On when SDSL link is ready LINK Status: On when one of Ethernet ports is properly connected to a LAN or PC Activity: Blinks while transmitting or receiving packets over one of Ethernet ports...

  • Page 7: Hardware Installation

    LINE port of RJ-11 socket. 2. Use a RJ-45 cable, as (2) indicated in Figure 3, to connect to the LAN or a PC with Ethernet adapter SDTU-01/ET10 installed. Note: Be sure to use RJ45 crossover cable while connecting to a hub.

  • Page 8: Management

    Management supports simple, flexible and easy-to-operate SDTU-01/ET10 methods for management purpose. The can be SDTU-01/ET10 managed via the following paths, refer to Appendix B for detailed information. ü Console port – use the RS232 cable for connecting SDTU- to an console terminal or an PC running terminal...

  • Page 9: Default Values

    Default values SDTU-01/ET10 is pre-configured with the following parameters; user may also re-load the default parameters by selecting Default from the main menu. LAN and VC setting WAN and SDSL Ethernet (local) IP: 0.0.0.0 Side select: CPE (RT) side Subnet mask: 0.0.0.0...

  • Page 10: Software Upgrade

    Then reboot with new software. SDTU-01/ET10 NOTE: Strictly maintain stable power to SDTU-01/ET10 while upgrading software, if power failed during the upgrading process, contents in the memory could be destroyed and the system will hang. In such case you must call the...

  • Page 11: Appendix A. Console Setup

    On Windows 98 or Windows NT: start Tool Bar à Program à Accessory à Hyper Terminal Group à Double Click Hypertrm.exe à Enter Connection Name à Select Icon à Click OK Select COM port to communicate with SDTU-01/ET10 − Choose direct to COM1 or COM2 à click OK...

  • Page 12: Appendix B. Command Line Interface

    Appendix B. Command Line Interface The command line interface allows you to change SDSL, ATM and Ethernet parameters, and display the status as well. Some commands must be followed by parameters for proper configuration to the modem, conventionally there shall be a “space” between a command and its corresponding parameters.
  • Page 13 default ipoa delwanip setqos setwanip show dhchpclient dhcpserver setdhcp setip show list -setpass manage addpatin delpatin setpat show ping adduser chpass deluser s e t q o s show m a i n m e n u quick delpvc r1483 pfilter setpvc setqos...
  • Page 14 COMMAND LINE INTERFACE CONVENTIONS Help help <command> home HELP or ? Lists all commands at the current level menu and follow by simple description of each command Syntax: help Parameters: Example: > help Syntax: Parameters: > ? Example: HELP <command> or ? <command> Display the description and usage of particular command in each level.
  • Page 15 command Response: terminal -Configure the device to COE or CPE mode Usage: terminal <coe>|<cpe> > coe - COE mode is selected > cpe - CPE mode is selected HOME Go back to the upper level menu Syntax: home Parameters: Example: >...
  • Page 16 IPOA Enter to IPOA menu. More commands under IPOA menu, see detail after. Syntax: Ipoa Parameters: Example: > ipoa Enter to LAN menu. More commands under LAN menu, see detail after. Syntax: Parameters: Example: > lan LIST Display the status for each enabled VC Syntax: List Parameters:...
  • Page 17 TxPkts (transmitted packets)……………………………56 RxPkts (received packets)…………...37/0 (correct/error) TxVPI/VCI (transmitted VC)………………..…………0/35 RxVPI/VCI (received VC)……………………………..0/35 MANAGE Enter to MANAGE configuration menu. More commands under MANAGE menu, see detail after. Syntax: Manage Parameters: Example: > manage> Enter to PAT configuration menu. More commands under PAT menu, see detail after.
  • Page 18 Example3: > ping xxx.xxx.xxx.xxx Response: >ip: ping - no reply received Explanation: Wrong IP address If no reply received, the system will ping same IP address continually until the system receiving reply or pressing “Esc” to break. PPPOA Enter to PPPOA menu. More commands under PPPOA menu, see detail after.
  • Page 19 WAN IP : 210.62.5.183[Enter] Dynamic (d) / Static (s): d[Enter] RIP1(r1)/ RIP2(r2)/ RIP 1&2(r1&2): r1[Enter] Add another PVC ? (y/n): y[Enter] VPI(0-4095): 2[Enter] VCI(1-65535): 32[Enter] WAN IP : 210.62.5.187[Enter] Dynamic (d) / Static (s): s[Enter] Gateway : 210.62.5.175[Enter] Add another PVC ? (y/n): n[Enter] Setup Configuration FUNCTION: IPOA Ethernet IP: 210.62.2.134...
  • Page 20 VCI(1-65535): 33[Enter] Authentication( PAP(p)/CHAP(c)/None(n) ): p[Enter] User name: xavi[Enter] Password: ********[Enter] Setup Configuration FUNCTION: PPPOA Ethernet IP: 210.62.2.134 Subnet Mask: 255.255.255.0 # VPI AUTH USERID 1: 6 xavi Preserve the configuration (y/n) : n Continue quick (y/n) : n Configuration will have no effect until after save and restart.
  • Page 21 Example: > restart Response: NBfs5 Helium Family PP flash boot 6.1.0.25 (22 October 1999) (c) Copyright Virata 1999 SDRAM size = 0x800000, type = 0x5 Booting... >> System start... RTABLE Enter to RTABLE menu. More commands under RTABLE menu, see detail after.
  • Page 22 SDSL Enter to SDSL configuration menu. More commands under SDSL menu, see detail after. Syntax: sdsl Parameters: Example: > sdsl> SHOW Display the configuration of each enabled VC and Ethernet Syntax: show Parameters: > show Example: Response: Ethernet ip: 210.62.2.134 Subnet mask: 255.255.255.0 DHCP Server setup: range1: 0.0.0.0 to 0.0.0.0...
  • Page 23 The RFC1483 bridge setting: FUNCTION VPI/VCI CLASS PCR(KBits) Spanning Pkt Filter Rfc1483 8/35 ubr 640 Disable ANY The IPoA setting: FUNCTION VPI/VCI CLASS PCR Wan IP GatewayIP/RIP IPoA 8/32 ubr 210.62.2.195 IPoA 5/33 ubr 210.62.2.198 210.62.2.185/0 The PPPoA dial out setting: Function VPI/VCI CLASS PCR(KBits) UserID/Authentication PPPoA 2/32 ubr xavi/CHAP...
  • Page 24 Subnet mask………………………………..255.255.255.0 Information for DHCP server setting: Range1 (First IP to last IP address).….0.0.0.0 to 0.0.0.0 Max lease time (infinite)..……..………….86400 seconds Information for DHCP client setting: Lease time…………………………………….900 seconds Retry (retry time)…………………………... 2000 seconds Reboot (reboot time)…………………………500 seconds Backoff-cutoff (backoff-cutoff time)…………240 seconds Timeout (timeout time)………………………300 seconds Information for IPoA setting: Function (Protocol in use)……………………………IPoA...
  • Page 25 UserID (User ID)………………………………………xavi Authentication (Authentication protocol)…………..CHAP (CHAP: challenge handshake authentication protocol, PAP: password authentication, none: neither ) Information for RFC1483 bridge setting: Function (Protocol in use)………………………RFC1483 VPI/VCI (Connected VC channel)…………………...8/35 CLASS (define QoS on the ATM network)……………ubr PCR (Peak Cell Rate)….…………640 (cells per second) Spanning (Spanning tree setting)…………………disable Filter (packet...
  • Page 26 I/f name|Wanip (enabled interface and WAN IP address)………………………………………………pppoa Port/Protocal (Port number and transmitted Protocol in use)………………………………………………….434/udp Server IP (global server IP address)………192.62.2.134 Display the software version number Syntax: Parameters: Example: > ver IPOA-LEVEL COMMANDS Delwanip setqos setwanip show DELWANIP Disable VC by giving a VPI and VCI numbers defined by setwanip command previously.
  • Page 27 SETQOS Configure each enabled VC in IPoA that should use UBR, CBR or VBR (define the Quality of Service on the ATM network), also set the speed of the ATM link in cells per second Syntax: setqos [<vpi>/]<vci> <ubr|cbr|vbr(nrt)> <pcr> Parameters: vpi: decimal value of VPI number, 0 to 4095 vci: decimal value of VCI number, 1 to 65535...
  • Page 28 SHOW Display the configuration of IPoA routing setting. Syntax: Show Parameters: Example: > ipoa> show Response: The IPoA setting: FUNCTION VPI/VCI CLASS PCR Wan IP GatewayIP/RIP IPoA 8/32 ubr 210.62.2.195 IPoA 5/33 ubr 210.62.2.198 210.62.2.185/0 Explanation: Information for IPoA setting: Function (Protocol in use)……………………………IPoA VPI/VCI (Connected VC channel)……………………8/32 CLASS (define QoS on the ATM network)……………ubr...
  • Page 29 DHCPCLIENT This command is used to setup the timing behavior of the DHCP client Syntax: dhcpclient <lease time> [<retry> [<backoff-cutoff> [<timeout>]]] Parameters: lease time: client lease time, the default is 900 seconds. retry: retry time, the default is 2000 seconds. backoff-cutoff: backoff-cutoff time, the default is 240 seconds.
  • Page 30 default is 86400 seconds Example: > lan> dhcpserver 192.168.2.32 192.168.2.126 Setup IP address of range 1 from 192.168.2.32 to 192.168.2.126 SETDHCP Select DHCP mode 0f the unit setdhcp [server|client|disable|<auto [<waiting time>]>] Syntax: Parameters: “server”: Select unit as server mode “client”: Select unit as client mode “disable”...

  • Page 31: Information For Dhcp Server Setting: Range1 (First Ip To Last Ip Address)

    Subnet mask is default = 255.255.255.0 SHOW Display the current configuration of Ethernet and the DHCP setting. Syntax: show Parameters: Example: > lan> show Response: Ethernet ip: 210.62.2.134 Subnet mask: 255.255.255.0 DHCP Server setup: range1: 0.0.0.0 to 0.0.0.0 max lease time: 86400 DHCP Client setup: lease time: 900 retry: 2000 reboot: 500...

  • Page 32: Max Lease Time (Infinite)

    Max lease time (infinite)..……..………….86400 seconds Information for DHCP client setting: Lease time…………………………………….900 seconds Retry (retry time)…………………………... 2000 seconds Reboot (reboot time)…………………………500 seconds Backoff-cutoff (backoff-cutoff time)…………240 seconds Timeout (timeout time)……………………….300 seconds MANAGE MENU COMMANDS SETPASS Change password Syntax: setpass Parameters: Up to 18 alphanumeric characters. Upper case and lower case are different numbers.
  • Page 33 Confirm password again: **** Password has been changed! Saving configuration...Configuration saved. Explanation: You will be asked to key in old password. Type the new password and confirm the new password again. Example 3: For disabling old password: > manage> setpass Response: Old Password: ******** New Password (press ENTER to disable):...
  • Page 34 > pat> addpatin pppoa 434 udp 192.168.2.134 Example: Select PPPoA to configure port number=434 into PAT IP=192.168.2.134 using UDP transmitted protocol DELPATIN Delete PAT address defined by ADDPATIN command previously Syntax: delpatin <all>|<number> Parameters: “all”: delete all NAT address number: one decimals, using show command to check this number, assign by system when the user add PAT address Example:...

  • Page 35: Userid: User Id

    IPoA (protocol in use and enabled interface IP address)…….………………………………..210.62.2.195 PPPoA (protocol in use and enabled interface IP address)…….……………………………???.???.???.??? (Before get IP from service provider) Information for PAT incoming table: No. (PAT table number, assign by system)……………..1 I/f name|Wanip (enabled interface and WAN IP address)………………………………………………pppoa Port/Protocal (Port number and transmitted Protocol in use)………………………………………………….434/udp...

  • Page 36: Authentication (Authentication Protocol)

    User account added successfully. vpi=2, vci=32, user ID=xavi, using CHAP authentication protocol CHPASS Change user password Syntax: chpass Parameters: Up to 18 alphanumeric characters. Upper case and lower case are different numbers. Example 1: For changing old password: > pppoa> chpass Response: Old Password: **** New Password: ****...

  • Page 37: Pcr (Peak Cell Rate)

    vpi: decimal value of VPI number, 0 to 4095 Parameters: vci: decimal value of VCI number, 1 to 65535 “ubr”: Unspecified Bit Rate “cbr”: Constant Bit Rate “vbr”: Variable Bit Rate pcr: Peak Cell Rate, 0 to 800 cells per second Example: >...
  • Page 38 DELPVC Disable VC enabled by setpvc command previously delpvc Syntax: Parameters: >r1483> delpvc Example: Disable VC in configuration setting PFILTER Packet filtering control on a specific VC Syntax: pfilter [<vpi>/]<vci> <any|ip|pppoe> Parameters: vpi: decimal value of VPI number, 0 to 4095. vci: decimal value of VCI number, 1 to 65535.
  • Page 39 SETQOS Configure each enabled VC in r1483 that should use UBR, CBR or VBR (define the Quality of Service on the ATM network), also set the speed of the ATM link in cells per second setqos [<vpi>/]<vci> <ubr|cbr|vbr(nrt)> <pcr> Syntax: vpi: decimal value of VPI number, 0 to 4095.
  • Page 40 The RFC1483 bridge setting: Response: FUNCTION VPI/VCI CLASS PCR(KBits) Spanning Pkt Filter Rfc1483 8/35 ubr 640 Disable ANY Information for RFC1483 bridge setting: Explanation: Function (Protocol in use)………………………RFC1483 VPI/VCI (Connected VC channel)…………………...8/35 CLASS (define QoS on the ATM network)……………ubr PCR (Peak Cell Rate)….…………640 (cells per second) Spanning (Spanning tree setting)…………………disable Filter (packet...

  • Page 41: No. (Routing Table Number, Assign By System)

    Configure destination IP=192.169.2.145, subnet mask=255.255.255.0 and gateway IP=192.168.2.58 DELIPROUTE Delete routing information defined by addiproute command previously Syntax: deliproute <all>|<number> Parameters: “all”: delete all routing information in the routing table number: one decimals, using show command to check this number, assign by system when the user add routing table Example: >...
  • Page 42 SDSL MENU COMMANDS: auto cell dbit default Enable rate scramble smbit Status terminal AUTO Enable auto-baud rate function to allow CPE to follow the speed of CO terminal or disable auto-baud rate function This function is currently not supported Syntax: auto <disable>|<enable>...
  • Page 43 Configure data bit to normal polarity DEFAULT Set SDSL configuration back to factory setting Syntax: default Parameters: Example: >sdsl> default Response: Set SDSL configuration back to factory setting The default: terminal - cpe auto - disable rate - 2320 smbit - reverse dbit - normal...
  • Page 44 Set SDSL line rate to 160Kbps. Example 2: > sdsl> rate 155 Response: rate - Manually configure the SDSL line rate can use 144 <= (n*8) <= 2320 K SCRAMBLE Enable/Disable scrambling on ATM cell scramble <enable>|<disable> Syntax: Parameters: “enable”: enable scrambling “disable”: disable scrambling Example: >sdsl>...
  • Page 45 dbit - normal scramble - enable cell - enable SDSL Module -> enable Status: Bitpump F/W Version: 4.5 Bitpump: present CO/RT Select: cpe Auto Rate: disable Rate: 2320 Sign/Magnitude Bit Sequence: reverse Data Bit Polarity: normal DSL Status: normal operation Noise Margin: -16.0 Explanation: Information for SDSL configuration setting:...
  • Page 46 TERMINAL Configure modem to COE or CPE terminal Syntax: terminal <coe>|<cpe> Parameters: “coe”: central office equipment “cpe”: remote terminal Example: >sdsl> terminal coe Configure unit as central office equipment, in order for point-to-point application...

  • Page 47: Appendix C. Specifications

    Appendix C. Specifications Hardware Specifications LAN Interface • Type -- 10BaseT Ethernet, IEEE 802.3 • Connector -- 4* RJ-45 WAN -- SDSL Line I/F • Data Rate: 144Kbps to 2320Kbps • Rate adaptive step: 8Kbps • Line Code: 2B1Q • Line Impedance: 135 Ω...

  • Page 48: Software Specifications

    Software Specifications n ATM • ATM Cell over SDSL, AAL5 • Support 1 PVC for RFC1483 bridge, 8PVCs for IPoA routing and 1 PVC for PPPoA routing • Support UBR, CBR & VBR • IP over ATM • PPP over ATM n Bridging •...
  • Page 50 CTC Union Technologies Co., Ltd. Far Eastern Edison Science and Technologies Center (Nei-Hu HI-TEC Park) 6F-3, Lane 360, Nei-Hu Road, Section 1 Nei-Hu, Taipei, Taiwan Phone:(886) 2.2659.1021 (Rep) Fax:(886) 2.2799.1355 E-mail: ctcu@ms2.hinet.net http://www.ctcu.com...
