User's Manual
Revision: 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SDTU-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CTC Union SDTU-01

Summary of Contents for CTC Union SDTU-01

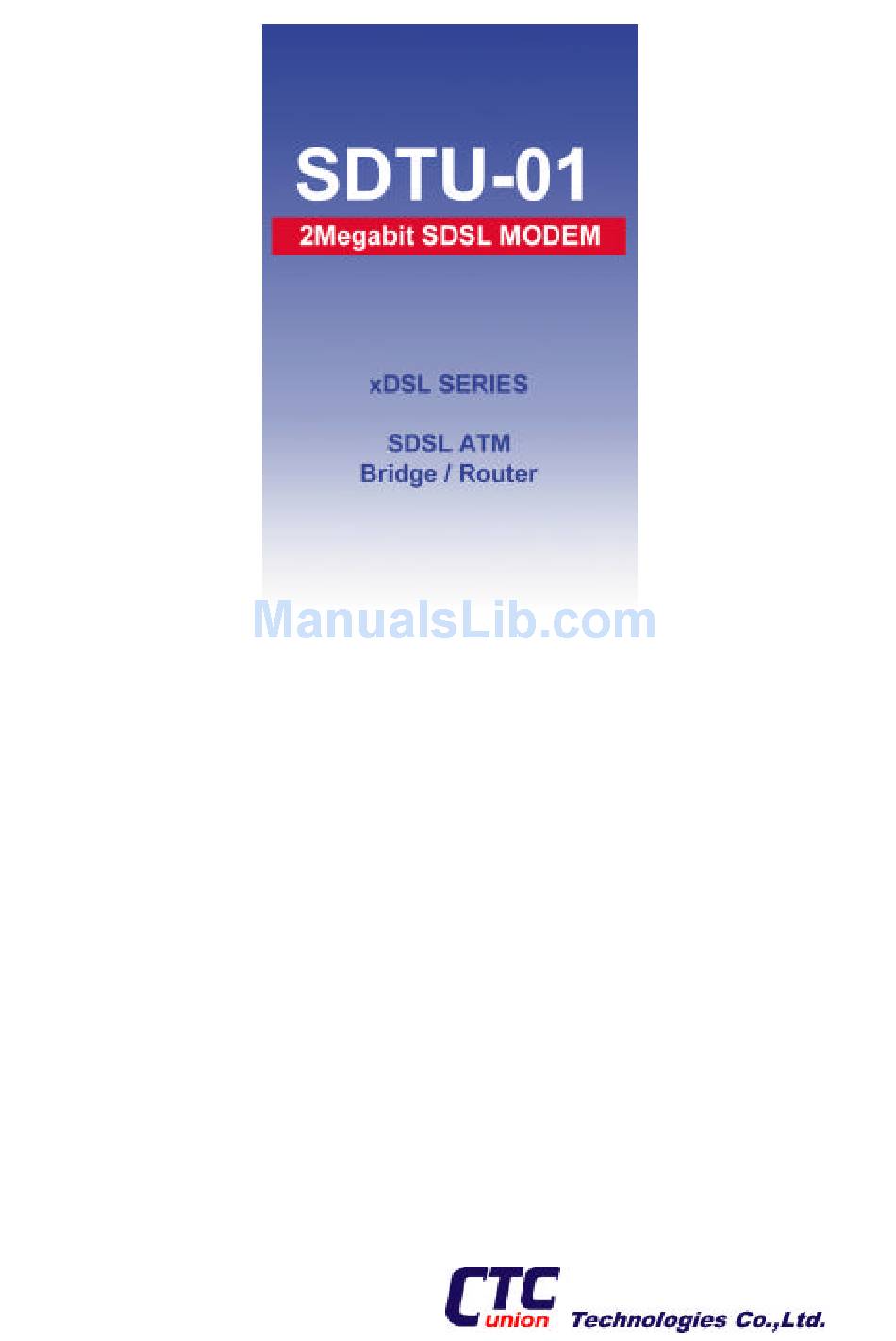

  • Page 1 User's Manual Revision: 2.0...

  • Page 2: Table Of Contents

    ............... 2 Hardware Installation..........3 Management .............. 4 Default values ............5 Software Upgrade ............6 Appendix A. Console Setup ..........7 Appendix B. Command Line Interface......... 8 Appendix C. Specifications ..........25 Hardware Specifications..........25 Software Specifications ..........26 SDTU-01/ET10...
  • Page 3 May 18, 2000 Revision Number: 2.0 SDSL Modem 1: F ..............2 IGURE RONT ANEL 2: R ..............2 IGURE ANEL 3: H ..........3 IGURE ARDWARE NSTALLATIONS ..............9 IGURE COMMAND TREE SDTU-01/ET10...
  • Page 4 May 18, 2000 Revision Number: 2.0 SDSL Modem Revision Date Notes V2.0 May 25, 2000 Software: 2.11B-H30.02-F45.108 SDTU-01/ET10...

  • Page 5: Overview

    Revision Number: 2.0 SDSL Modem Overview The SDTU-01/ET10 is an SDSL modem supporting ATM bridging with 4-port 10Base-T Ethernet hub. The SDSL front end provides symmetrical data rates from 144Kbps up to 2320Kbps in programmable rate steps of 8Kbps. The SDTU-01/ET10 can be configured to inter-operate with SDSL DSLAM or to support Point-to- Point data transmission applications by flexible CO/RT configuration.

  • Page 6: Appearance

    Green LED*4, On while corresponding Ethernet port is connected. Blinks while transmitting or receiving packets RJ45*4, for connection to LAN or PC DB9, serial port for connection to ASCII data terminal Power Jack, for connection to an AC-DC power adapter, 12VDC, 1A Figure 2: Rear Panel SDTU-01/ET10...

  • Page 7: Hardware Installation

    LINE port of RJ-11 socket. 2. Use a RJ-45 cable, (item 2) indicated in Figure 3, to connect to the LAN or a PC with Ethernet adapter SDTU-01/ET10 installed. Note: Be sure to use RJ-45 cross-over cable when connecting to a hub.

  • Page 8: Management

    May 18, 2000 Revision Number: 2.0 SDSL Modem Management supports simple, flexible and easy-to-operate SDTU-01/ET10 methods for management purposes. The can be SDTU-01/ET10 managed via the following paths, refer to Appendix B for detailed information. ü Console port – use the RS-232 cable for connecting...

  • Page 9: Default Values

    May 18, 2000 Revision Number: 2.0 SDSL Modem Default values SDTU-01/ET10 is pre-configured with the following parameters; the user may also re-load the default parameters by selecting Default from the main menu. LAN and VC setting WAN and SDSL Ethernet (local) IP: 192.168.2.1 Side selected: CPE (RT) side Subnet mask: 255.255.255.0...

  • Page 10: Software Upgrade

    ü with new software. Then reboot SDTU-01/ET10 NOTE: Strictly maintain stable power to SDTU-01/ET10 while upgrading software. If power fails during the upgrading process, contents in the memory could be destroyed and the system may hang. In such a case, you must call the dealer or system integrator for repair.

  • Page 11: Appendix A. Console Setup

    On Windows 98 or Windows NT: start Tool Bar à Program à Accessory à Hyper Terminal Group à Double Click Hypertrm.exe à Enter Connection Name à Select Icon à Click OK Select COM port to communicate with SDTU-01/ET10 − Choose direct to COM1 or COM2 à click OK...

  • Page 12: Appendix B. Command Line Interface

    Note 1: When password is applied, the connection will time out after 3 minutes if there is no access to the modem. Password entering is necessary to resume connection. Note 2: All settings will become effective only after being saved. SDTU-01/ET10...
  • Page 13 Figure 4: Command Tree SDTU-01/ET10...
  • Page 14 > coe - COE mode is selected > cpe - CPE mode is selected Syntax: ? <command> Parameters: command: Enter each command >sdsl> ? terminal Example: Display the description and syntax of terminal command terminal -Configure the device to COE or CPE mode Response: SDTU-01/ET10...
  • Page 15 DEFAULT Set all configuration to factory setting default Syntax: Parameters: > default Example: Response: Set to default successfully. Enter to LAN menu. More commands under LAN menu, see detail after. Syntax: Parameters: > lan Example: SDTU-01/ET10...
  • Page 16 RxPkts (received packets)…………...37/0 (correct/error) TxVPI/VCI (transmitted VC)………………..…………0/35 RxVPI/VCI (received VC)……………………………..0/35 MANAGE Enter to MANAGE configuration menu. More commands under MANAGE menu, see detail after. Syntax: manage Parameters: > manage Example: PING Ping a specific IP address for testing purpose ping <ipaddress> Syntax: SDTU-01/ET10...
  • Page 17 Please input vpi: 1[Enter] Please input vci: 37[Enter] Please choose package filter ( Any(a)/IP(i)/PPPOE(p) ) i [Enter] Do you want to use spanning tree? <y/n> y [Enter] Configuration MODE: Bridge FUNCTION: R1483 Spanning Tree: Enable #1 VPI VCI Packet filter 1. 1 SDTU-01/ET10...
  • Page 18 Helium Family PP flash boot 6.1.0.25 (22 October 1999) (c) Copyright Virata 1999 SDRAM size = 0x800000, type = 0x5 Booting... >> System start... SAVE Save the configuration into flash memory, and restart modem save Syntax: Parameters: > save Example: Save configuration then restart modem SDSL SDTU-01/ET10...
  • Page 19 Spanning (Spanning tree setting)…………………disable Filter (packet control)..………………………Any (Allow to pass both IP and PPPOE packet.) (Note: IP – only allow to pass IP packet; PPPoE – only allow to pass PPPoE packet) Display the software version number Syntax: Parameters: SDTU-01/ET10...
  • Page 20 Parameters: Up to 18 alphanumeric characters. Upper case and lower case are different numbers. Example 1: For enabling a new password > manage> setpass Response: The password is disabled!! New Password: **** Confirm password again: **** Password has been changed and will be effective SDTU-01/ET10...
  • Page 21 Are you sure to disable password (y/n)? The password has been disabled! Saving configuration...Configuration saved. Explanation: You will be asked to key in old password and press enter to disable old password and confirm it again. R1483 MENU COMMANDS delpvc pfilter setpvc setspan SDTU-01/ET10...
  • Page 22 Enable a VC by giving the VCI and VPI numbers setpvc [<vpi>/]<vci> Syntax: Parameters: vpi: decimal value of VPI number, 0 to 127 vci: decimal value of VCI number, 0 to 1023 >r1483> setpvc 1/32 Example: Configure vpi=1 and vci= 32 SDTU-01/ET10...
  • Page 23 “disable”: disable auto-baud rate function “enable”: enable auto-baud rate function Example: >sdsl> auto enable Enable auto-speed function. CELL Enable or disable the idle-cell header Syntax: cell <enable>|<disable> “enable”: enable idle-cell header Parameters: “disable”: disable idle-cell header Example: >sdsl> cell enable SDTU-01/ET10...
  • Page 24 Set SDSL configuration back to factory setting The default: terminal - cpe auto - disable rate - 2320 smbit - reverse dbit - normal scramble - enable cell - enable ENABLE Activate the last updated SDSL parameters without saving and restarting system. enable Syntax: SDTU-01/ET10...
  • Page 25 Example: >sdsl> scramble enable Enable scrambling on ATM cell SMBIT Configure the sign/magnitude bit sequence smbit <normal>|<reverse> Syntax: Parameters: “normal”: normal sign/magnitude bit sequence “reverse”: reverse sign/magnitude bit sequence >sdsl> smbit normal Example: Configure sign/magnitude bit to normal sequence SDTU-01/ET10...
  • Page 26 Information for SDSL configuration setting: Version (SDSL driver version number)…………..Ver1.08 SDSL module (SDSL interface)………….enable (enable: normal operation, disable: malfunction) Explanation: Information for SDSL line status: Bitpump version (SDSL firmware version number)…………………………………………………..4.5 Bitpump (status chipset)…..………….present (present: normal operation, unpresent: malfunction) CO/RT select (terminal)………………………………..cpe SDTU-01/ET10...
  • Page 27 Configure modem to COE or CPE terminal Syntax: terminal <coe>|<cpe> Parameters: “coe”: central office equipment “cpe”: remote terminal Example: >sdsl> terminal coe Configure unit as central office equipment, in order for point-to-point application VERSION Display the SDSL firmware version Syntax: version Parameters: Example: >sdsl> version SDTU-01/ET10...

  • Page 28: Appendix C. Specifications

    WAN -- Green LED, SDSL data link status • Collision – Red LED, Ethernet collision indication n OAM&P • Local: RS-232 Craft Port, Telnet via local Ethernet • Remote: SNMP, Telnet via SDSL n Environment • Temperature: 0°C ~ 50°C • Humidity: 5% ~ 95%, NC SDTU-01/ET10...

  • Page 29: Software Specifications

    1 PVC for bridge • Support UBR & CBR n Bridging • Transparent Bridging (IEEE 802.1D) • RFC 1483 • Spanning Tree Protocol (IEEE 802.1D) • IP and/or PPPoE filtering n Management • Telnet • SNMP MIB II • ILMI • TFTP SDTU-01/ET10...
