  • Page 1 R27X Door Phone User Manual...

  • Page 2: Table Of Contents

    Content 1. Overview ................... 3 1.1. Product Description ..................3 1.2. Features ......................4 1.3. Keypad ......................6 1.4. Installation......................7 1.5. Unpacking ......................9 2. Configuration ................10 2.1 Basic setting in Phone interface ..............10 2.1.1 Status ....................10 2.1.2 RF Card ....................

  • Page 3: Overview

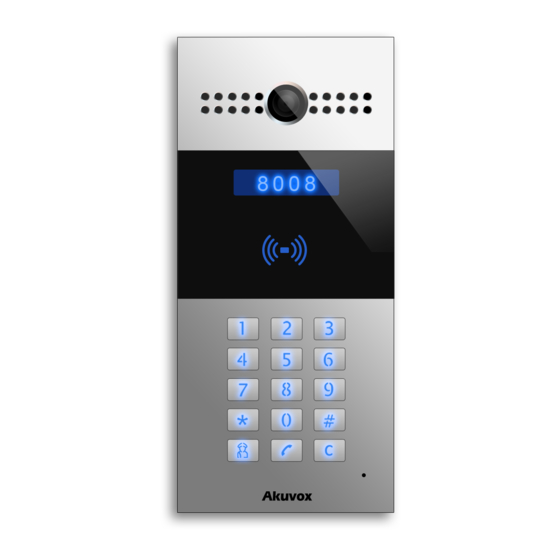

    Akuvox R27X is a SIP-compliant handfree video outdoor phone. It can be connected with your Akuvox IP Phone for remote unlock control and monitor. You can operate the indoor handset to communicate with visitors via voice and video, and unlock the door if you wish.

  • Page 4: Features

    1.2. Features  Highlight  Vandal resistant body, with a flush button  Wild-angle camera:120°  POE(IEEE802.3af, Power-over-Ethernet)  Two-way audio communication over IP network with Echo cancel feature  Complies with SIP Standard for easy integration in each SIP PBXes ...
  • Page 5  SIP Endpoint  SIP v1(RFC2543), SIP v2(RFC3261)  Audio codecs: G.711a, G.711μ, G.722, G.729  Video codecs: H264  Speech Quality: 7kHz Audio  Echo Cancellation  Voice Activation Detection   Comfort Noise Generator   Video  Resolution: up to 1080p ...

  • Page 6: Keypad

    1.3. Keypad Description Numeric Key Manage Center Key Dialing Key Delete Key...

  • Page 7: Installation

    1.4. Installation square hole(height*width*depth Place the embedded box into =269.5*122.4*60.5mm) the hole. Use the pen to make Note: user need to make the cable location on the the hole a little bigger embedded box. that can accommodate all cables Take down Use the pen to make embedded...
  • Page 8 Back cover installation: Take back cover ,cable buckle and sealing ring Make cables through components of the bottom hole of the back cover , connect with the contacts in the main board. Then put the cable buckle and sealing ring into the back cover. Use 4 M3x5 screws to fix the back cover...

  • Page 9: Unpacking

    Device mounting: Place R27 into the stand. Push down so that the device is fixed securely. Lock the the M3X6 screws at the bottom of device. 1.5. Unpacking Name Quantity R27C/P Embedded box Stand M4X10 screw ST4x20 screw Screw fixing seat M3X6 screw M3X5 screw Screwdriver...

  • Page 10: Configuration

    2. Configuration 2.1 Basic setting in Phone interface Press 3888+Dialing key to enter basic setting interface in door phone. 2.1.1 Status Press 1 to enter status interface to check IP address ,Mac address and Firmware version of the door phone. 2.1.2 RF Card This function is only for quick adding cards.

  • Page 11: Web Login

    2.2 Web login 2.2.1 Obtaining IP address The Akuvox R27X uses DHCP IP by default. Press 3888 + Dialing Key to enter basic setting interface. Enter Status to check the phone IP address. 2.2.2 Login the web Open a Web Browser, enter the corresponding IP address. Then, type the default user name and password to log in.

  • Page 12: Status-Basic

    2.2.3 Status-Basic Status, including product information, network information and Account information, can be viewed from Status -> Basic. Sections Description Product Information To display the device’s information such as Model name, MAC address (IP device’s physical address), Firmware version and Hardware firmware. Network Information To display the device’s Networking status(LAN Port),such as Port Type(which could be DHCP/Static/PPPoE), Link Status, IP...

  • Page 13: Intercom-Basic

    2.2.4 Intercom-Basic Go to the path: Intercom-Basic Sections Description  Basic Select Account: R27 supports 2 accounts. You can choose one account or Auto mode for the following Intercom basic settings.  No Answer Call：R27 will call to the No answer call number in order when the ringtone is time out without Disable by default.

  • Page 14: Intercom-Advanced

     Dial out Time: When R27 calls to the other party, if the ringtone is over the Dial out Time without answer. R27 will continue calls to no answer call number in order. Push to Hang up To enable or disable the Push to Hang up function 2.2.5 Intercom-Advanced Sections Description...

  • Page 15: Intercom-Relay&Input

    Relay&Input 2.2.6 Intercom- Sections Description  Private Key Import or Export the Private Key template. Relay To configure some settings about unlock  Relay Select: R27 supports 2 relays  Relay Type: Different locks use different relay types, default state or invert state. If you connect the Lock in NO connector, select default state.

  • Page 16: Intercom-Live Stream

    UserName=&Password=&DoorNum=1 2.2.7 Intercom-Live Stream Sections Description Live Stream To check the real-time video from R27X.

  • Page 17: Intercom-Rtsp

    2.2.8 Intercom-RTSP Sections Description RTSP Basic To active the RTSP function, then R27 can be monitored. RTSP Stream To enabled RTSP video and select the video codec. R27 supports H264video codec. H.264 Video Parameters H264: A video stream compression standard. Different from H263, it provides an approximately identical level of video stream quality but a half bit rate.

  • Page 18: Intercom-Onvif

    separately by JPEG.MJPEG compression can produce high quality video image and has a flexible configuration in video definition and Compressed frames To modify the resolution,framerate and bitrate of MJPEG 2.2.9 Intercom-Onvif Sections Description Basic Setting To setup the Onvif function parameters. It is used to connect with the corresponding Onvif tool.

  • Page 19: Intercom-Card Setting(Optional)

    2.2.10 Intercom-Card Setting(Optional) Sections Description Import/Export Card Data To import or export the card data file. Only support .xml format.  Card Status Normal: Choose Normal mode when reading card.  Card Issuing: Choose Card Issuing mode when writing card ...

  • Page 20: Account-Basic

    2.2.11 Account-Basic Sections Description SIP Account To display and configure the specific Account settings.  Status: To display register result.  Display Name: Which is sent to the other call party for display.  Register Name: Allocated by SIP server provider, used for authentication.
  • Page 21 This is for redundancy, if registering to Primary SIP server fails, the IP phone will go to Secondary SIP server for registering. Note: Secondary SIP server is used for redundancy, it can be left blank if there is not redundancy SIP server in user’s environment.

  • Page 22: Account-Advanced

    2.2.12 Account-Advanced...
  • Page 23 Sections Description SIP Account To display current Account settings or to select which account to display. Codecs To display and configure available/unavailable codecs list. Codec means coder-decoder which is used to transfer analog signal to digital signal or vice versa. Familiar codecs are PCMU(G711U), PCMA(G711A), G722 (wide-bandth codecs), G729 and so on.
  • Page 24 when there is an incoming call for designated account.  Ringtones: Choose the ringtone for each account.  Provisioning Response ACK: 100% reliability for all provisional messages, this means it will send ACK every time the IP phone receives a provisional SIP message from SIP server.

  • Page 25: Network-Basic

    into outgoing SIP message for designated account. User Agent One can customize User Agent field in the SIP message; If user agent is set to specific value, user could see the information from PCAP. If user agent is not set by default, user could see the company name, model number and firmware version from PCAP 2.2.13 Network-Basic...

  • Page 26: Network-Advanced

    2.2.14 Network-Advanced Sections Description Local RTP To display and configure Local RTP settings.  Max RTP Port: Determine the maximum port that RTP stream can use.  Starting RTP Port: Determine the minimum port that RTP stream can use. SNMP To display and configure SNMP settings.

  • Page 27: Phone-Time/Language

    Note: Please consult your administrator for specific VLAN settings in your networking environment. TR069 To display and configure TR069 settings.  Active: To enable or disable TR069 feature.  Version: To select supported TR069 version (version 1.0 or 1.1).  ACS/CPE: ACS is short for Auto configuration servers as server side, CPE is short for Customer-premise equipment as client side devices.

  • Page 28: Phone-Call Feature

    Sections Description Web Language Choose the web language you need. English by default. To configure NTP server related settings.  Time Zone: To select local Time Zone for NTP server.  Primary Server: To configure primary NTP server address.  Secondary Server: To configure secondary NTP server address, it takes effect if primary NTP server is unreachable.

  • Page 29: Phone-Voice

    DND (Do Not Disturb) allows IP phones to ignore any incoming calls.  Return Code when DND: Determine what response code should be sent back to server when there is an incoming call if DND on.  DND On Code: The Code used to turn on DND on server’s side, if configured, IP phone will send a SIP message to server to turn on DND on server side if you press DND when DND is off.
  • Page 30 Sections Description Mic Volume To configure Microphone volume , from 1-15. 8 by default. Speaker Volume To configure Speaker Volume,from 1-15,8 by default. Open Door Warning To configure door opening voice. Disable it, you won’t hear the prompt voice when the door is opened.

  • Page 31: Phone-Multicast

    2.2.18 Phone-Multicast Sections Description Multicast Setting To display and configure the Multicast setting.  Paging Barge: Choose the multicast number ,the range is 1-10.  Paging priority Active: Enable o disable the multicast. Priority List To setup the multicast parameters. ...

  • Page 32: Phone-Call Log

    2.2.19 Phone-Call log Sections Description Call History To display call history records. Available call history types are All calls, Dialed calls, Received calls, Missed calls, Forwarded calls. Users can check the call history in detail. Tick the number to delete or delete all logs. R27 supports 100 call logs.

  • Page 33: Phone-Door Log

    2.2.20 Phone-Door log Sections Description Door Log To display unlock history Users can check the unlock information in detail. User can delete one or all logs. The maximum door log is 500.

  • Page 34: Upgrade-Basic

    2.2.21 Upgrade-Basic Sections Description Upgrade To select upgrading zip file from local or a remote server automatically. Note: Please make sure it’s right file format for right model. Firmware version To display firmware version, firmware version starts with MODEL name. Hardware Version To display Hardware version.

  • Page 35: Upgrade-Advanced

    2.2.21 Upgrade-Advanced Sections Description PNP Option To display and configure PNP setting for Auto Provisioning.  PNP: Plug and Play, once PNP is enabled, the phone will send SIP subscription message to PNP server automatically to get Auto Provisioning server’s address. By default, this SIP message is sent to multicast address 224.0.1.75(PNP server address by standard).

  • Page 36: Security-Basic

    phone’s MAC address is 0c1105888888). Note: AES is one of many encryption, it should be configure only configure file is ciphered with AES, otherwise left blank. Automatic Autop To display and configure Auto Provisioning mode settings. This Auto Provisioning mode is actually self-explanatory. For example, mode “Power on”...
  • Page 37  New Password: Input new password you intend to use.  Confirm Password: Repeat the new password.
