Prodigy System
56 • Prodigy System: PMC2

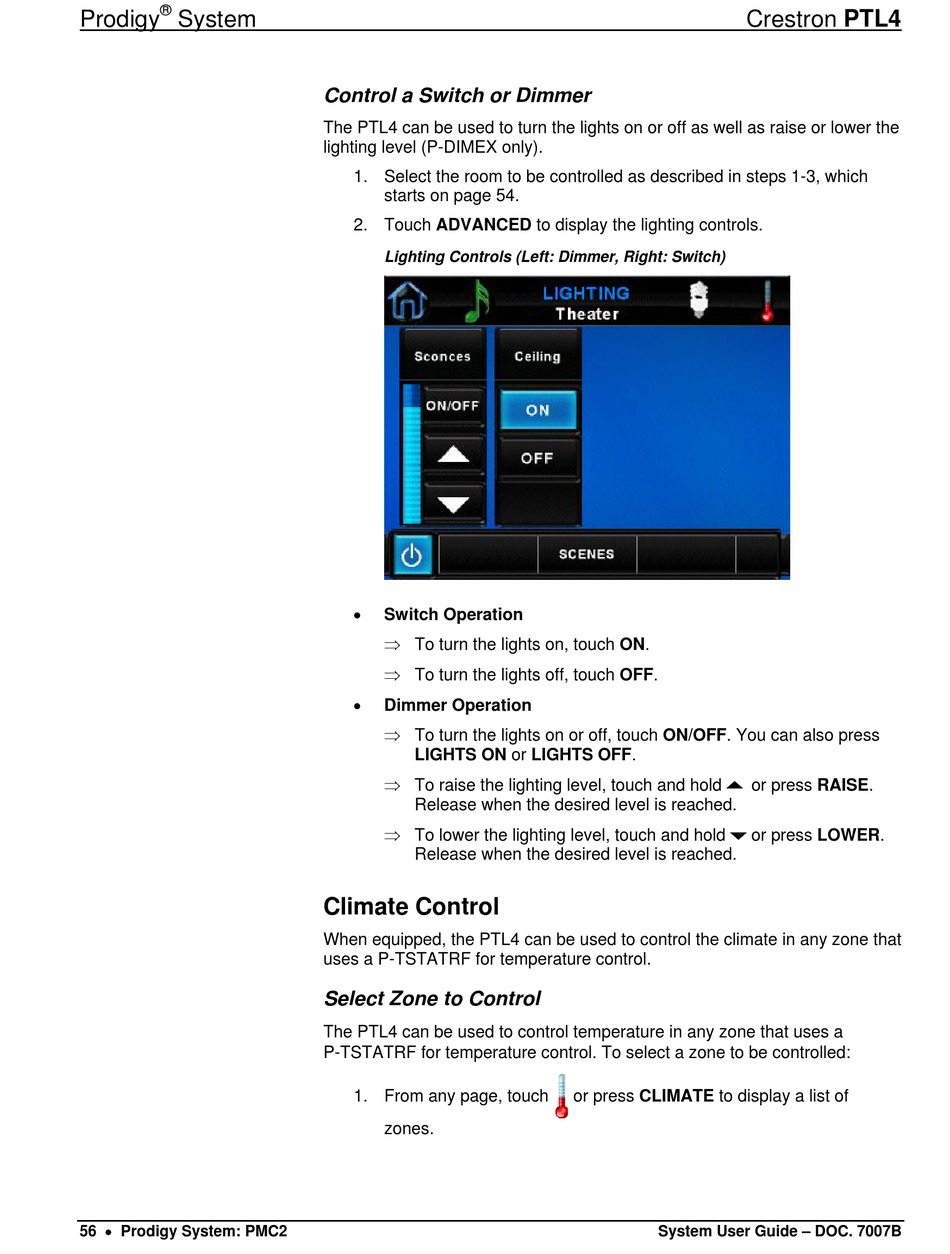

Control a Switch or Dimmer

The PTL4 can be used to turn the lights on or off as well as raise or lower the
lighting level (P-DIMEX only).
1. Select the room to be controlled as described in steps 1-3, which
starts on page 54.
2. Touch ADVANCED to display the lighting controls.
Lighting Controls (Left: Dimmer, Right: Switch)
•
Switch Operation
⇒ To turn the lights on, touch ON.
⇒ To turn the lights off, touch OFF.
•
Dimmer Operation
⇒ To turn the lights on or off, touch ON/OFF. You can also press
LIGHTS ON or LIGHTS OFF.
⇒ To raise the lighting level, touch and hold k or press RAISE.
Release when the desired level is reached.
⇒ To lower the lighting level, touch and hold j or press LOWER.
Release when the desired level is reached.

Climate Control

When equipped, the PTL4 can be used to control the climate in any zone that
uses a P-TSTATRF for temperature control.

Select Zone to Control

The PTL4 can be used to control temperature in any zone that uses a
P-TSTATRF for temperature control. To select a zone to be controlled:
1. From any page, touch
zones.
Crestron PTL4
or press CLIMATE to display a list of
System User Guide – DOC. 7007B
