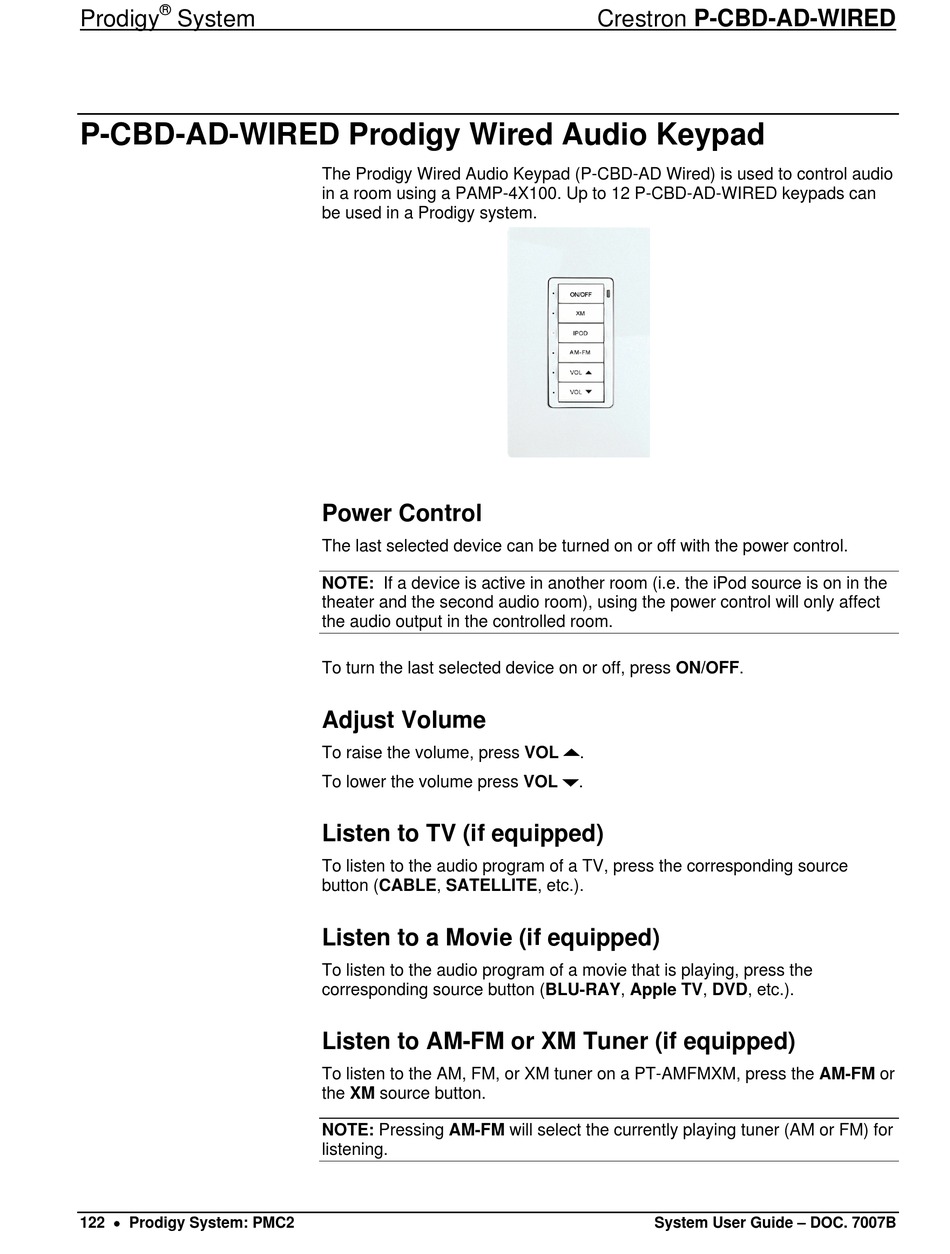

P-CBD-AD-WIRED Prodigy Wired Audio Keypad

122 • Prodigy System: PMC2
The Prodigy Wired Audio Keypad (P-CBD-AD Wired) is used to control audio
in a room using a PAMP-4X100. Up to 12 P-CBD-AD-WIRED keypads can
be used in a Prodigy system.

Power Control

The last selected device can be turned on or off with the power control.
NOTE: If a device is active in another room (i.e. the iPod source is on in the
theater and the second audio room), using the power control will only affect
the audio output in the controlled room.
To turn the last selected device on or off, press ON/OFF.

Adjust Volume

To raise the volume, press VOL k.
To lower the volume press VOL j.

Listen to TV (if equipped)

To listen to the audio program of a TV, press the corresponding source
button (CABLE, SATELLITE, etc.).

Listen to a Movie (if equipped)

To listen to the audio program of a movie that is playing, press the
corresponding source button (BLU-RAY, Apple TV, DVD, etc.).

Listen to AM-FM or XM Tuner (if equipped)

To listen to the AM, FM, or XM tuner on a PT-AMFMXM, press the AM-FM or
the XM source button.
NOTE: Pressing AM-FM will select the currently playing tuner (AM or FM) for
listening.
