P-DIMEX Prodigy Single Button Wireless Dimmer and
P-SWEX Prodigy Single Button Wireless Switch
System User Guide – DOC. 7007B

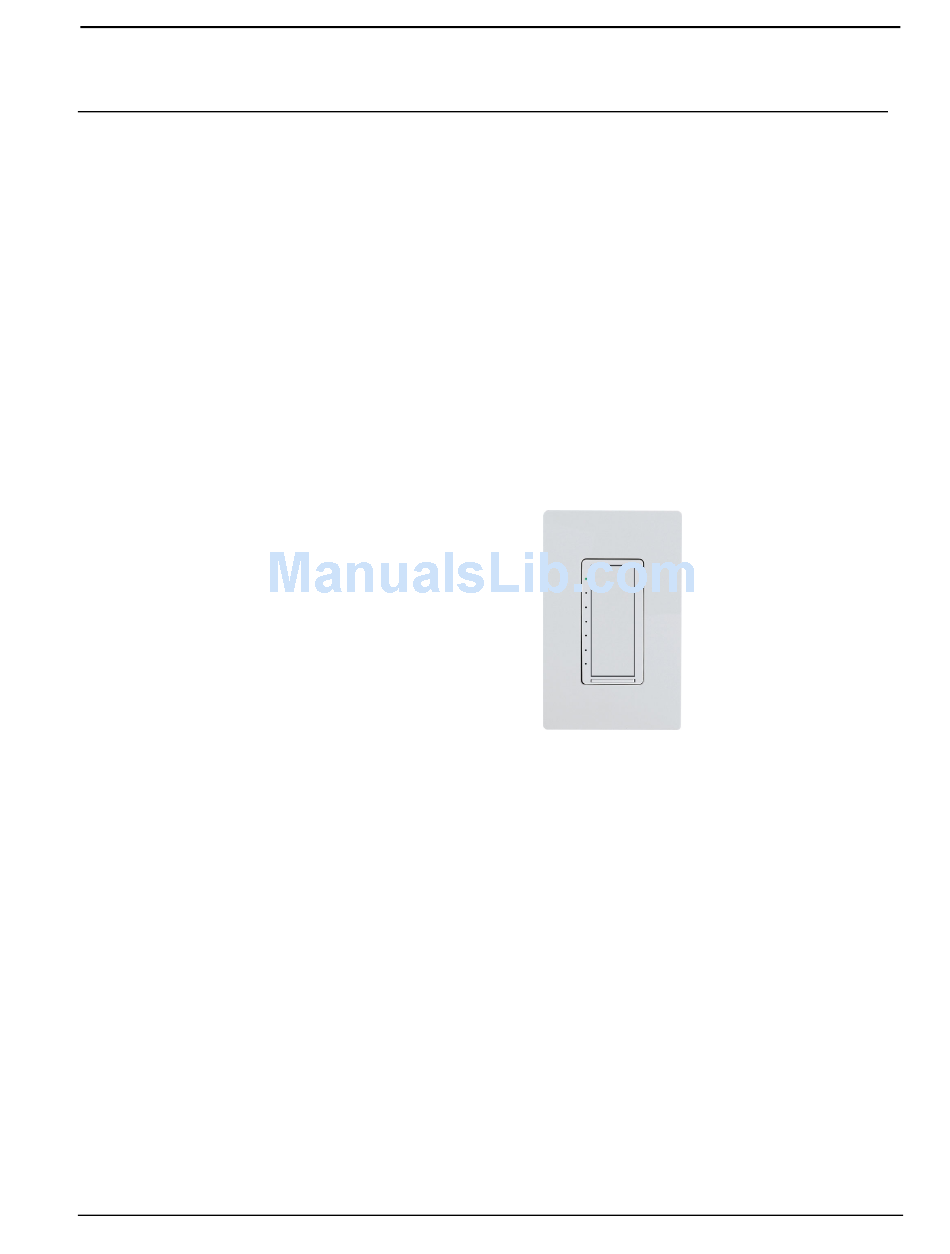

The Prodigy Single Button Wireless Dimmer (P-DIMEX) and Single Button
Wireless Switch (P-SWEX) are optional interfaces that are used for local
control of lighting in a Prodigy system. Depending on the system
configuration, up to 99 switches/dimmers can be used in a Prodigy system.
The P-DIMEX has light emitting diodes (LEDs), a rocker button, and an air-
gap switch. The LED indicates the lighting level while the rocker button can
be pushed at the top or bottom to perform specific functions .The air-gap
switch can de used to disconnect power to the dimmer or program a preset
lighting level.
The P-SWEX has an LED and a rocker button. The LED indicates the status
of the load while the rocker button can be pushed at the top or bottom to
perform specific functions.

Control a Dimmer

Raise/Lower the Lighting Level

Use the rocker button to recall a preset lighting level, raise the level to 100%
brightness, lower the lighting level, or turn off the light.
•
To raise the light level to its preset lighting level, tap the upper part of
the rocker button.
•
To raise the light level to 100% brightness, double-tap the upper part
of the rocker button.
•
To manually raise the light level, press and hold the upper part of the
rocker button. Release when the desired lighting level is reached.
•
To fade to off, tap the lower part of the rocker button.
•
To turn off the light quickly, double-tap the lower part of the rocker
button.
•
To manually lower the light level, press and hold the lower part of the
rocker button. Release when the desired lighting level is reached.
®
