SCAN 83-8 Assembly And Instruction Manual page 8

8

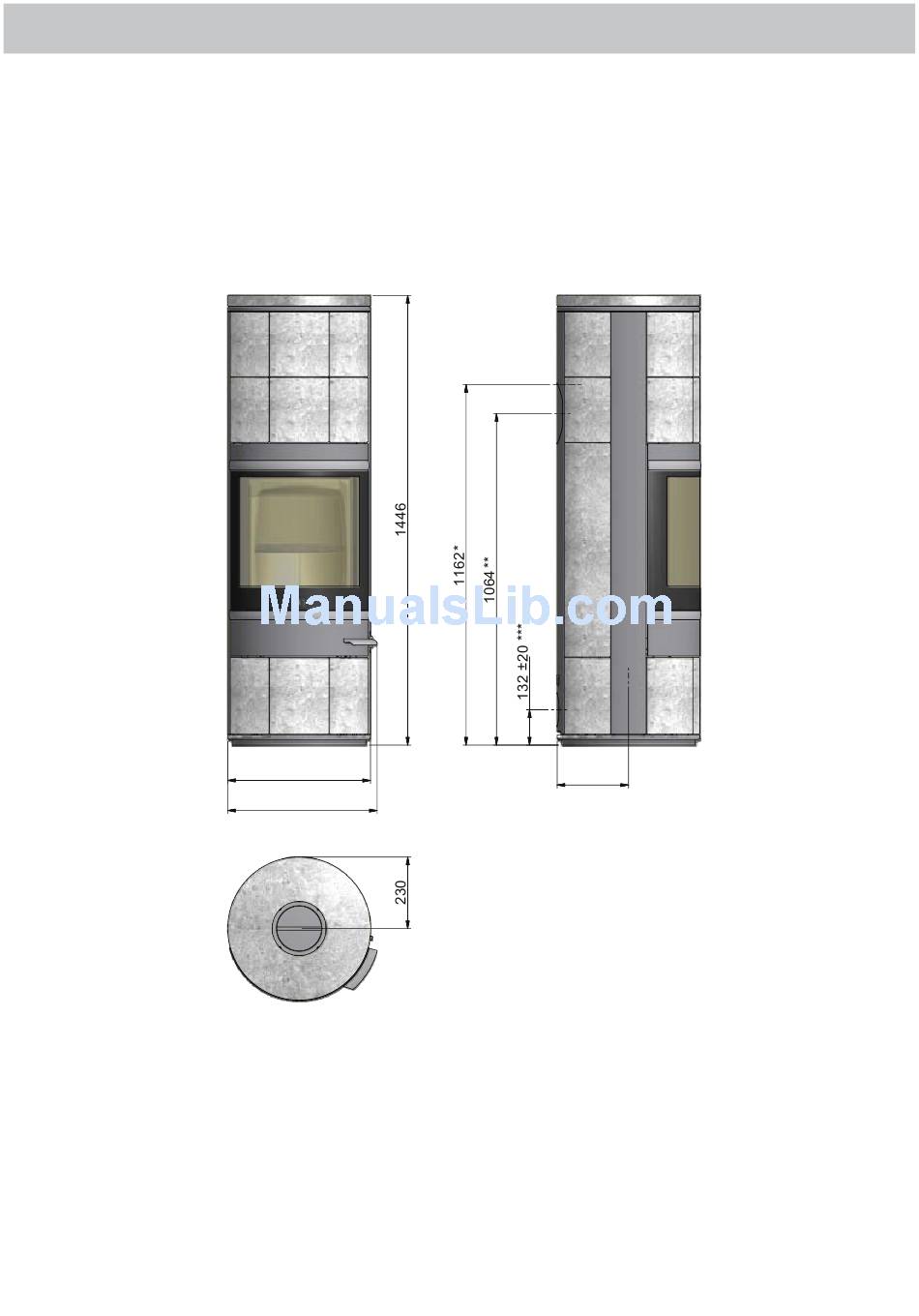

Dimensional drawing for Scan 83-7 and Scan 83-8 with natural stones top module
Scan 83
NAVN:
MATERIALE:
DIMENSION:
STI:
TECHNICAL DATA
460
481
Målskitse Scan 83 Maxi med fedtstenstop
EMNE:
AREAL:
230****
* Height to beginning of
flue connection piece
at top outlet
** Centre rear outlet
*** Centre of fresh air intake
rear outlet
**** Centre of fresh air intake
bottom
N/A
VÆGT: DATO:
N/A
