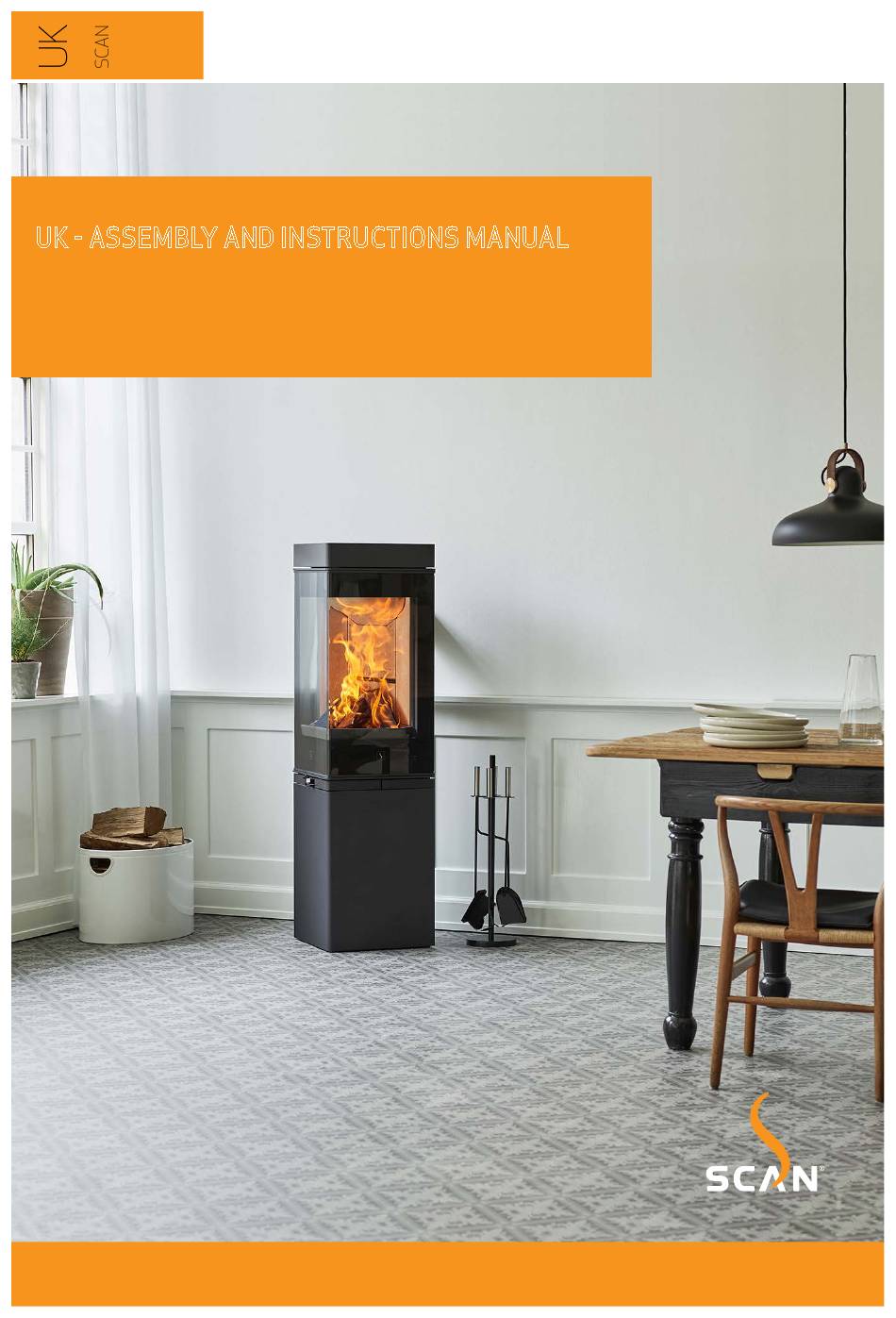

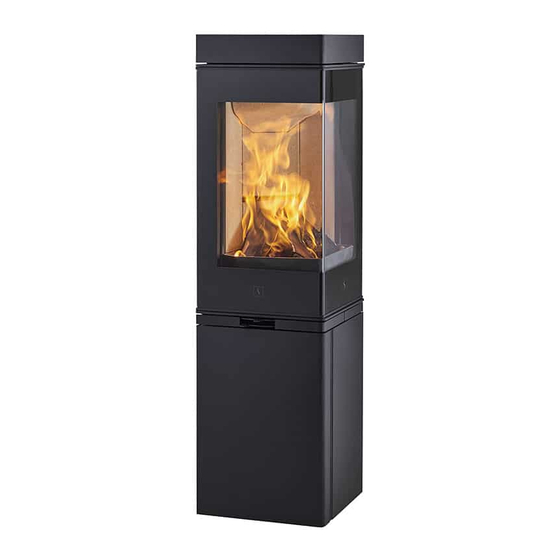

- Page 1 UK - ASSEMBLY AND INSTRUCTIONS MANUAL SCAN 80 ASSEMBLY AND INSTRUCTIONS MANUAL SCAN 80...
- Page 2 CONGRATULATIONS ON YOUR NEW SCAN WOOD-BURNING STOVE You have purchased a product by one of Europe’s leading manufacturers of wood-burning stoves, and we are sure that you will have years of pleasure from your purchase. To make the best possible use of your stove, it is important that you follow our advice and instructions.
-
Page 3: Table Of Contents
CONTENTS ¬ ¬ TECHNICAL DATA Installation Dimension sketch and minimum distances Safety Type plate The Clean Air Act 1993 and Smoke Control Areas Product registration umber Technical data and dimensions ¬ ¬ ASSEMBLY Tools for the mounting of the woodburning stove Distance to furniture Loose parts Safety distance... -
Page 4: Technical Data
Any changes made to the product by the dealer, fitter or user could result in the product and safety functions not functioning as intended. The same applies to the fitting of accessories or extra equipment not supplied by Scan A/S. This could also be the case if parts that are necessary for the operation and safety of the stove are dismantled or removed. -
Page 5: Technical Data And Dimensions
The Declaration of Performance (DoP) is available from www.scan-stoves.com Amount of fuel, max. 2,25 kg (Reference to EN 13240: 2001/A2:2004) EN test was carried out on the installation with an un-insulated elbow pipe shown in the assembly manual for Scan 1008 on page 11. -
Page 6: Dimension Sketch And Minimum Distances
DIMENSION SKETCH AND MINIMUM DISTANCES... - Page 7 MINIMUM DISTANCES...
-
Page 8: Type Plate
Path: All Scan wood-burning stoves are provided with a product registration number. Please make a note of this number at the rear page of this manual; you will always need to quote it when contacting your dealer or Scan A/S. -
Page 9: Assembly
¬ Heat-storage stones for High Top DISPOSAL OF PACKAGING Your Scan stove may come supplied with the following packaging: The wood packaging can be reused and after final use can be incinerated as a CO neutral Wood packaging product or sent for recycling... -
Page 10: Closed Combustion System
Path: If you intend to connect your stove to an existing chimney, it makes sense to contact an authorised Scan dealer, or a local chimney sweep, for advice. These experts will also let you know if your chimney needs renovating. -
Page 11: Requirements For Chimney
You should however assess whether furniture or other items might become excessively dry due to being too close to the stove. Distance to ceiling (High Top): 350 mm. SAFETY DISTANCE European, national and local regulations concerning safety distances for wood-burning stoves must be complied with. Scan 80 Name: Scan 80 med knærør Date: 10-09-2018 Stove: Constructed/Changed by Material:... -
Page 12: Removal Of The Stove From The Pallet
The stove is secured on the pallet with two screws on the inside. For Scan 80-2 and 80-4, open the door and dismount the screws. For Scan 80-1 and 80-3, you can get access to the screws (1) from the rear of the stove. NOTE: Do not touch the glass NOTE: The stove must be taken off the pallet by dismounting the screws. -
Page 13: Height Adjustment Of Stove
For Scan 80-2 and 80-4, open the door and adjust the screws. For Scan 80-1 and 80-3, you can get access to the adjustment screws (1) from the rear of the stove. NOTICE: It is very important that the stove is level to allow an optimal function of the door. -
Page 14: Fitting The Flue Connection Piece
Montage af røgstuds 90580027 Stove: Name: Date: 16-05-2017 number: Constructed/Changed by: Material: Weight: Articlenumber: Area: SCAN A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 80\90580027.idw Path: 4 x unbraco M5 x 10 Montage af røgstuds 16-05-201 Stove: Name: Date: Constructed/Changed Material: Weight: Articlenumber: Area: DK-5492 C:\Working Folder\Designs\Scan 80\90580027.idw... - Page 15 FITTING THE FLUE CONNECTION PIECE IN THE REAR OUTLET The gasket for the flue connection piece, flue connection piece and screws can be found in the stove’s combustion chamber. Using cutting pliers, cut off the cover plate from the Mount the ceramic gasket on the connecting piece. top module, the rear plate and the heat shield at its Tighten the flue connection piece with the screws securing points...
-
Page 16: Heat-Storage System
HEAT-STORAGE SYSTEM (ACCESSORY) Heat-storage stones are available for Scan 80-3, 80-4, 80-3C and 80-4C. R ( 1:5 ) Heat-storage stones are made from a special material with a high heating capacity. The stones are heated up during the firing and gives off the heat again after the firing, which means that the stove stays warm for a longer time. -
Page 17: Load-Bearing Foundation
Your local Scan dealer can advise you on regulations concerning protection of flammable materials in the vicinity of your stove. The floor plate’s function is to protect the floor and flammable material against any sparks that may occur. A floor plate can be made of steel or glass, but the stove can also be erected on clinker concrete, natural stone or similar materials. -
Page 18: Instructions For Use
INSTRUCTIONS FOR USE CB-TECHNOLOGY (CLEAN BURN) The stove is equipped with CB technology. In order to ensure optimal combustion of gases released during the combustion process, air passes through a specially developed system of channels. The heated air is conducted into the combustion chamber through the holes in the rear lining of the combustion chamber and at the baffle plates. -
Page 19: Adjustment Of Primary- And Secondary Air
Lift up the handle for the primary air damper and then pull it all the way to the right (4). See our video about correct firing and adjustment of primary- and secondary air on www.scan-stoves.com or scan the QR-code on next page. -
Page 20: Instructions For Heating
LIGHTING We recommend the use of fire lighters, or similar products, which are available from your Scan dealer. Using fire lighters helps light the wood more quickly and keeps the combustion process clean. See our video about correct firing on www.scan-stoves.com or scan the QR-code. -
Page 21: Continuous Operation
VERTICAL LIGHTING A vertical lighting also ensures an environmentally friendly lighting and helps to keep the glass optimally clean. For a vertical lighting, you need the following: ¬ 4 pieces of wood approx. 19-25 cm with a weight of approx. 0.4-0.5 kg per piece ¬... -
Page 22: Using The Stove In Various Weather Conditions
Fitting a damper in the flue pipe may also help, as it will allow you to regulate the draught under changing wind loads. The damper must not close more than 80% of the flue pipe. -
Page 23: Selecting Wood/Fuel
HANDLING OF THE FUEL SELECTING WOOD/FUEL You can use any type of wood as fuel. However harder woods, such as beech or ash, are generally better for heating, as they burn more evenly and create less ash. Other woods, such as maple, birch and spruce, are excellent alternatives. PREPARATION The best fuel is obtained where the tree has been felled and the wood sawn and split before May 1st. -
Page 24: Sweeping The Chimney And Cleaning The Stove
Clean your wood-burning stove by wiping it down with a dry, lint-free cloth. If the paint finish gets damaged, you can purchase repair paint in spray form from your Scan dealer. As slight differences in colour shade are possible, we recommend you spray a larger area to achieve a natural blend. For best results, apply repair spray when the stove is warm enough for you to just keep your hand on it, but no hotter. -
Page 25: Cleaning The Glass
REMOVING THE BAFFLE PLATE AND THE BAFFLE UNIT Be very careful when removing the baffle plate from the stove. After the baffle plate has been removed, the baffle unit can be dismounted. Baffle plate Baffle unit Scan 1008 - røgvenderplade 90580044 EMNE: TG.NR: DATO:... -
Page 26: Disposal Of Stove Parts
DISPOSAL OF STOVE PARTS Steel/cast iron Send for recycling Glass Dispose of as ceramic waste Combustion chamber lining Vermiculite and chamotte are not recyclable. Dispose of as waste. Baffle plate Vermiculite is not recyclable. Dispose of as waste. Gaskets Dispose of as waste... - Page 27 TROUBLESHOOTING SMOKE ESCAPING ¬ Damp wood ¬ Chimney not drawing properly ¬ Chimney is not properly dimensioned for the stove ¬ Check if the smoke gas pipe/chimney are blocked ¬ Is the chimney the right height for its surroundings? ¬ Vacuum in room ¬...
- Page 28 All wood-fired Scan products are made of high-quality materials and subject to strict quality controls before leaving the factory. We give a warranty of 5 years on manufacturing errors or defects. You must quote your stove‘s product registration number when you contact us or your authorized Scan dealer with a warranty claim.
- Page 29 MOUNTING THE UK - BLOCKING AND SCREW The Scan 80-1, 80-2, 80-3, 80-4, 80-3C and 80-4C have been recommented as suitable for use in smoke control areas when burning wood logs and when fitted with a mechanical stop to prevent that the secondary air valve cannot be closed lower than...
- Page 30 NOTES...
- Page 32 Product registration number Quote this number at all enquiries Edition: UK 90080500 10056080-P02 SCAN A/S Damsbovej 1 DK-5492 Vissenbjerg www.scan-stoves.com 16.11.2021...
