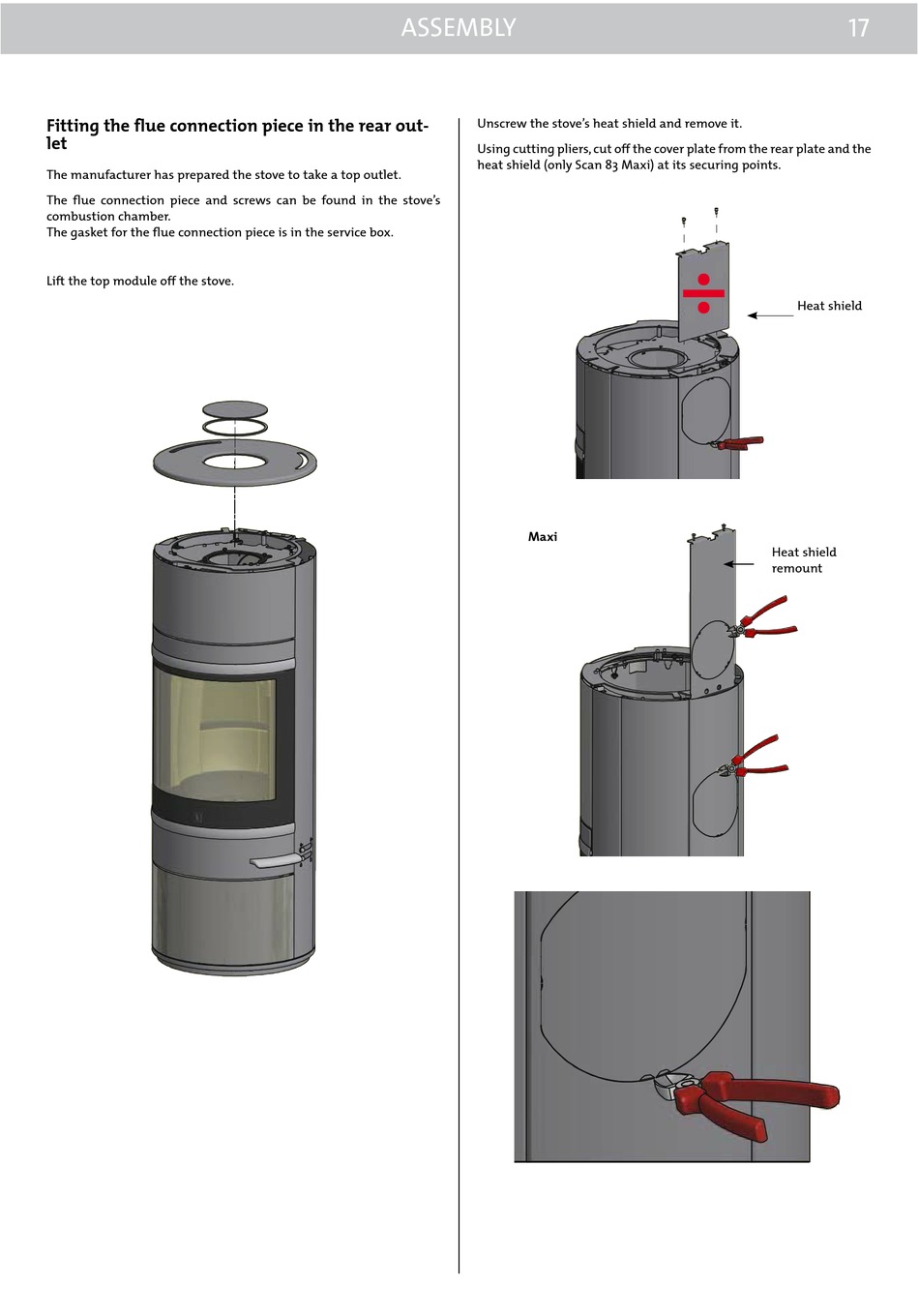

Fitting The Flue Connection Piece In The Rear Outlet - SCAN 83-8 Assembly And Instruction Manual

Fitting the flue connection piece in the rear out-
let
The manufacturer has prepared the stove to take a top outlet.
The flue connection piece and screws can be found in the stove's
combustion chamber.
The gasket for the flue connection piece is in the service box.
Lift the top module off the stove.
