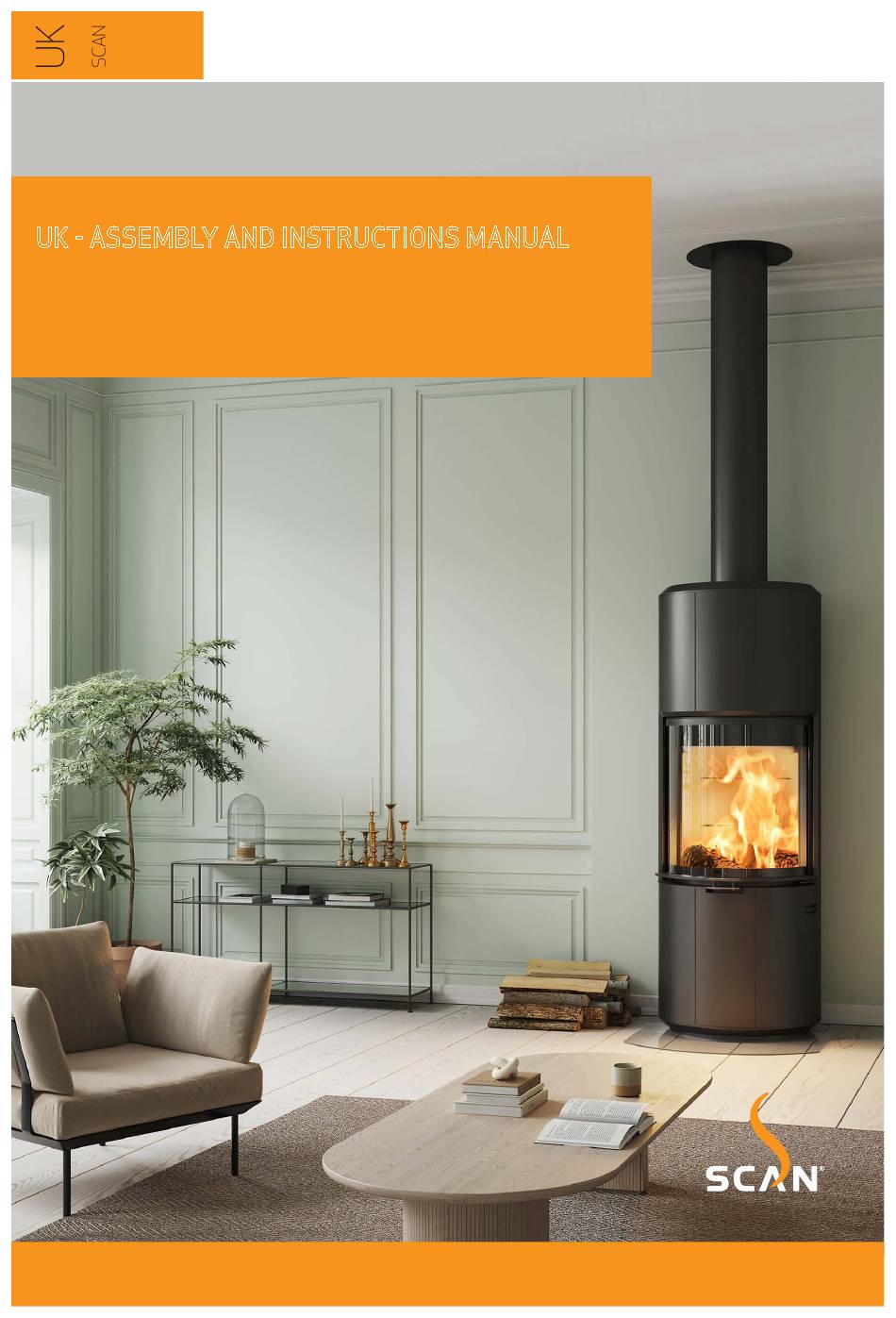

- Page 1 UK - ASSEMBLY AND INSTRUCTIONS MANUAL SCAN 87 ASSEMBLY AND INSTRUCTIONS MANUAL SCAN 87...
- Page 2 CONGRATULATIONS ON YOUR NEW SCAN WOOD-BURNING STOVE You have purchased a product by one of Europe’s leading manufacturers of wood-burning stoves, and we are sure that you will have years of pleasure from your purchase. To make the best possible use of your stove, it is important that you follow our advice and instructions.
-
Page 3: Table Of Contents
TABLE OF CONTENTS ¬ ¬ TECHNICAL DATA Installation Dimension sketch and minimum distances Safety Type plate Technical data and dimensions Product registration number ¬ ¬ ASSEMBLY Tools needed for mounting of the stove Removal of transport safety Loose parts Door (Self-closing) Additional accessories Mounting of wall-hung model Disposal of packaging... -
Page 4: Technical Data
Any changes made to the product by the dealer, fitter or user could result in the product and safety functions not functioning as intended. The same applies to the fitting of accessories or extra equipment not supplied by Scan A/S. This could also be the case if parts that are necessary for the operation and safety of the stove are dismantled or removed. -
Page 5: Technical Data And Dimensions
40 cm* No x @ 13% O 96 mg/Nm Weight Scan 87 approx. 273 kg Efficiency 84 % Weight Scan 87 wall-hung approx. 250 kg Energy efficiency index Connecting piece internal diameter 194 mm Energy efficiency class Connecting piece external diameter... -
Page 6: Dimension Sketch And Minimum Distances
DIMENSION SKETCH AND MINIMUM DISTANCES... - Page 7 MINIMUM DISTANCES...
-
Page 8: Type Plate
STI: All Scan wood-burning stoves are provided with a product registration number. Please make a note of this number at the rear page of this manual; you will always need to quote it when contacting your dealer or Scan A/S. -
Page 9: Assembly
Cleansing lid for rear outlet ¬ Fresh air adapter rear (wall-hung) DISPOSAL OF PACKAGING Your Scan stove may come supplied with the following packaging: The wood packaging can be reused and after final use can be incinerated as a CO neutral Wood packaging... -
Page 10: Closed Combustion System
STI: If you intend to connect your stove to an existing chimney, it makes sense to contact an authorised Scan dealer, or a local chim- ney sweep, for advice. These experts will also let you know if your chimney needs renovating. -
Page 11: Requirements For Chimney
REQUIREMENTS FOR CHIMNEY The chimney must have a minimum internal diameter of 180 mm (200 mm is recommended) and have a T400 designation, with G for the soot fire test. The length should be min. 4,5 metres. If the chimney is fitted with a smoke extractor, it must be possible to adjust it to a suitable draft. The requirements to the chimney and the flue pipe in terms of safety distances must be met. -
Page 12: Removal Of Packaging
The stove comes attached to a wooden pallet on delivery. The packaging is stable enough for the unpacked stove to be laid down. Scan 87 Scan 87 - Palle NAVN: EMNE: TG.NR: 90087048 Scan 87 - Afmontage fra transportpalle Scan 87 90087049 NAVN: EMNE: TG.NR: DATO:... - Page 13 REMOVAL OF PACKAGING Screws are saved for mounting the flue connection piece Scan 87 - Afmontage fra transportpalle NAVN: EMNE: n 87 - Topplade af og pakning sættes på røgstuds 90087017 TG.NR: 19-01 MATERIALE: VÆGT: DATO: DIMENSION: AREAL: Krog Ivers 17-01-2022 VÆGT:...
-
Page 14: Fitting The Slingbar
FITTING THE SLINGBAR IN THE TOP OUTLET If you want to lift Scan 87 with a crane, the included slingbar can be used. Slingbar REMOVAL OF TRANSPORT SAFETY The stove comes with clamped weights. These must be released when the stove is placed in the right place. -
Page 15: Door (Self-Closing)
If you want a self-closing door, you can remove half of the weight discs in each inside of the stove from the counterweight. Remove transport safety - is not to be remounted Scan 87 - vægtlodder NAVN: EMNE: 538,86 kg... -
Page 16: Mounting Of Wall-Hung Model
There must be a distance of at least 6 mm between the first section and the flange on the flue collar. Please consult a specialist. Scan A/S disclaims all liability for the installation of wall-hung wood-burning stoves. 40 mm... - Page 17 12-05-2015 SIGN: DIMENSION: AREAL: Krog Iversen & Co A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 68\90068058.idw STI: If you want a rear outlet, see page 21 in this manual Scan 87 - vægophæng Scan 87 NAVN: EMNE: TG.NR 12-05-2021 MATERIALE: VÆGT: DATO:...
-
Page 18: Mounting Of External Air Supply On The Wall Fitting
If you choose to connect the stove with fresh air as a rear outlet, the stove must be mounted to the wall with a fresh air adapter. The fresh air adapter can be purchased from your local Scan dealer. If you do not want an external air supply, it is not necessary to mount the duct tube or the connecting piece. -
Page 19: Height Adjustment Of Stove
NOTICE: It is very important that the stove is level to allow an optimal function of the door. Please note that once mounted the stove can no longer be adjusted! Remove the air damper buttons Lift off the front of the base 2,5 mm Scan 87 - spjældknapper af Scan 87 Adjust the adjustment screws 90087012 NAVN: EMNE: TG.NR:... - Page 20 Lift the front of the base up and down into place and dampers are placed on each side of the reinforcement. the air damper buttons can then be put back on Afterwards place the air dampers into the damper holes Scan 87 - hylde af Scan 87 NAVN: EMNE: MATERIALE: VÆGT:...
-
Page 21: Fitting The Flue Connection Piece
The stove is prepared from the factory for top outlet. The gasket for the flue connection piece, flue connection piece and screws can be found in the stove’s combustion chamber. Scan 87 - Topplade af og pakning sættes på røgstuds 90087017 TG.NR:... - Page 22 DATO: SIGN: DIMENSION: AREAL: Krog Iversen & Co A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 83\90583019.idw STI: 4 pcs. screws Scan 87 - Dækplade bag klippes fri Door stop 90087020 AVN: EMNE: TG.NR: Fit the cover and tighten it. 538,42 kg 19-01-2022 ATERIALE: VÆGT:...
-
Page 23: Disassembly Of Top Plate In Top Outlet
(ACCESSORY) For mounting the flue connection piece in the rear outlet a cleaning lid for top outlet can be purchased. Turn the lid 90 degrees to open the cleansing lid. Scan 87 - Afmontage af topbagplade Scan 87 90087080 NAVN: EMNE: TG.NR:... -
Page 24: Heat-Storage System
HEAT-STORAGE SYSTEM (ACCESSORY) Heat-storage stones are available for Scan 87. (6 items approx. 100 kg) Heat-storage stones are made from a special material with a high heating capacity. The stones are heated up during the firing and gives off the heat again after the firing, which means that the stove stays warm for a longer time. -
Page 25: Mounting Of Combustion Chamber
Exercise care when working Place the upper baffle plate in the top of the stove. It is important that the plate is placed correctly Mount the right burn chamber plate Mount the lower rear plate Scan 87 - brændkammerbeklædning Scan 87 NAVN: EMNE: TG.NR:... - Page 26 C ( 1 : 4 ) Mount the upper rear plate Mount the lower baffle plate. The baffle plate must be supported by the rear plates. Scan 87 - brændkammerbeklædning Scan 87 Scan 87 - brændkammerbeklædning Scan 87 - brændkammerbeklædning...
-
Page 27: Load-Bearing Foundation
Your local Scan dealer can advise you on regulations concerning protection of flammable materials in the vicinity of your stove. The floor plate’s function is to protect the floor and flammable material against any sparks that may occur. A floor plate can be made of steel or glass, but the stove can also be erected on clinker concrete, natural stone or similar materials. -
Page 28: Instructions For Use
INSTRUCTIONS FOR USE CB-TECHNOLOGY (CLEAN BURN) The stove is equipped with CB technology. In order to ensure optimal combustion of gases released during the combustion process, air passes through a specially developed system of channels. The heated air is conducted into the combustion chamber through the holes in the rear lining of the combustion chamber and at the baffle plates. - Page 29 FOR NORMAL LOAD: Adjustment of air supply, Primary air: 0 - 30% primary and secondary damper Secondary air: 50 - 70% Secondary air Scan 87 - justering af luft - åbent Scan 87 90087029 NAVN: EMNE: TG.NR: 27-11-2019 DATO: SIGN: MATERIALE: VÆGT:...
-
Page 30: Instructions For Heating
LIGHTING We recommend the use of fire lighters, or similar products, which are available from your Scan dealer. Using fire lighters helps light the wood more quickly and keeps the combustion process clean. See our video about correct firing on www.scan-stoves.com or scan the QR-code. Please note... -
Page 31: Continuous Operation
CONTINUOUS OPERATION It is important to obtain as high a temperature as possible in the combustion chamber. This results in best possible use of the stove and fuel, as well as achieving clean combustion. In this way you will avoid build-up of soot on the combustion chamber lining and glass pane. -
Page 32: Chimney Fire
CHIMNEY FIRE In the event of a chimney fire, keep the stove door, the ash container, and all dampers on the stove closed. In an emergency, call the fire service. ¬ We recommend that you get a chimney sweep to check the chimney before using the stove again GENERAL NOTES PLEASE NOTE! Parts of the wood-burning stove, especially the outer surfaces, become hot during use. -
Page 33: Handling Of The Fuel
HANDLING OF THE FUEL SELECTING WOOD/FUEL You can use any type of wood as fuel. However harder woods, such as beech or ash, are generally better for heating, as they burn more evenly and create less ash. Other woods, such as maple, birch and spruce, are excellent alternatives. PREPARATION The best fuel is obtained where the tree has been felled and the wood sawn and split before May 1st. -
Page 34: Maintainance
Clean your wood-burning stove by wiping it down with a dry, lint-free cloth. If the paint finish gets damaged, you can purchase repair paint in spray form from your Scan dealer. As slight differences in colour shade are possible, we recommend you spray a larger area to achieve a natural blend. For best results, apply repair spray when the stove is warm enough for you to just keep your hand on it, but no hotter. -
Page 35: Removal Of Baffle Plates And Combustion Chamber Lining
Please note that the sides support the rear plates and that these may fall over, when the sides are taken out Lower baffle plate Upper Holder for baffle plate baffle plates Scan 87 - brændkammerbeklædning Scan 87 NAVN: EMNE: DATO MATERIALE: VÆGT:... -
Page 36: Cleaning The Glass
Pull out the handle, and the door can now be opened and cleaned on the inside of the glass. (IMPORTANT! Remember to remount the door in reverse order so that it is positioned correctly!) Scan 87 - Rengøring af glas indvendig Scan 87 - Rengøring af glas indvendig... - Page 37 TROUBLESHOOTING SMOKE ESCAPING ¬ Damp wood ¬ Chimney not drawing properly ¬ Chimney is not properly dimensioned for the stove ¬ Check if the smoke gas pipe/chimney are blocked ¬ Is the chimney the right height for its surroundings? ¬ Vacuum in room ¬...
- Page 38 All wood-fired Scan products are made of high-quality materials and subject to strict quality controls before leaving the factory. We give a warranty of 5 years on manufacturing errors or defects. You must quote your stove‘s product registration number when you contact us or your authorized Scan dealer with a warranty claim.
- Page 39 NOTES...
- Page 40 Product registration number Quote this number at all enquiries Edition: UK 90087500 10061693-P01 SCAN A/S Damsbovej 1 DK-5492 Vissenbjerg www.scan-stoves.com 08.03.2022...
