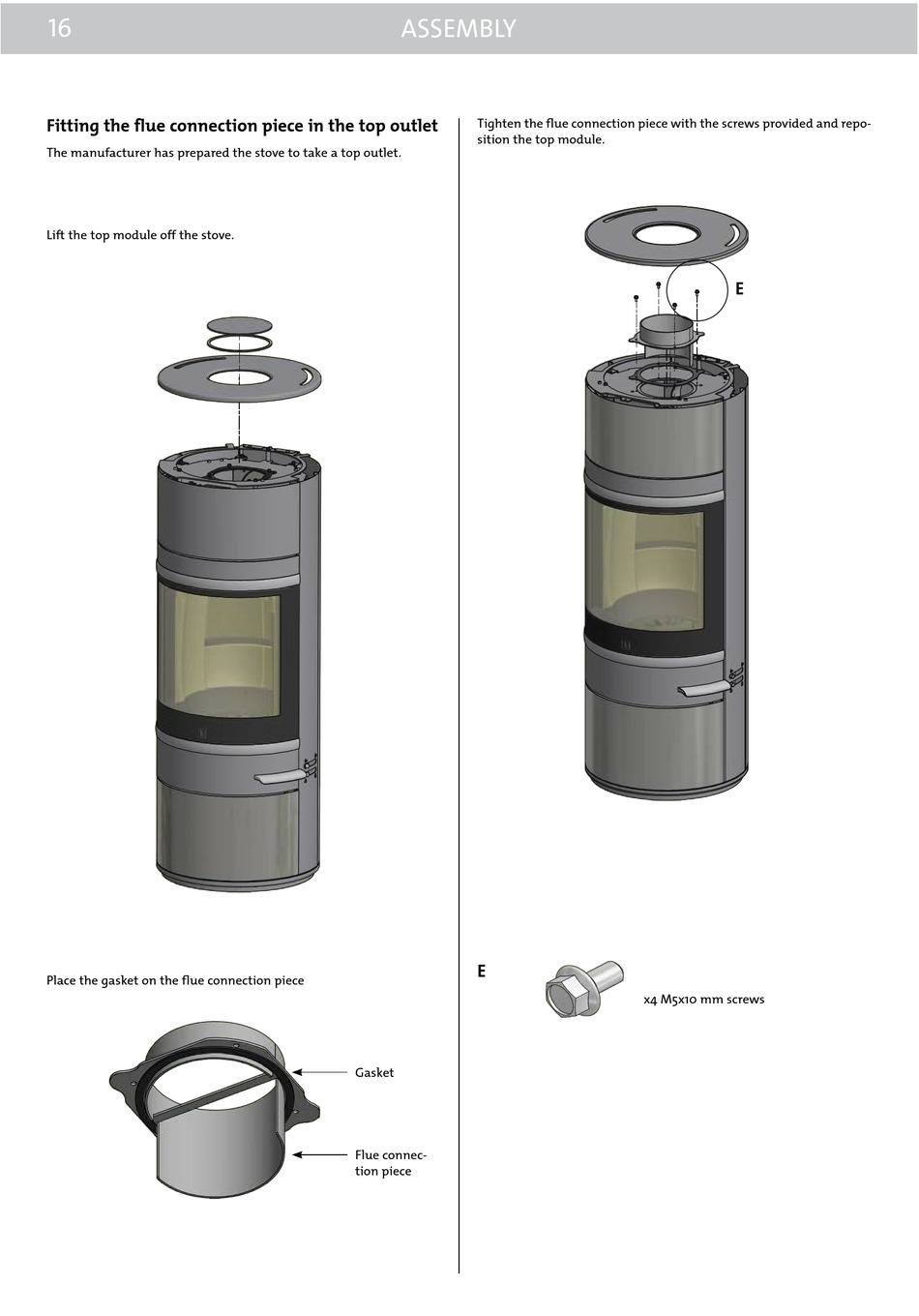

Fitting the flue connection piece in the top outlet

The manufacturer has prepared the stove to take a top outlet.
Lift the top module off the stove.
Place the gasket on the flue connection piece
Afmontage topplade
EMNE:
AREAL:
ASSEMBLY
Scan 83
NAVN:
MATERIALE:
DIMENSION:
C:\Working Folder\Designs\Scan 83\90583026.idw
STI:
N/A
31-01-2013
VÆGT: DATO:
Gasket
N/A
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
Flue connec-
tion piece
Tighten the flue connection piece with the screws provided and repo-
sition the top module.
