Height Adjustment Of Stove - SCAN 83-8 Assembly And Instruction Manual

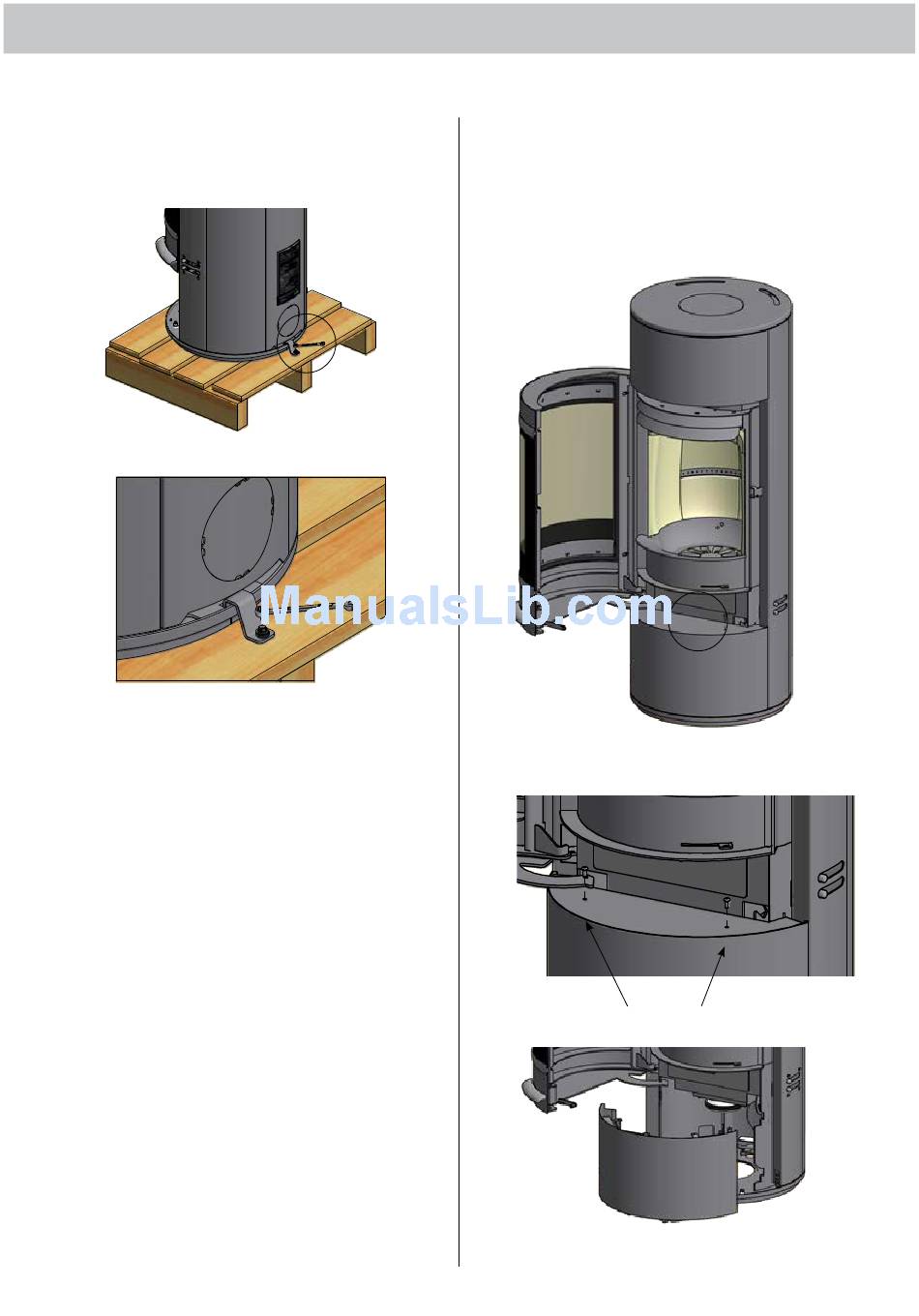

Remove the screws and fittings for securing the stove to the pallet.
B
Afmontage ovn fra palle
Scan 83
EMNE:
C:\Working Folder\Designs\Scan 83\90583032.idw
B
N/A
VÆGT: DATO:
N/A
AREAL: Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
ASSEMBLY

Height adjustment of stove

The Scan 83 Series has four adjustment screws under the stove. Use
the adjustment screws to get the stove to stand straight and level.
To adjust the adjustment screws, see the illustrations below.
If you are using a shaped floor plate, you should adjust the stove
upwards to allow the plate to be inserted under the front of the stove.
90583032
TG.NR:
BC
01-03-13
SIGN:
Remove the screws for the cover plate in the base.
C
Lift off the front of the base.
C
Screws to be removed
11
