9-8 CK20

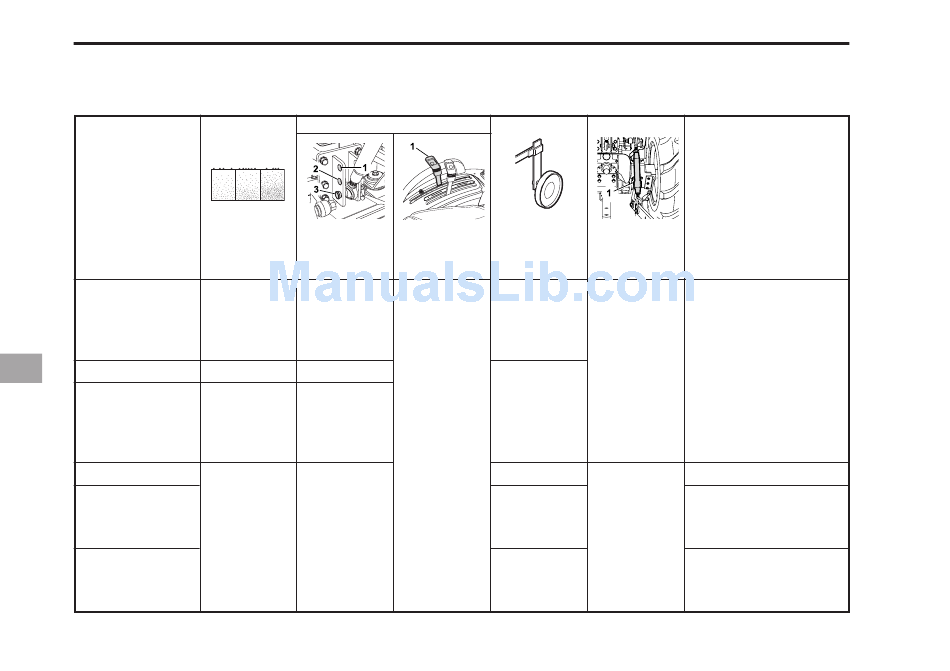

HYDRAULIC CONTROL UNIT USE REFERENCE CHART

In order to handle the hydraulics properly, the operator must be familiar with the following. Though this information may not be
applicable to all types of implements and soil conditions, it is useful for general conditions.
Implement
196O909A
Soil
condition
Light soil
Moldboard plow
Medium soil
Heavy soil
-
Disc plow
Harrow
-
(spike, spring
tooth, disc type)
Webber, rider...
Earthmover, Digger,
scraper, manure
fork, rear carrier....
-
Mower (mid-and
rear-mount type
Hayrake,tedder....
with draft control
196O910A
196O911A
Top link
Position
mounting holes
control lever
1 or 2
2 or 3
3
2 or 3
2 or 3
Position
control
-
196O912A
196O913A
Gauge wheel
Turn buckle
-
Loose
YES/NO
-
YES/NO
Tighten
-
Remarks
Adjust the Turn buckle so
that the implement can
move 5 to 6 cm (2.0 to 2.4 in.)
laterally.
Turn buckle should be
tight enough to prevent
excessive implement
movement when imple-
ment is in raised position.
-
With implements with
gauge wheels, lower the
position control lever all
the way.
-
