- Page 1 Issue:A Description: ROBINHOOD TILTERHOOD RANGEHOOD Model Numbers: RTA3CI6WH Model pictured: RTA3CI6WH...
-
Page 2: Pre-Installation

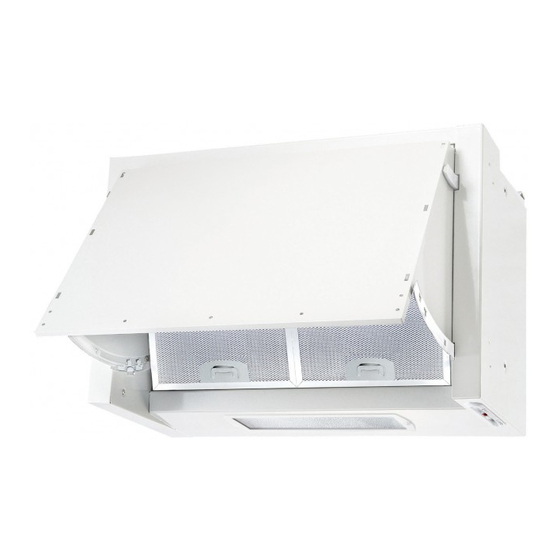

Model may vary slightly from images pictured Ducting outlet suitable for 125mm Ducting Pre-installation Thank you for purchasing a quality Robinhood rangehood. Robinhood has a high standard of quality control and every rangehood is tested and approved before it leaves the factory. Important: Please read the entire instructions before installing the rangehood. -
Page 3: Ducting Options
Some authorities require rangehoods to be vented outside. Ducted models should comply with this requirement in every respect. Please note that this chart is designed as a guide. Please consult Robinhood customer services if unsure. For NZ phone 0800 760 667 or www.robinhood.co.nz. For AUS phone 1800 648 556 or www.robinhood.com.au. -
Page 4: Installation Position
Pre-Installation - continued Installation position When installing the rangehood, the lower edge of the unit must be a minimum of 600mm (650mm for gas cooker) above the cooking range. The recommended position for the hood is 650mm above the hotplates. Pictured: Minimum height from the hob surface to the underside face of the rangehood is: 600mm for electric hob, 650mm for gas hob Notes: If the instructions for the gas hob specify a greater distance, this has to be taken into account. -
Page 5: Installation
Installation Mounting the Rangehood IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE INSTALLING YOUR RANGEHOOD WHETHER TO USE IT IN EXTRACTION MODE OR RECIRCULATION MODE. We recommend that at least two people install this hood. Your rangehood should only be fitted to a wall and secured between two cupboards. IMPORTANT: YOUR RANGEHOOD SHOULD NOT BE CONNECTED TO YOUR MAINS SUPPLY UNTIL THE INSTALLATION PROCESS HAS BEEN COMPLETED. - Page 6 Some adjustment is provided within the extractor mounting brackets. Use screw (E) to adjust the front to back alignment of the rangehood. Use screw (F) to adjust the height alignment of the rangehood. Once you have finished adjusting the position of the rangehood, fully tighten all of the screws. If there is a gap between the rear of the rangehood and the rear wall, if you wish you can install a spacer.
-
Page 7: Cleaning And Maintenance
Operating instructions Controls Light The light can be operated independently by sliding the light switch on/off despite the working status of the fan. Please refer to the icon on switch panel. The fan is operated by sliding the power switch on. It can be run at three different speeds (Speed 1 / Speed 2 / Speed 3) depending on the cooking requirements. -
Page 8: Charcoal Filters
Parts and Accessories list Charcoal filter 2618 Incandescent bulb E14 230-240V 40W 110023 Please call the Robinhood Customer Service Centre if you have any questions, on NZ 0800 760 667 or AUS 1800 648 556... -
Page 9: Important Safety Information
Product approvals and ratings Product approval number SAA100363EA Product rating 320W 220-240V 50Hz Electric approval AS/NZS AS/NZS 60335.2.31.2004 EN55014-1:2006, EMC AS/NZS EN61000-3-2:2006 Performance tested IEC61591 Important safety information This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 10 Robinhood or Parbury will not be liable for consequential or indirect loss or damage whatsoever and however arising out of or in any of its approved suppliers, employees or agents.
