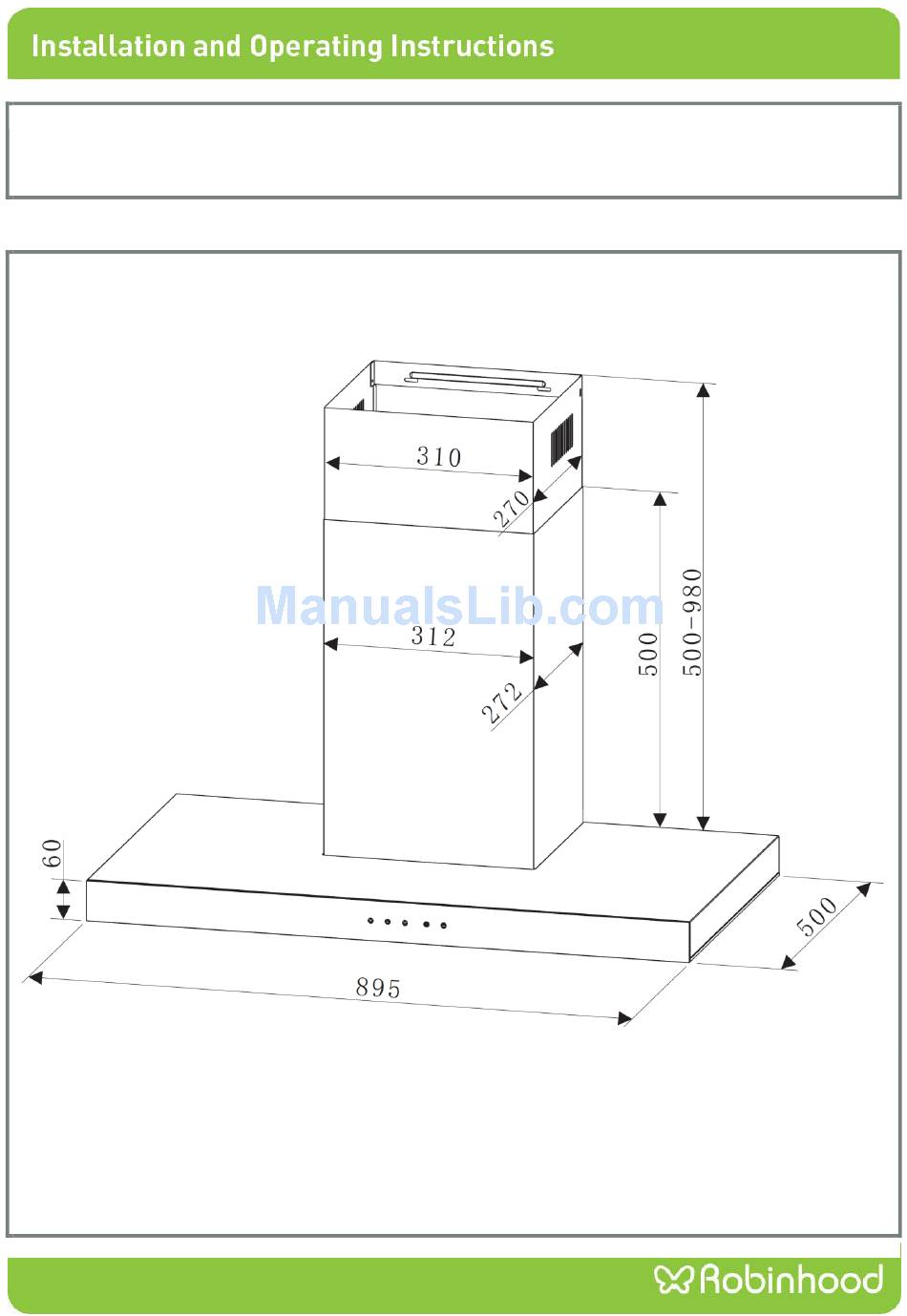

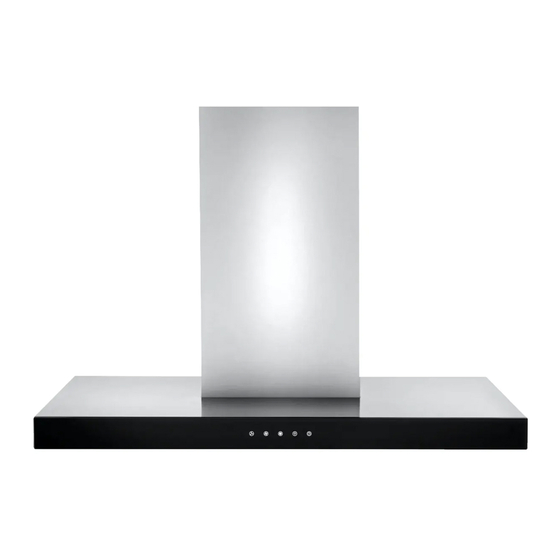

- Page 1 RWJ3CL9BK Issue: 1 Description: ROBINHOOD WALL CANOPY Model Numbers: RWJ3CL9BK Model pictured: RWJ3CL9BK All dimensions in mm Model may vary slightly from images pictured...
-
Page 2: Pre-Installation
Pre-installation Thank you for purchasing a quality Robinhood range hood. Robinhood has a high standard of quality control and every range hood is tested and approved before it leaves the factory. Important: Please read the entire instructions before installing the rangehood. -
Page 3: Ducting Options
Please note that this chart is designed as a guide. Please consult Robinhood customer services if unsure. For NZ phone (09) 415 6000 or www.robinhood.co.nz. For AUS phone 1800 648 556 or www.robinhood.com.au. -
Page 4: Installation
Installation Mounting to a stud is recommended. However, if fitted to other wall linings (plasterboard, concrete etc) suitable fixings will be required. Before drilling any holes check that the wall and ceiling are clear of any electrical cables, pipes etc. It is recommended that at least 2 people are used to install this appliance. Rear wall Wall stud... -
Page 5: Recirculation Mode
Installation - continued Drill the holes for the two chimney brackets and the two safety holes. Place wall plugs in each hole. Fix the upper chimney bracket to the wall using two ST4x40mm screws. Place the appliance back on the fixing bracket and fasten in place using two ST4x30mm safety screws. -
Page 6: Fan Speed
Operating instructions Before operating the hood, make sure that it has been installed by a suitably qualified person, as per the information contained in installation instructions. Controls LOW SPEED MID SPEED HIGH SPEED LIGHTS ON/OFF TIMER Power Once the appliance is connected to the power source, the backlight of the control panel will turn on for 5 seconds, and then turn off, leaving the appliance in stand-by mode. -
Page 7: Cleaning And Maintenance
Cleaning and maintenance Fault Cause Solution The LED damaged Lights do not work, but fan LED wiring connection poor Contact Service Department works LED switch damage Motor bearings damage Contact Service Department Lights work, but fan does Motor burn out not work Motor control switch damage Plug contact outlet bad... -
Page 8: Important Safety Information
Product approvals and ratings Appliance: 272W 220-240V ~50Hz Product rating LED: 1x7W Electric approval AS/NZS 60335.2.31:2013 EMC AS/NZS CISPR 14.1:2010 Performance tested IEC61591 Important safety information All electrical work must be done by a registered electrician in accordance with local and national electrical codes as applicable. - Page 9 The following conditions apply in respect of the warranty given in this certificate: 1. Monaco Corporation Limited (“Monaco”) warrants the following Robinhood products against manufacturing defects and faulty materials, under normal use and subject to the exclusions in this certificate, for a period of: Rangehood, Ovens, Cooktops, Dishwashers - 24 months from date of original purchase for domestic use.
- Page 10 The product was used outdoors. 2. All Robinhood Rangehoods are suitable for indoor use only and not suitable over BBQs or charcoal cookers designed for outdoor use. 3. In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or are due to: exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone;...
