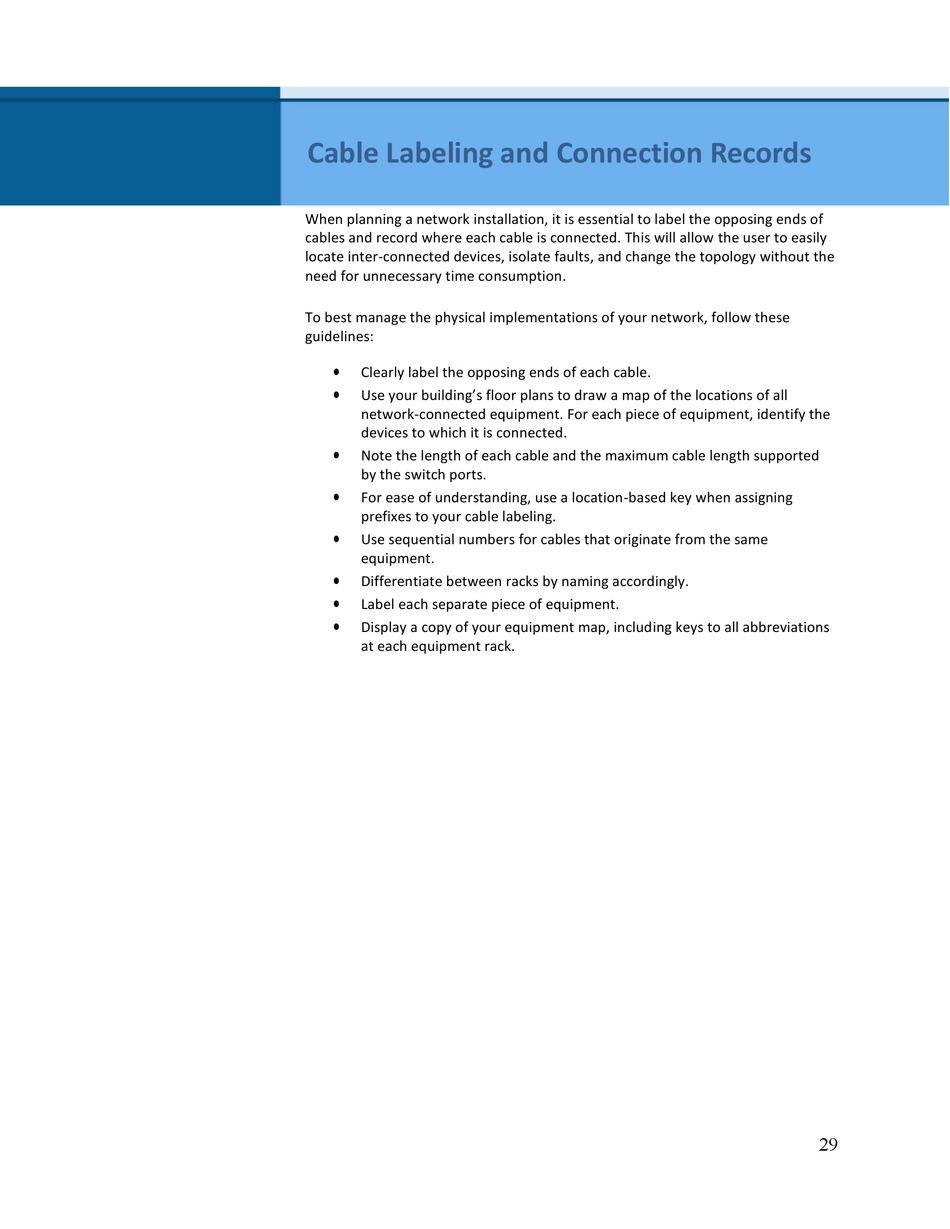

Cable Labeling and Connection Records

When planning a network installation, it is essential to label the opposing ends of
cables and record where each cable is connected. This will allow the user to easily
locate inter-connected devices, isolate faults, and change the topology without the
need for unnecessary time consumption.
To best manage the physical implementations of your network, follow these
guidelines:

Clearly label the opposing ends of each cable.

Use your building's floor plans to draw a map of the locations of all
network-connected equipment. For each piece of equipment, identify the
devices to which it is connected.

Note the length of each cable and the maximum cable length supported
by the switch ports.

For ease of understanding, use a location-based key when assigning
prefixes to your cable labeling.

Use sequential numbers for cables that originate from the same
equipment.

Differentiate between racks by naming accordingly.

Label each separate piece of equipment.

Display a copy of your equipment map, including keys to all abbreviations
at each equipment rack.
