Vi3105 5-port 60W PoE Powered PoE Switch Installation Manual

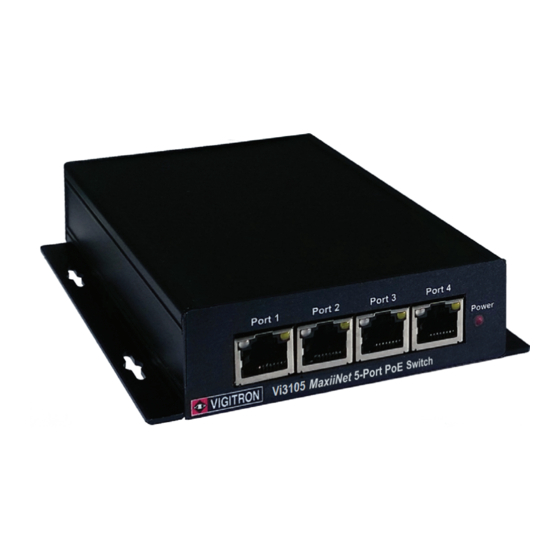

Vigitron's MaxiiNet™ Vi3105 fixed managed 5-port PoE switch brings new
performance standards to the growing need for high speed transmission of
high speed Ethernet.
The Vi3105 can be powered by PoE sources up to 74W over extended UTP
uplink or locally by the Vi1120 120W power supply to provide up to 37W to
each port or up to 74W form two combined ports.
With an operating temperature range of 0°C to 70°C, the Vi3105 is the
perfect solution for data and power transmission for aplications such as
warehouses, parking lots, campuses, casinos. The Vi3105 is MegaPixel
Certified (MPC™), type tested to network packet performance standards to
assure you an error free and quality operation. Fixed managed L2 functions
includes 802.1p QoS, support of 2k MAC addressing, learning, aging, and a
non-blocking switch fabric.
Installation cost savings, proven performance, and major camera manufac-
turer compatibility all go into making Vigitron's MaxiiNet™ Vi3105 an ideal
solution for IP video and PoE transmission.
Important Safety Warning
- Read and keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with a dry cloth.
- Install in accordance with the manufacturer's instructions.
- This installation should be made by a qualified service person and should conform to all local
codes.
- DO NOT bundle UTP or Coax signals in the same conduit as high-voltage wiring.
- To reduce the risk of fire or electrical shock, do not expose these products to rain, moisture,
dripping or splashing.
- No objects filled with liquids, such as vases, shall be placed on Vigitron equipment.
- DO NOT install the unit in a place where the operating ambient temperature exceeds 70°C or
is below - 10°C.
- Make sure that the external power supply output voltage is in the recommended range.
- Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus that produce heat.
- Protect the power cord from being walked on or pinched particularly at power source,
convenience receptacles, and the point where they exit from the apparatus.
- Only use attachments/accessories specified by the manufacturer.
- Unplug this apparatus during lightning storms or when unused for long periods of time.
- Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as when a power supply cord or plug is damaged, liquid
has been spilled, objects have fallen inside the apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally, or has been dropped.
- The main plug is used as the disconnect device and shall remain readily operable.
RISK OF ELECTRIC SHOCK
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING! - To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture. This apparatus shall not be exposed to
dripping or splashing and no objects filled with liquids, such as vases shall
be placed on the apparatus.
WARNING! - This apparatus is a Class I product. This product must
be connected to a mains socket outlet thru an AC to DC Power supply.
WARNING! - The mains plug is used as the disconnect device and
shall remain readily operable.
V i3 1 0 5
CAUTION
DO NOT OPEN
The Smart Choice for Transmission Solutions

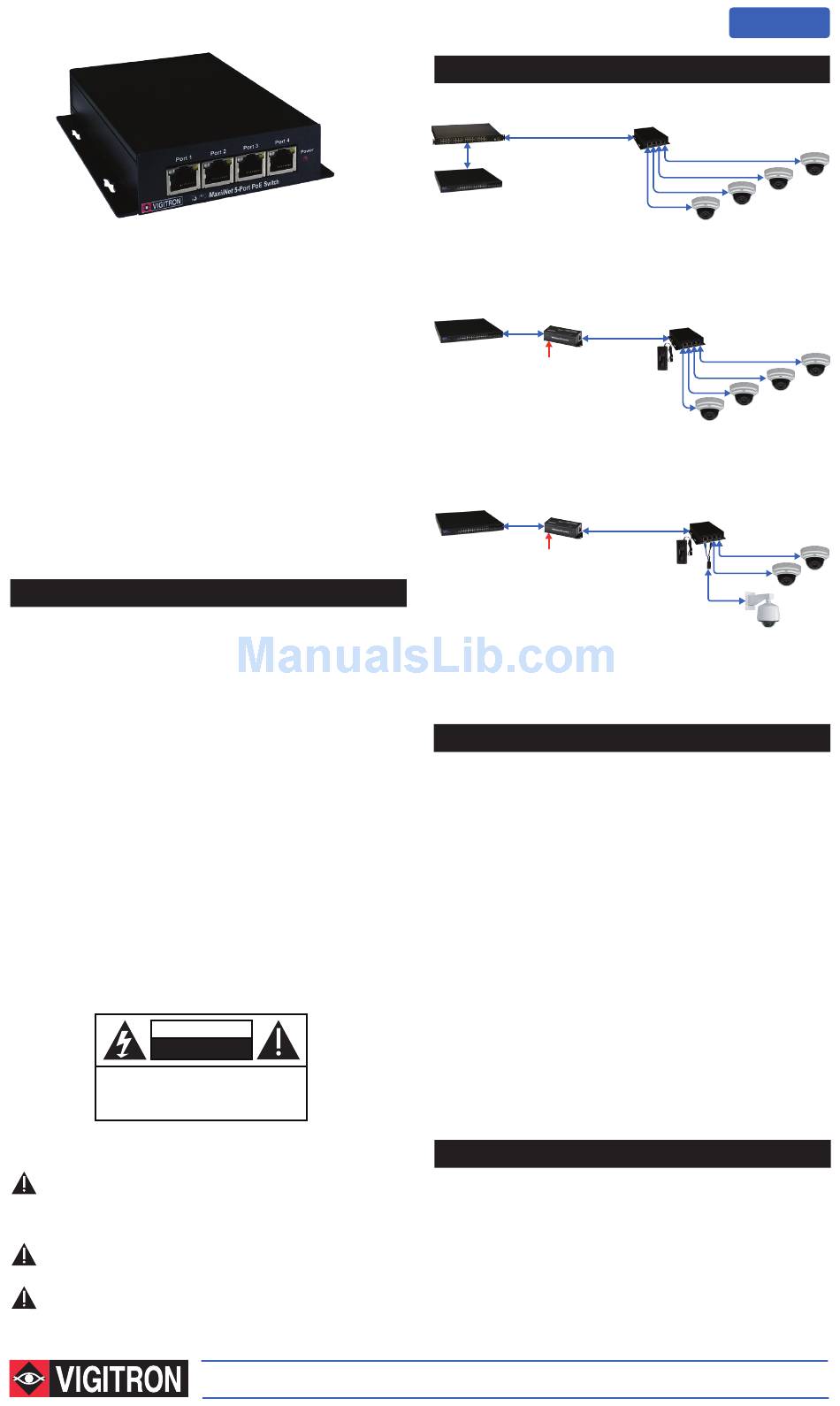

Application Drawings
Vi2516
Data + 60W PoE
Extended Cat5
Data
Network Switch
The Vi3105 can receive data and 60W PoE power over extended distance UTP up to 2,000 ft.
at 100Mbps and power up to 4 cameras.
Network Switch
Vi2301A
Data
Cat5
12VDC
The Vi3105 can receive data over extended distance UTP up to 2,000 ft. at 100Mbps and power
4 PoE cameras using local power supplies.
Network Switch
Vi2301A
Data
Cat5
12VDC
The Vi3105 can receive data over extended distance UTP up to 2,000 ft. at 100Mbps and power
60W PoE cameras using the Vi0015 combiner cable and a local power supply.
IP Camera-end Installation
The Vi3105 can be powered either by a local power supply or High power PoE
provided from the headend.
Extended UTP Uplink w/ Remote PoE:
- Connect the extended Cat5/6 cable coming from the PoE switch or PoE midspan
to the RJ45 connector at rear of Vi3105.
- Set 30W/60W based on the type of the remote PoE source.
Extended UTP Uplink w/ Local Power Supply:
- Connect the extended Cat5/6 cable coming from the PoE switch or PoE midspan
to the RJ45 connector at rear of Vi3105.
- Connect the Vi1120 power supply to the power connector of the Vi3105.
Connect IP/PoE devices to the four ports of the Vi3105's front RJ45 connectors
a standard Cat5/6 cable of maximum 100m in length.
using
PoE power is allocated based on the required port power up to 37W starting with
Port 1 having the highest priority. Once the total sum of the PoE power is allocated
no more power will be available to remaining ports.
Each port will be able to provide up to 37W. If more power needed for approved IP
devices use the Vi0015 combination cable to combine two ports. Starting with ports
1 and 2, connect the IP device to the Ethernet port of the Vi0015 cable.
PoE Switch/PoE Midspan-end Installation
The high power PoE to the Vi3105 can be provided either by a Vi25xx extended PoE
Midspan or a High-power PoE midspan.
Using Vi25xx Exteded High-power Midspans:
- Connect the extended cable coming from the Vi3105 Uplink port to one of
the 60W extended ports of the Vi25xx.
- Connect the standard corresponding port of the Vi25xx to the network switch using
a standard Cat5/6 cable of maximum 100m in length.
MaxiiNet
PoE Switches
Vi3105
Data & PoE
PoE Cameras
Vi3105
Data
Extended Cat5
Data & PoE UTP
Vi1120
PoE Cameras
Vi3105
Data Data
Extended Cat5 Extended Cat5
Data & PoE
Vi1120
Data &
60W PoE
60W PTZ Dome
