Port and System
Status LEDs
Power Supply
Socket
The Vi3010 has a display panel for system and port indications that simplify
installation and network troubleshooting. The LEDs are located on left hand side of
the front panel for easy viewing. Details are shown below and described in the
following tables.

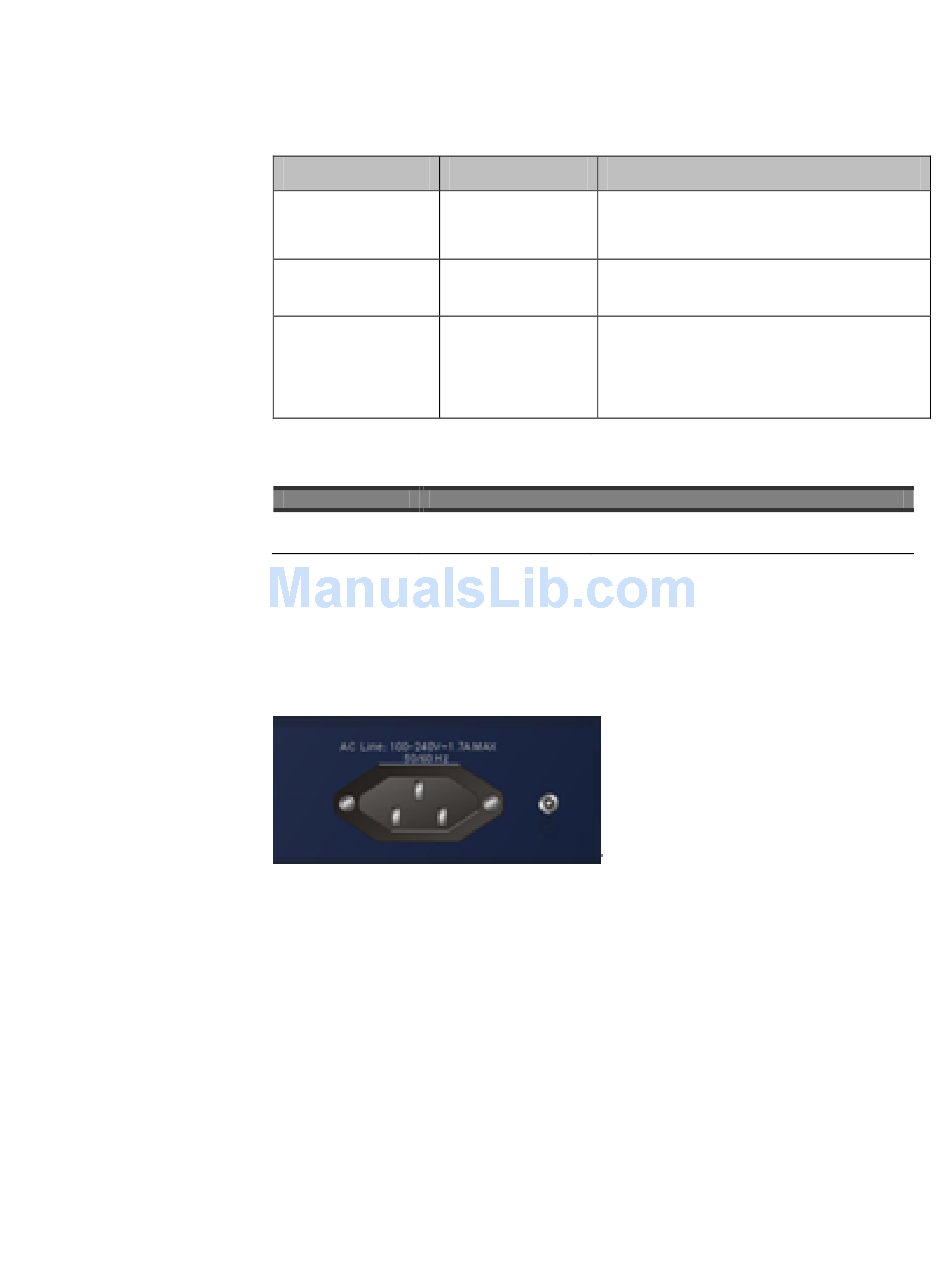

LED Conditions
TP (Link/ACT) Green
PoE Green
SFP (Link/ACT) Green/Amber
Table 2: Port Status LEDs
SYSTEM LED Condition
Green
Power
OFF
Table 3: System Status LED
There is a power socket in the rear panel of the switch. For normal power supply,
the Vi3010 8/10/12-Port series switch has a standard power socket for AC power
cord.
Figure 3: AC Power Supply Socket
Status
Green when the TP link is good.
Blinks when any traffic is present.
Green when the port is delivering PoE
power.
Green when the SFP link is 1000Mp/s.
Amber when the SFP link is 100Mb/s.
Blinks when any traffic is present.
Status
Lit when power is coming up
